1989 Kawasaki Eliminator Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 1989 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

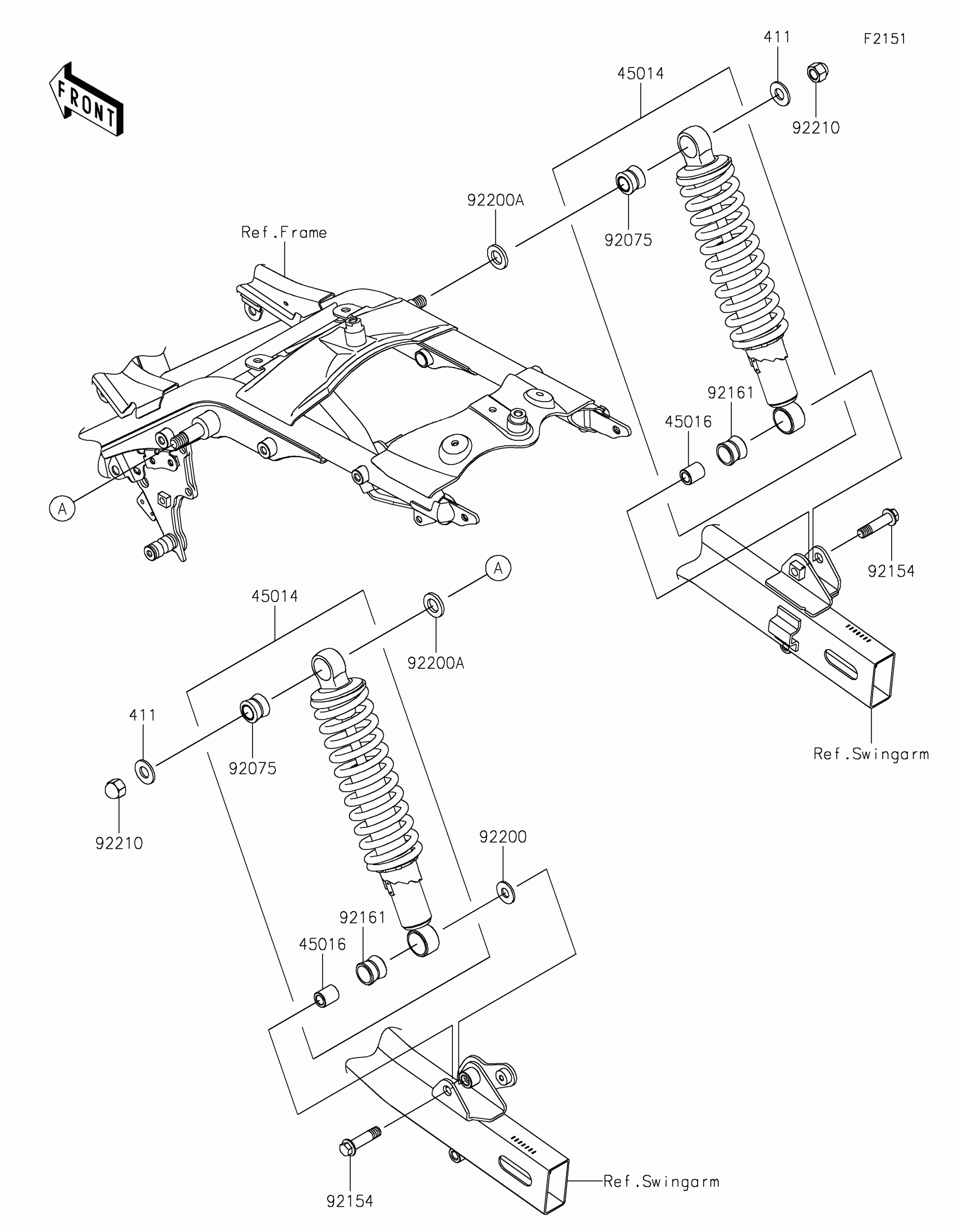

1989 Kawasaki Eliminator Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

45014

SHOCKABSORBER

45014-1378

1

$361.84

In stock

92015

NUT,CAP,10MM

92020-003

1

$5.16

In stock

92022

WASHER,SPRING,10MM

92022-1540

1

$3.27

In stock

92022A

WASHER,10.5X26X2.3

92022-246

1
Out of stock

92027

1

$9.58

In stock

92075

1

$14.14

In stock

92075A

DAMPER,SHOCKABSORBER

45017-015

1
Out of stock

160

BOLT-FINE-WS

160N1040

1

$5.00

In stock
