1986 Kawasaki Eliminator Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1986 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

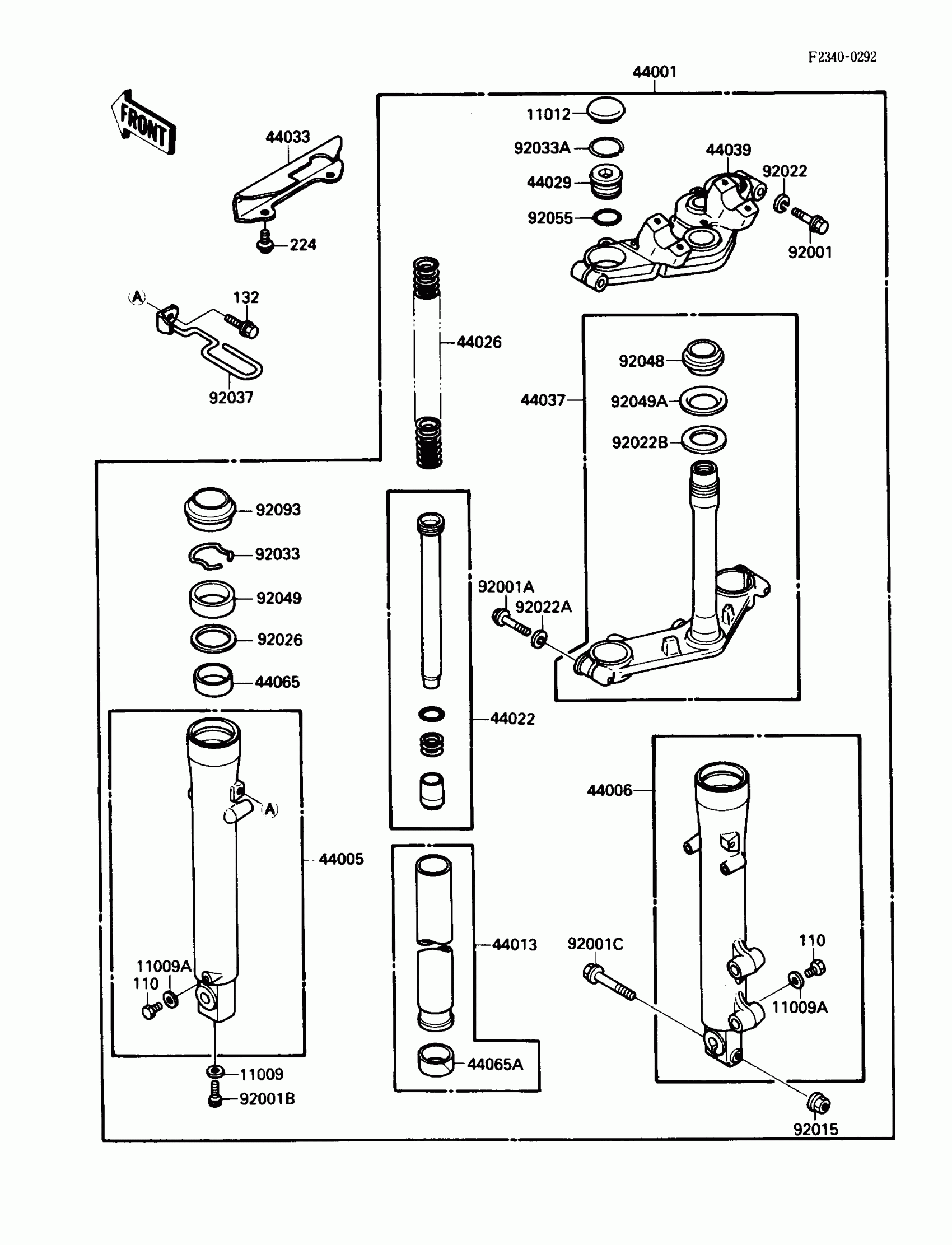

1986 Kawasaki Eliminator Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,FORK DRAIN PLUG

44045-046

1
Out of stock

11009A

1

$4.88

In stock

11012

CAP,FORK TOP

11012-1473

1
Out of stock

16126

VALVE,AIR

16126-1105

1

$40.86

In stock

44001A

FORK-FRONT

44001-1640

1

$2,146.34

In stock

44005

1

$462.84

In stock

44006

1

$462.84

In stock

44013

PIPE-FORK INNER

44013-1232

1
Out of stock

44022

CYLINDER-FORK

44022-1182

1

$82.73

In stock

44026

1

$58.00

In stock

44029

SEAT-FORK SPRING

44029-1120

1

$50.21

In stock

44037

HOLDER-FORK UNDER

44037-1183

1

$341.79

In stock

44039A

HOLDER-FORK UPPER

44039-1129

1

$280.80

In stock

44065

BUSHING-FRONT FORK

44065-1070

1

$24.20

In stock

44065A

1

$23.47

In stock

56040

1

$7.51

In stock

92001

BOLT,8X40

92001-1063

1

$7.64

In stock

92001A

BOLT,FORK CYLINDER

92001-1464

1

$4.93

In stock

92001B

BOLT,FLANGED,8X50

92001-1486

1

$9.11

In stock

92002

BOLT

92002-1603

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1055

1
Out of stock

92022

WASHER,SPRING,8MM

92022-1703

1

$2.75

In stock

92026

SPACER,FORK

92026-1254

1
Out of stock

92033

RING-SNAP,FORK

92033-1200

1

$5.25

In stock

92033A

RING-SNAP

92033-1201

1

$4.58

In stock

92049

SEAL-OIL,FORK

92049-1230

1
Out of stock

92055

RING-O,FORK SPRING SEAT

92055-1309

1
Out of stock

92093

SEAL,FORK

92093-1197

1

$22.56

In stock

220

1

$1.46

In stock
