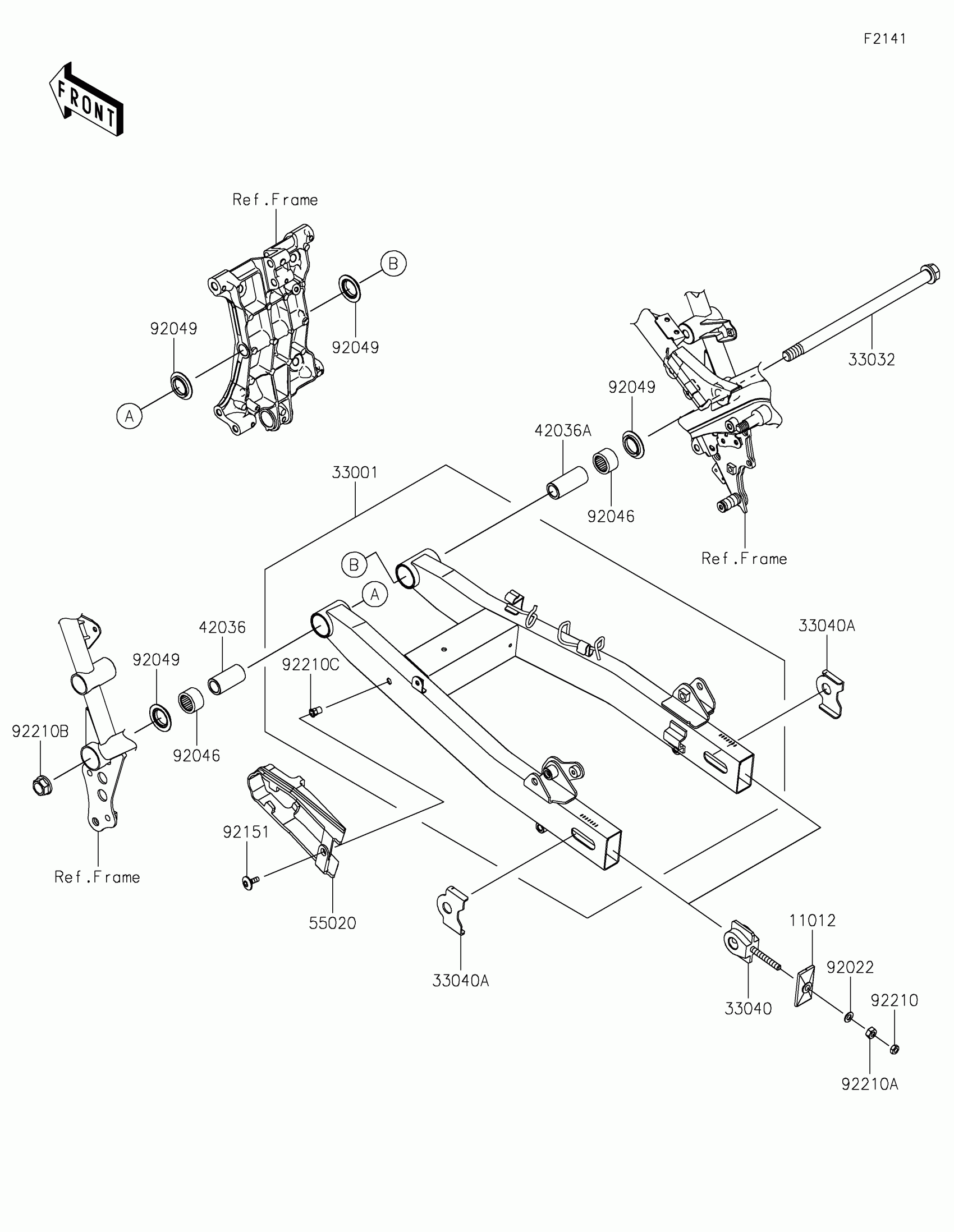

Kawasaki Eliminator SE ABS Swingarm Diagram

Description

Price

11012

CAP,CHAIN ADJUSTER,F.S.BLACK

11012-1871-18R

$22.05

33001

ARM-COMP-SWING,F.S.BLACK

33001-0751-18R

$489.28

33032

SHAFT-SWING ARM,17X285

33032-0056

$82.75

33040

ADJUSTER-CHAIN

33040-0089

$26.83

33040A

ADJUSTER-CHAIN

33040-0109

Unavailable

42036

SLEEVE

42036-0805

$30.70

42036A

SLEEVE

42036-0806

$31.18

55020

GUARD,CHAIN

55020-2199

$9.67

92022

WASHER,8.5X16X1.2

92022-1582

$0.81

92046

BEARING-NEEDLE,BM2520

92046-1228

$19.92

92049

SEAL-OIL,MF025N1

92049-1426

$9.92

92151

BOLT,SOCKET,6X18

92151-1149

$5.86

92210

NUT,8MM,5X12

92210-1588

$0.76

92210A

NUT,8MM,6.5X14

92210-1589

$1.27

92210B

NUT,16MM

92210-1590

Unavailable

92210C

NUT,POP,6MM,L=15

92210-1897

$0.57
