2025 Kawasaki Eliminator Se ABS Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2025 Kawasaki Eliminator Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

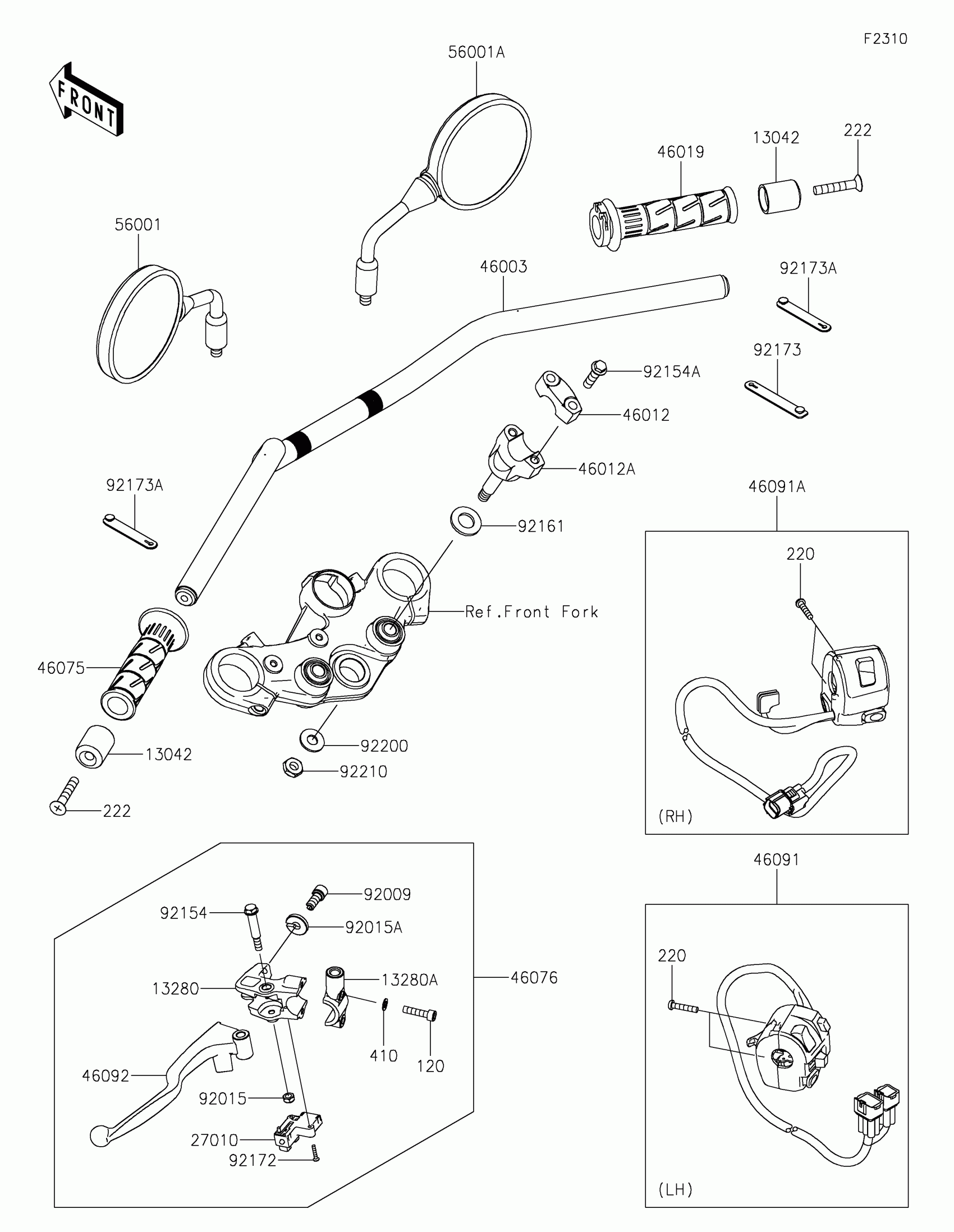

2025 Kawasaki Eliminator Se ABS Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT,HANDLE

13042-0032

1

$26.18

In stock

13280

HOLDER,LEVER

13280-0929

1

$40.81

In stock

13280A

HOLDER,MIRROR

13280-0930

1

$19.59

In stock

27010

SWITCH,CLUTCH

27010-0729

1

$30.28

In stock

46003

HANDLE,BLACK

46003-0825-10

1

$138.06

In stock

46012

1

$22.65

In stock

46012A

1

$39.46

In stock

46019

GRIP-ASSY,THROTTLE

46019-0060

1

$29.71

In stock

46075

GRIP,HANDLE,LH

46075-0564

1

$18.54

In stock

46076

1

$59.59

In stock

46091

1

$163.74

In stock

46091A

1

$146.72

In stock

46092

LEVER-GRIP,CLUTCH

46092-0562

1

$24.24

In stock

56001

MIRROR-ASSY,LH

56001-0451

1

$92.30

In stock

56001A

MIRROR-ASSY,RH

56001-0452

1

$92.30

In stock

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

1
Out of stock

92154

BOLT,FLANGED,6X44

92154-2331

1

$6.04

In stock

92154A

BOLT,FLANGED,8X30

92154-3840

1

$2.41

In stock

92161

DAMPER

92161-0037

1

$1.59

In stock

92172

SCREW,3X16

92172-0183

1

$1.81

In stock

92173

CLAMP

92173-2194

1

$1.56

In stock

92173A

CLAMP

92173-2199

1

$1.32

In stock

92200

WASHER,10.5X24X2

92200-1844

1
Out of stock

92210

NUT,LOCK,10MM

92210-0784

1
Out of stock

120

BOLT-SOCKET,6X25

120CB0625

1

$2.10

In stock

220

1

$2.92

In stock

222

1

$1.63

In stock

410

1

$0.80

In stock
