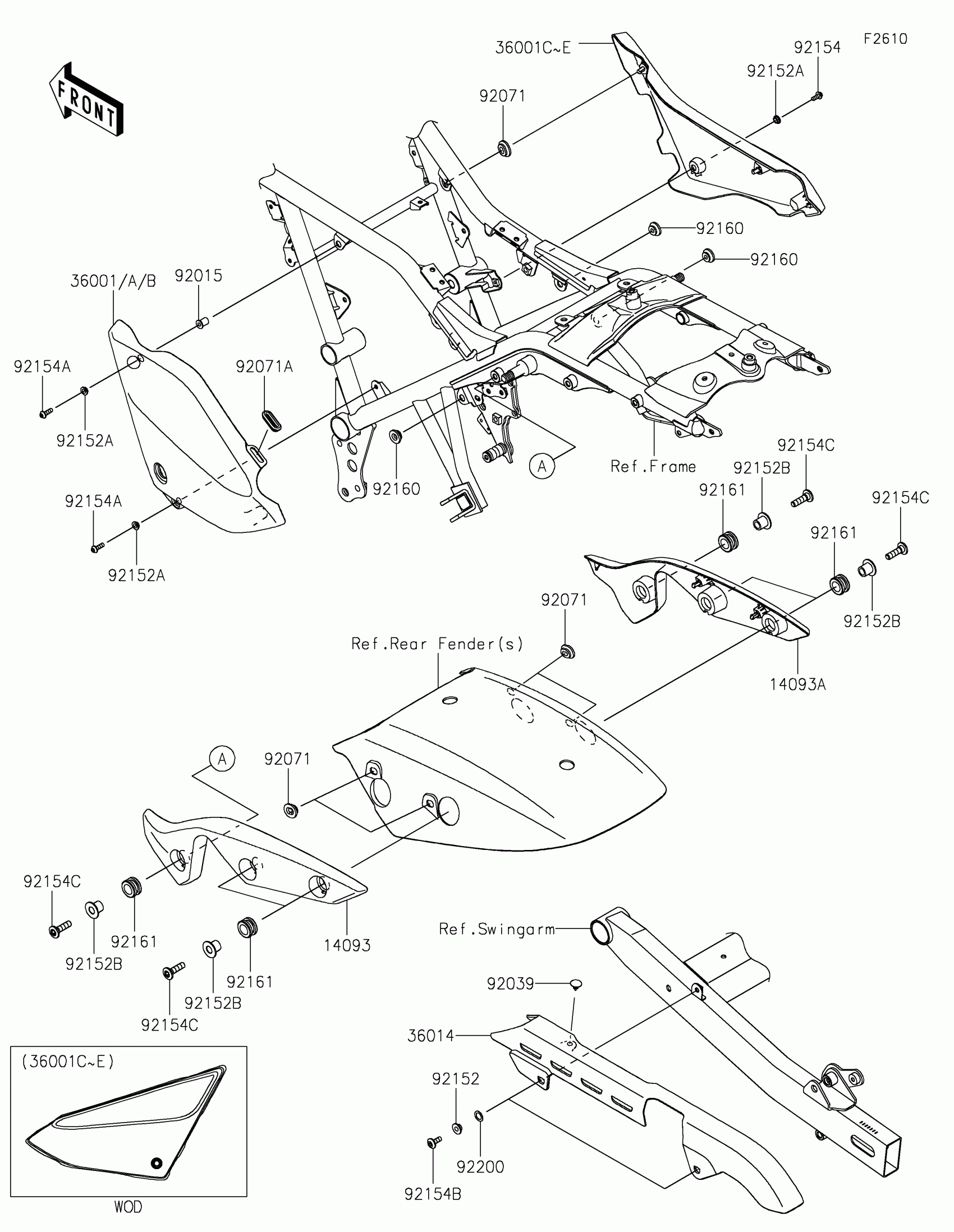

Kawasaki Eliminator SE ABS Side Covers/Chain Cover Diagram

Description

Price

14093

COVER,TAIL,LH,F.S.BLACK

14093-1301-18T

$77.83

14093A

COVER,TAIL,RH,F.S.BLACK

14093-1302-18T

$78.20

36001B

COVER-SIDE,LH,EBONY

36001-0765-H8

$83.53

36001E

COVER-SIDE,RH,EBONY

36001-0766-H8

$88.85

36014

CASE-CHAIN

36014-0577

$18.08

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0722

$1.63

92071

GROMMET,20X24X7.5

92071-0766

$1.41

92071A

GROMMET

92071-1187

$4.96

92152

COLLAR,6.5X10X5.9

92152-2486

$3.44

92152A

COLLAR

92152-2903

$3.86

92152B

COLLAR

92152-2950

$11.25

92154

BOLT,SOCKET,5X12

92154-1421

$0.95

92154A

BOLT,SOCKET,5X16

92154-4294

$2.75

92154B

BOLT,SOCKET,6X16

92154-4370

$1.82

92154C

BOLT,8X30

92154-7174

$2.51

92160

DAMPER

92160-1613

$3.74

92161

DAMPER,15.5X26X14.5

92161-1361

$8.46

92200

WASHER,10.4X15.9X0.5

92200-0157

$2.15
