2025 Kawasaki Eliminator Se ABS Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 2025 Kawasaki Eliminator Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

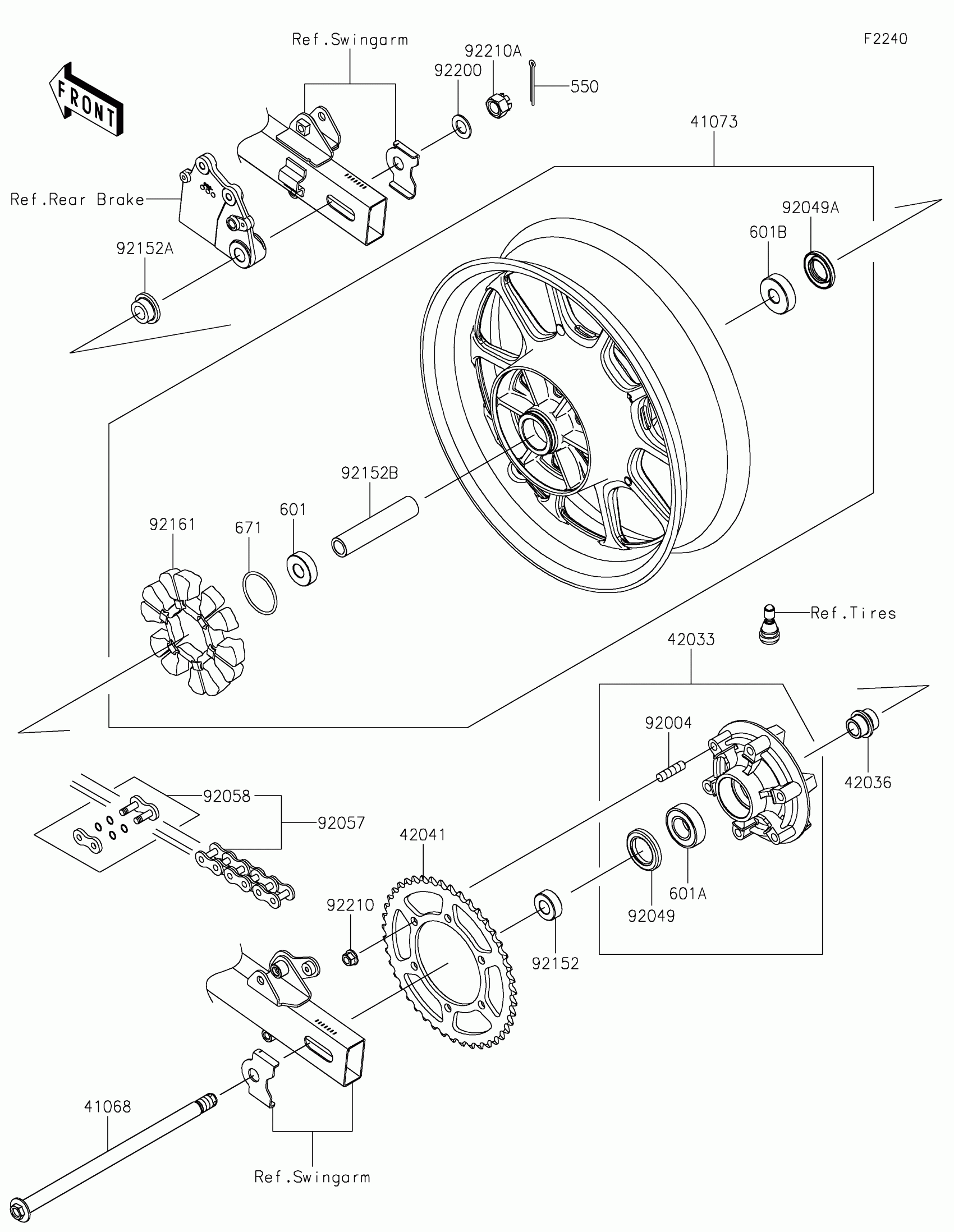

2025 Kawasaki Eliminator Se ABS Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,RR

41068-0644

1
Out of stock

41073

WHEEL-ASSY,RR,G.BLACK

41073-0840-QT

1
Out of stock

42033

COUPLING-ASSY,RR HUB

42033-0574

1
Out of stock

42036

SLEEVE,RR HUB,L=30

42036-1055

1
Out of stock

42041

SPROCKET-HUB,43T

42041-0193

1
Out of stock

92004

STUD,10X19

92004-0048

1
Out of stock

92049

SEAL-OIL,35X52X7

92049-0730

1
Out of stock

92049A

SEAL-OIL,27X47X7

92049-0802

1
Out of stock

92057

CHAIN,DRIVE,RK520X112L

92057-0923

1
Out of stock

92058

JOINT-CHAIN,DRIVE

92058-0090

1
Out of stock

92152

COLLAR,17X35X13

92152-0843

1
Out of stock

92152A

COLLAR,17X28(38)X15

92152-0844

1
Out of stock

92152B

COLLAR,17.2X25X121

92152-2387

1
Out of stock

92161

DAMPER,RR HUB SHOCK

92161-0700

1
Out of stock

92200

WASHER,17.3X30X2

92200-1916

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

92210A

NUT,CASTLE,16X19

92210-1585

1
Out of stock

550

PIN-COTTER,4.0X35

550AA4035

1
Out of stock

601

BEARING-BALL,#6203UUC3

601B6203UU

1
Out of stock

601A

BEARING-BALL,#6205G

601B6205G

1
Out of stock

601B

BEARING-BALL,6303LLUC3/2ASU68

601B6303UU

1
Out of stock

671

O RING

671B2550

1
Out of stock
