2025 Kawasaki Eliminator Se ABS Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2025 Kawasaki Eliminator Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

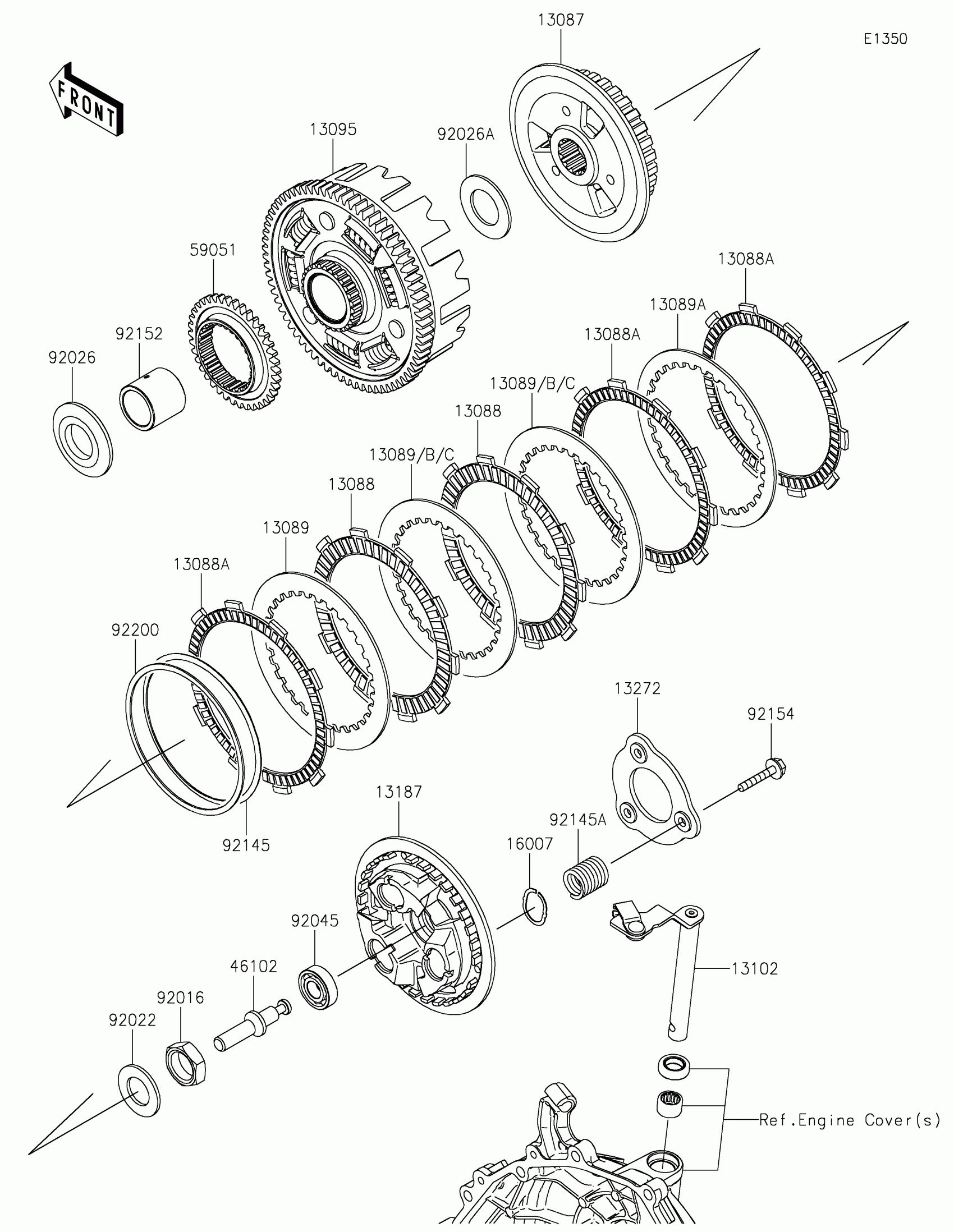

2025 Kawasaki Eliminator Se ABS Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-0585

1

$122.16

In stock

13088

PLATE-FRICTION

13088-0592

1

$12.59

In stock

13088A

PLATE-FRICTION

13088-0630

1

$12.93

In stock

13089

PLATE-CLUTCH,T=2.0

13089-0041

1

$8.54

In stock

13089A

PLATE-CLUTCH,T=2.0

13089-0042

1

$9.40

In stock

13089B

PLATE-CLUTCH,T=1.6

13089-0043

—

$8.54

In stock

13089C

PLATE-CLUTCH,T=2.3

13089-0044

—

$8.54

In stock

13095

HOUSING-COMP-CLUTCH

13095-0618

1

$544.89

In stock

13102

RELEASE-COMP-CLUTCH

13102-0087

1

$54.61

In stock

13187

1

$88.00

In stock

13272

PLATE

13272-2414

1

$18.05

In stock

16007

SEAT-SPRING

16007-0711

1

$3.23

In stock

46102

ROD

46102-0648

1

$30.55

In stock

59051

1

$132.24

In stock

92016

NUT,20MM

92016-028

1

$7.86

In stock

92022

WASHER,20.3X36X2.3

92022-1116

1

$6.82

In stock

92026

SPACER,25X52X5.5

92026-0115

1
Out of stock

92026A

SPACER,25.5X44.5X2

92026-0734

1
Out of stock

92045

BEARING-BALL

92045-0937

1

$13.63

In stock

92145

SPRING,JUDDER

92145-1829

1

$8.25

In stock

92145A

SPRING

92145-2273

1

$6.93

In stock

92152

COLLAR,25X32X29.1

92152-2524

1

$36.98

In stock

92154

BOLT,UPSET,6X30

92154-0997

1

$2.68

In stock

92200

WASHER,99.4X107X1.2

92200-1987

1

$8.32

In stock
