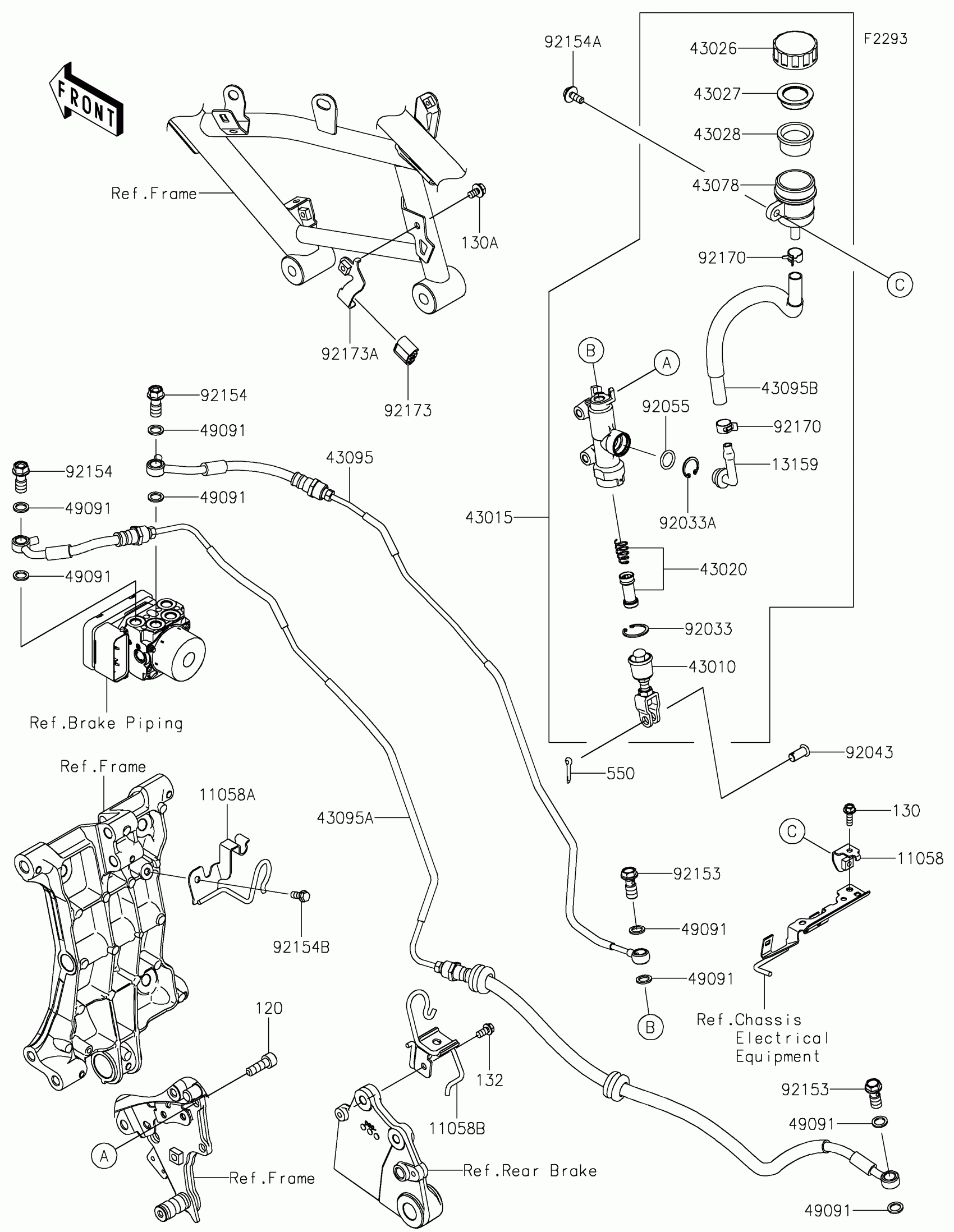

Kawasaki Eliminator SE ABS Rear Master Cylinder Diagram

#

Description
Price

11058

BRACKET,RESERVOIR

11058-0497

$2.19

11058A

BRACKET

11058-0498

$8.41

11058B

BRACKET

11058-0500

$14.56

13159

CONNECTOR

13159-1056

$10.71

43010

ROD-ASSY-BRAKE

43010-0022

$72.46

43015

CYLINDER-ASSY-MASTER,RR

43015-0803

$270.29

43020

PISTON-COMP-BRAKE

43020-1094

$58.51

43026

CAP-BRAKE

43026-0009

$38.22

43027

PLATE-DIAPHRAGM

43027-1053

$4.97

43028

DIAPHRAGM

43028-1065

$17.85

43078

RESERVOIR

43078-0040

$29.54

43095

HOSE-BRAKE,ABS-RR M/CYLINDER

43095-1880

$190.58

43095A

HOSE-BRAKE,ABS-RR CALIPER

43095-1881

$213.39

43095B

HOSE-BRAKE

43095-1893

$13.41

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$5.94

92033A

RING-SNAP,20.5MM

92033-1186

$3.78

92043

PIN

92043-0904

$3.51

92055

RING-O,14.8X2.4

92055-0741

$2.82

92153

BOLT,OIL,L=23

92153-0627

$4.15

92154

BOLT,BANJO,10X22

92154-1138

$7.31

92154A

BOLT,UPSET-WP,6X16

92154-2244

$1.10

92154B

BOLT,6X14

92154-4129

$0.88

92170

CLAMP,HOSE

92170-1091

$3.81

92173

CLAMP,METAL PIPE

92173-0986

$2.19

92173A

CLAMP,ABS PIPE

92173-2583

$3.68

120

BOLT-SOCKET,8X25

120CB0825

$3.57

130

BOLT-FLANGED,5X16

130BA0516

$0.73

130A

BOLT-FLANGED,6X10

130BB0610

$1.77

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49

550

PIN-COTTER,2.0X15

550AA2015

$0.90
