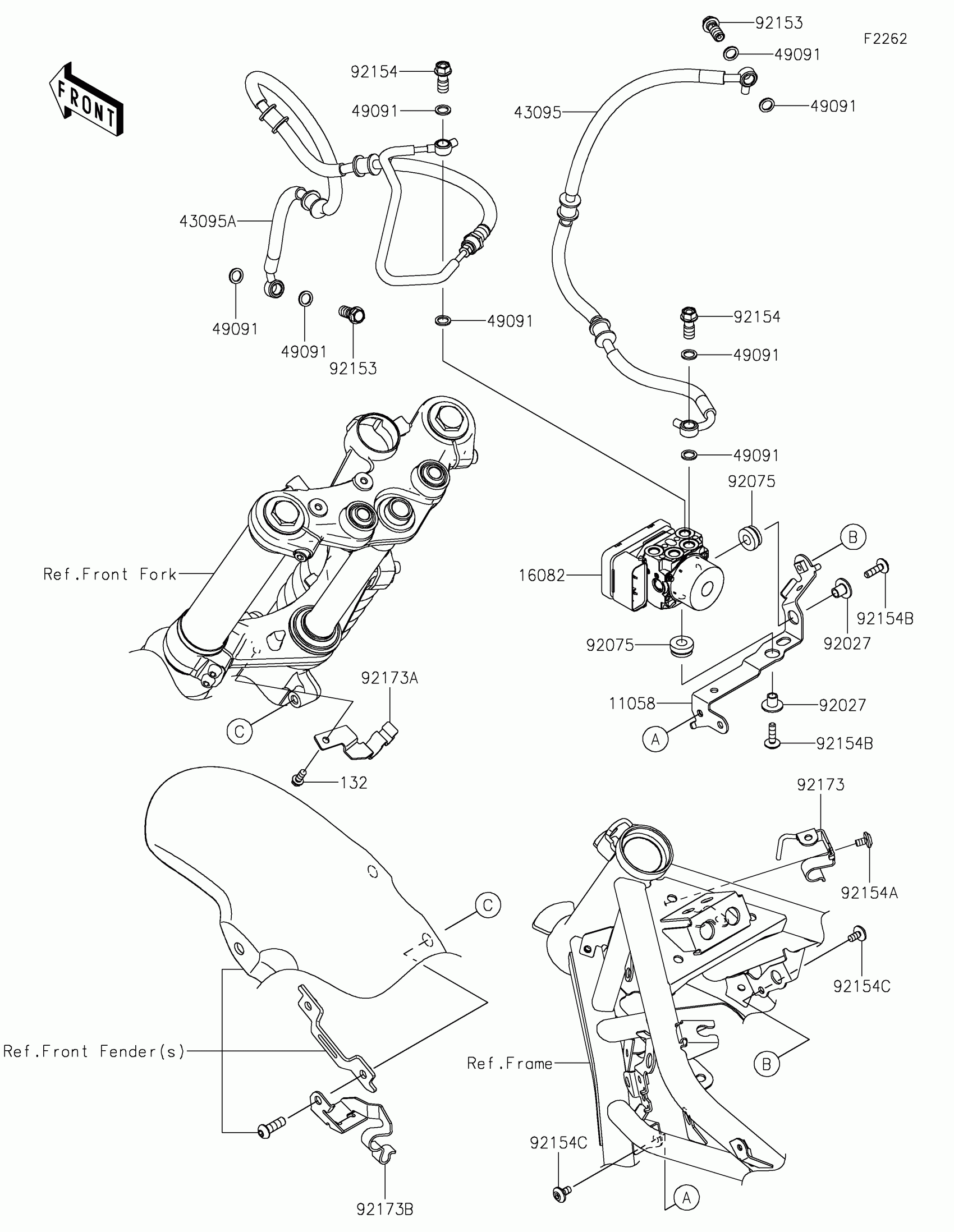

Kawasaki Eliminator SE ABS Brake Piping Diagram

Description

Price

11058

BRACKET,ABS UNIT

11058-0548

$13.78

16082

PUMP-ASSY-OIL,ABS,WET

16082-0940

$1,158.87

43095

HOSE-BRAKE,ABS-FR M/CYLINDER

43095-1878

$132.34

43095A

HOSE-BRAKE,ABS-FR CALIPER

43095-1879

$252.30

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$3.98

92075

DAMPER

92075-277

$1.90

92153

BOLT,OIL,L=23

92153-0627

$4.15

92154

BOLT,BANJO,10X22

92154-1138

$7.31

92154A

BOLT,SOCKET,6X10

92154-1693

$1.47

92154B

BOLT,SOCKET,6X22

92154-2302

$1.10

92154C

BOLT,SOCKET,6X12

92154-4310

$1.17

92173

CLAMP,HOSE

92173-2579

$8.61

92173A

CLAMP,UNDER BRACKET

92173-2581

$5.37

92173B

CLAMP,FR FENDER

92173-2718

$12.03

132

BOLT-FLANGED-SMALL,6X14

132BB0614

$1.77
