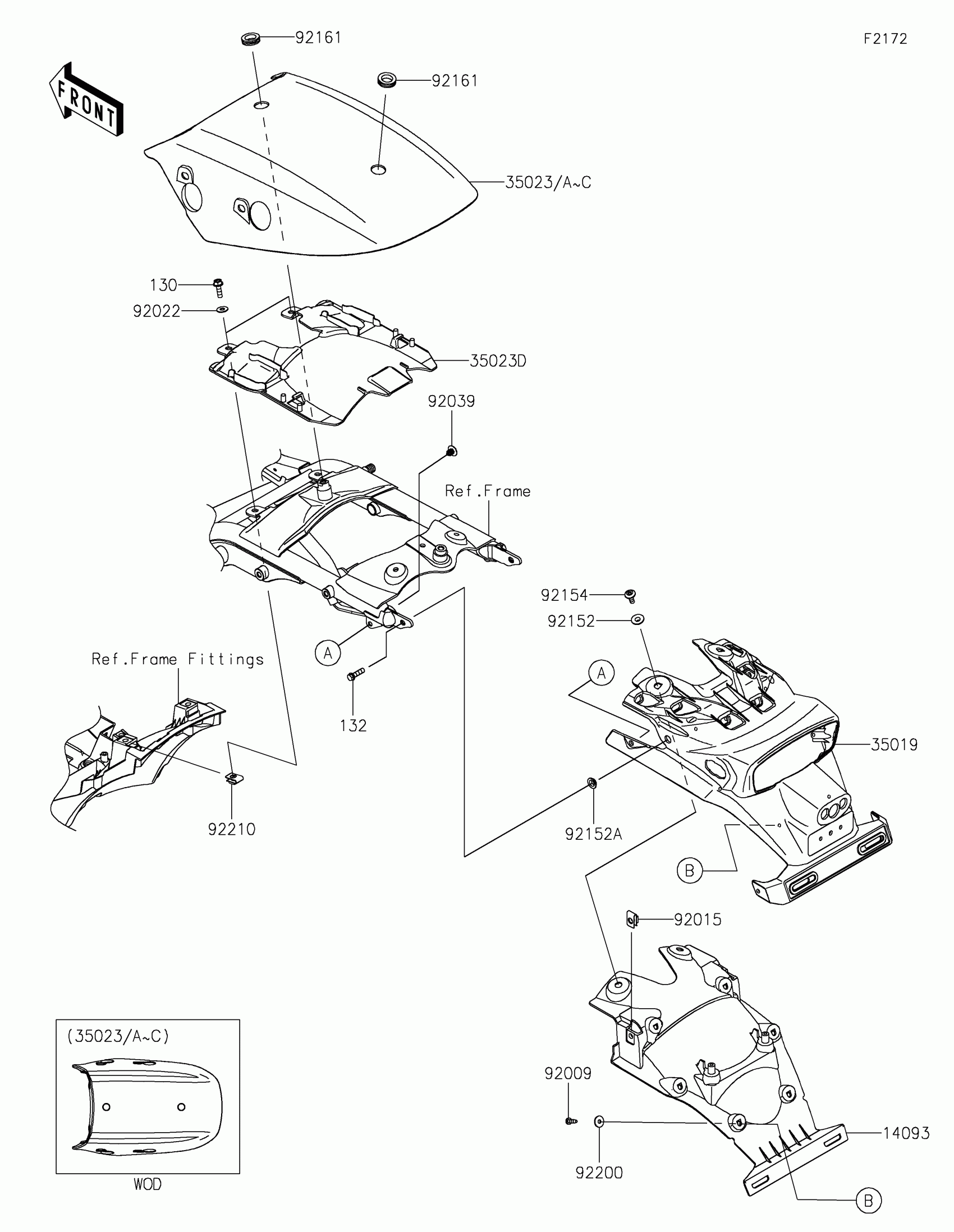

Kawasaki Eliminator SE ABS Rear Fender(s) Diagram

Description

Price

14093

COVER,INNER

14093-1436

$44.10

35019

FLAP,RR FENDER

35019-0694

$65.15

35023A

FENDER-REAR,OUTER,C.S.F.ORANGE

35023-0490-62J

$293.63

35023D

FENDER-REAR,INNER

35023-0491

$25.99

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92015

NUT,6MM

92015-1602

$7.34

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92039

RIVET

92039-0722

$1.63

92152

COLLAR

92152-0427

$7.75

92152A

COLLAR,8.8X11.2X4

92152-0909

$5.65

92154

BOLT,SOCKET,6X16

92154-3838

$2.17

92161

DAMPER

92161-0765

$3.71

92200

WASHER,5.2X16X1.2

92200-0583

$1.94

92210

NUT,6MM

92210-0891

$6.52

130

BOLT-FLANGED,6X20

130BB0620

$0.46

132

BOLT-FLANGED-SMALL,6X22

132BB0622

$2.31
