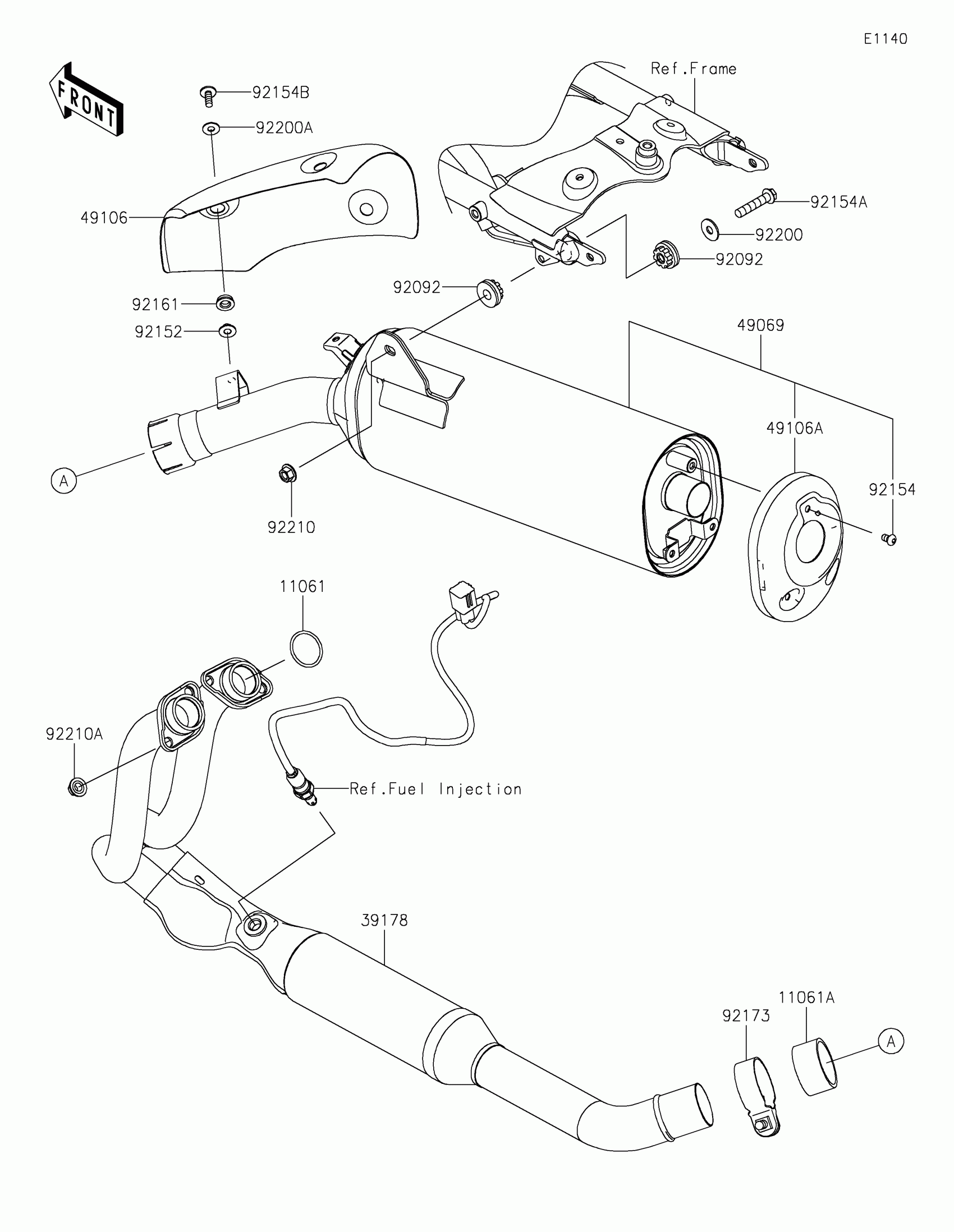

Kawasaki Eliminator SE ABS Muffler(s) Diagram

Description

Price

11061

GASKET,EXHAUST PIPE

11061-1249

$7.60

11061A

GASKET,EXHAUST PIPE CONNECTING

11061-1266

$26.35

39178

MANIFOLD-COMP-EXHAUST

39178-0448

$1,385.47

49069

MUFFLER-ASSY

49069-0912

$946.88

49106

COVER-MUFFLER

49106-0877

$341.39

49106A

COVER-MUFFLER,END

49106-0884

$75.51

92092

BUSHING-RUBBER

92092-0044

$5.84

92152

COLLAR

92152-3804

$33.80

92154

BOLT,SOCKET,6X10

92154-7021

$5.28

92154A

BOLT,FLANGED,8X40

92154-7038

$4.05

92154B

BOLT,SOCKET,6X16

92154-7234

$0.78

92161

DAMPER

92161-2534

$3.87

92173

CLAMP

92173-1931

$21.33

92200

WASHER,8.5X19X1

92200-1733

$0.95

92200A

WASHER

92200-2636

$6.80

92210

NUT,8MM

92210-0121

$2.26

92210A

NUT,8MM

92210-1114

$2.46
