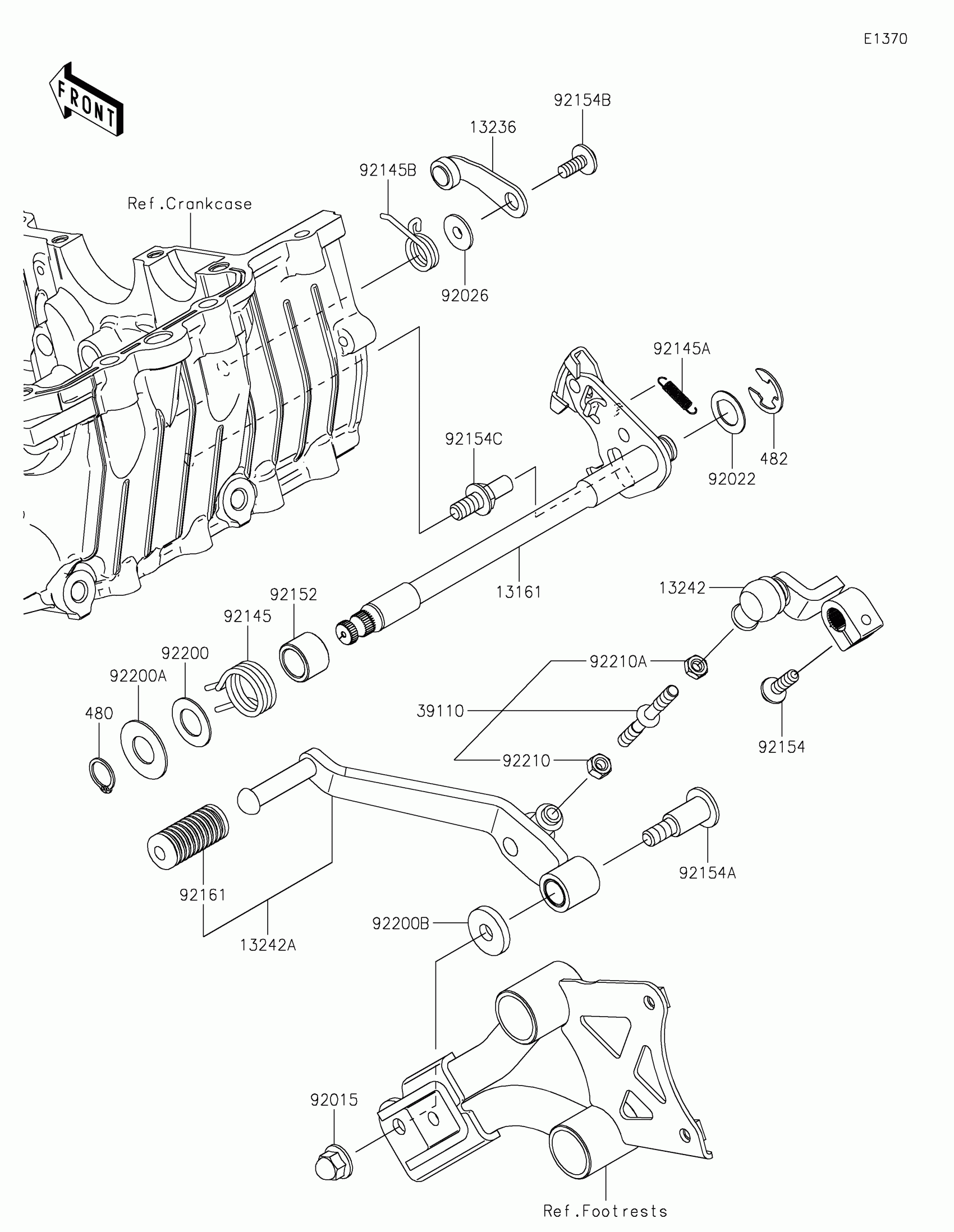

Kawasaki Eliminator SE ABS Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-0610

$91.77

13236

LEVER-COMP,POSITION

13236-0794

$10.35

13242

LEVER-ASSY-CHANGE

13242-0253

$34.49

13242A

LEVER-ASSY-CHANGE,PEDAL

13242-0254

$53.04

39110

ROD-ASSY-TIE

39110-0311

$9.81

92015

NUT,CAP,8MM

92015-1982

$5.00

92022

WASHER,CHANGE SHAFT

92022-1628

$6.57

92026

SPACER

92026-1217

$5.52

92145

SPRING,RETURN

92145-1783

$2.68

92145A

SPRING,PAWL RETURN

92145-1813

$0.90

92145B

SPRING,DRUM POSITION

92145-1814

$0.90

92152

COLLAR,14.2X19.9X14.3

92152-2370

$4.60

92154

BOLT,SOCKET,6X20

92154-1499

$1.48

92154A

BOLT

92154-2730

$8.98

92154B

BOLT,SOCKET,6X14

92154-2731

$2.17

92154C

BOLT,RETURN SPRING

92154-4400

$3.41

92161

DAMPER,CHANGE PEDAL

92161-1466

$3.35

92200

WASHER,14.2X25X1

92200-1933

$0.64

92200A

WASHER,14.3X30X1.2

92200-2295

$2.58

92200B

WASHER,8.5X24X4.0

92200-2570

$3.86

92210

NUT,6MM

92210-1596

$2.32

92210A

NUT,LEFT HANDED,6MM

92210-1597

$3.02

480

CIRCLIP-TYPE-C,14MM

480J1400

$5.00

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.92
