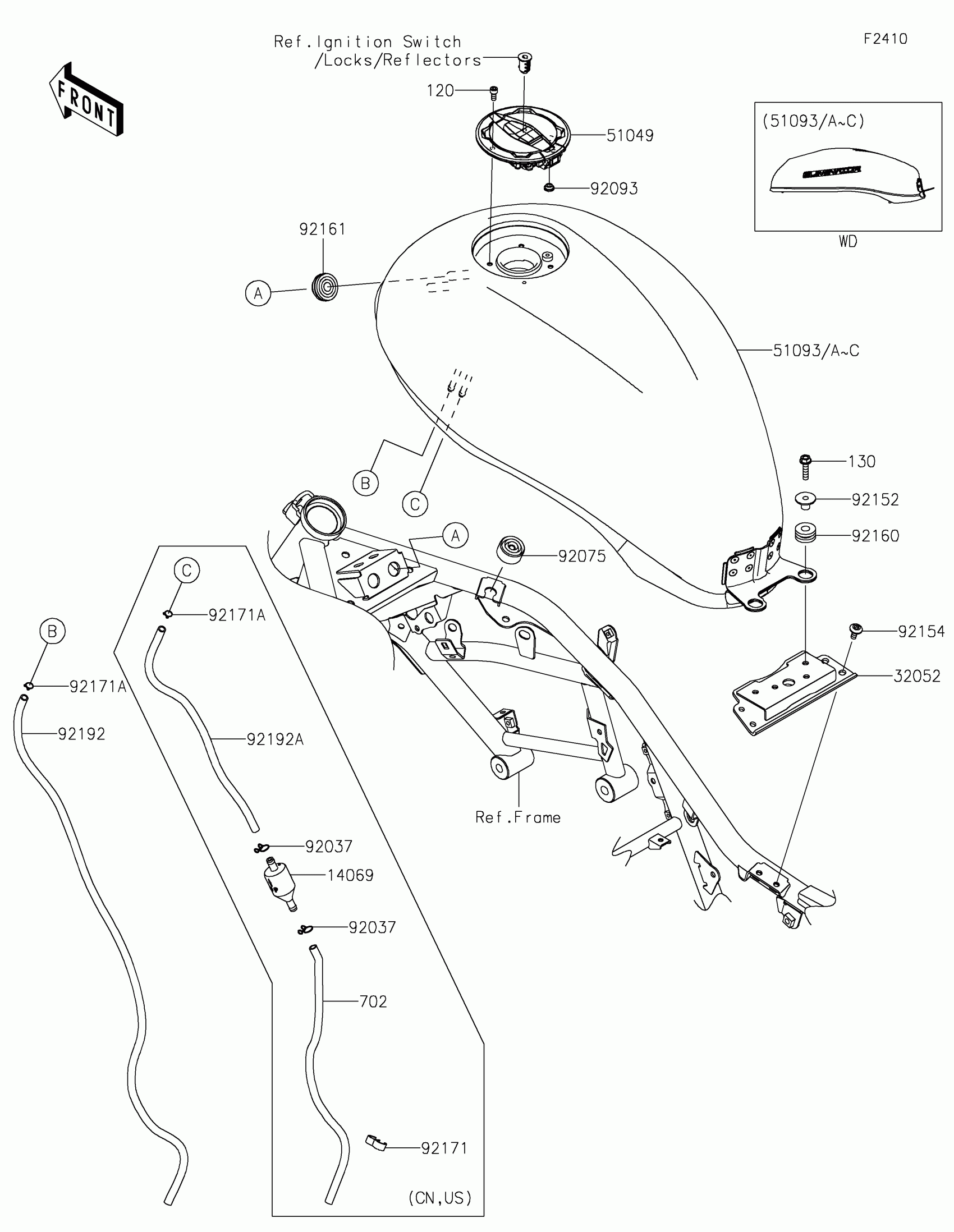

Kawasaki Eliminator SE ABS Fuel Tank Diagram

Description

Price

32052

BRACKET-TANK

32052-0854

$35.37

51049

CAP-TANK,FUEL

51049-0756

$136.31

51093A

TANK-COMP-FUEL,ORANGE+EBONY

51093-5122-69N

$1,104.79

92075

DAMPER

92075-015

$5.00

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92152

COLLAR,6.5X10X13.6

92152-2204

$2.95

92154

BOLT,SOCKET,6X14

92154-0932

$1.97

92160

DAMPER

92160-1162

$5.00

92161

DAMPER,10X32X8

92161-1791

$2.26

92171A

CLAMP,8X0.7

92171-1973

$1.34

92192

TUBE,DRAIN

92192-2612

$9.49

120

BOLT-SOCKET,5X12

120CA0512

$1.57

130

BOLT-FLANGED,6X25

130CC0625

$1.42
