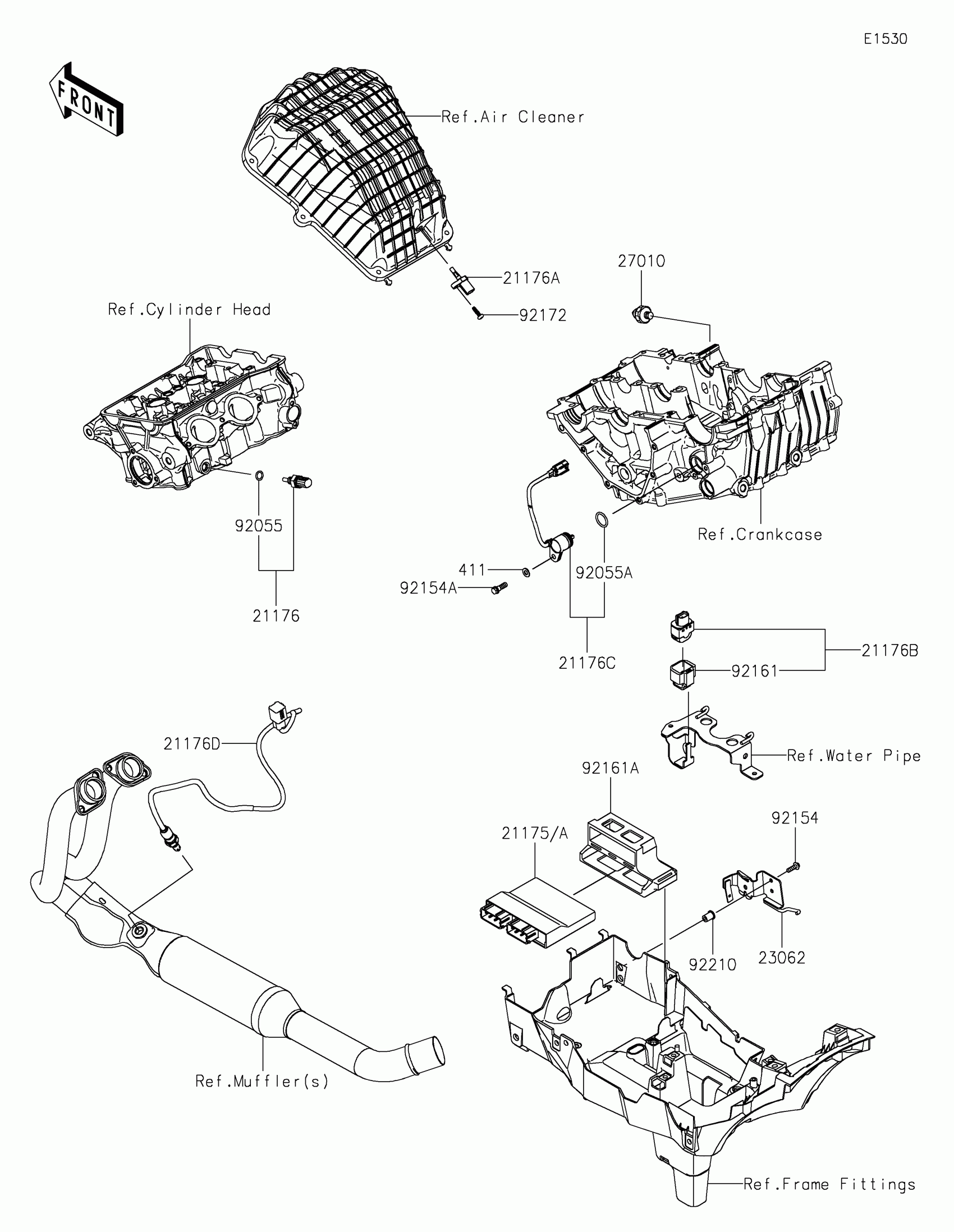

Kawasaki Eliminator SE ABS Fuel Injection Diagram

Description

Price

21175A

CONTROL UNIT-ELECTRONIC

21175-2074

$775.40

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

21176B

SENSOR,VEHICLE-DOWN

21176-0704

$90.72

21176C

SENSOR,GEAR POSITION

21176-0852

$151.78

21176D

SENSOR,OXYGEN,FR

21176-1184

$237.62

23062

BRACKET-COMP,SENSOR

23062-1419

$11.98

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

92055

RING-O,9.5X1.9

92055-0016

$8.89

92055A

RING-O

92055-0917

$3.71

92154

BOLT,SOCKET,5X16

92154-1701

$1.19

92154A

BOLT

92154-3764

$1.69

92161

DAMPER

92161-0951

$14.90

92161A

DAMPER

92161-2437

$15.39

92172

SCREW,TAPPING,5X16

92172-0790

$0.85

92210

NUT,WELL,5MM

92210-0498

$7.29

411

WASHER-PLAIN,6MM

411AA0600

$2.92
