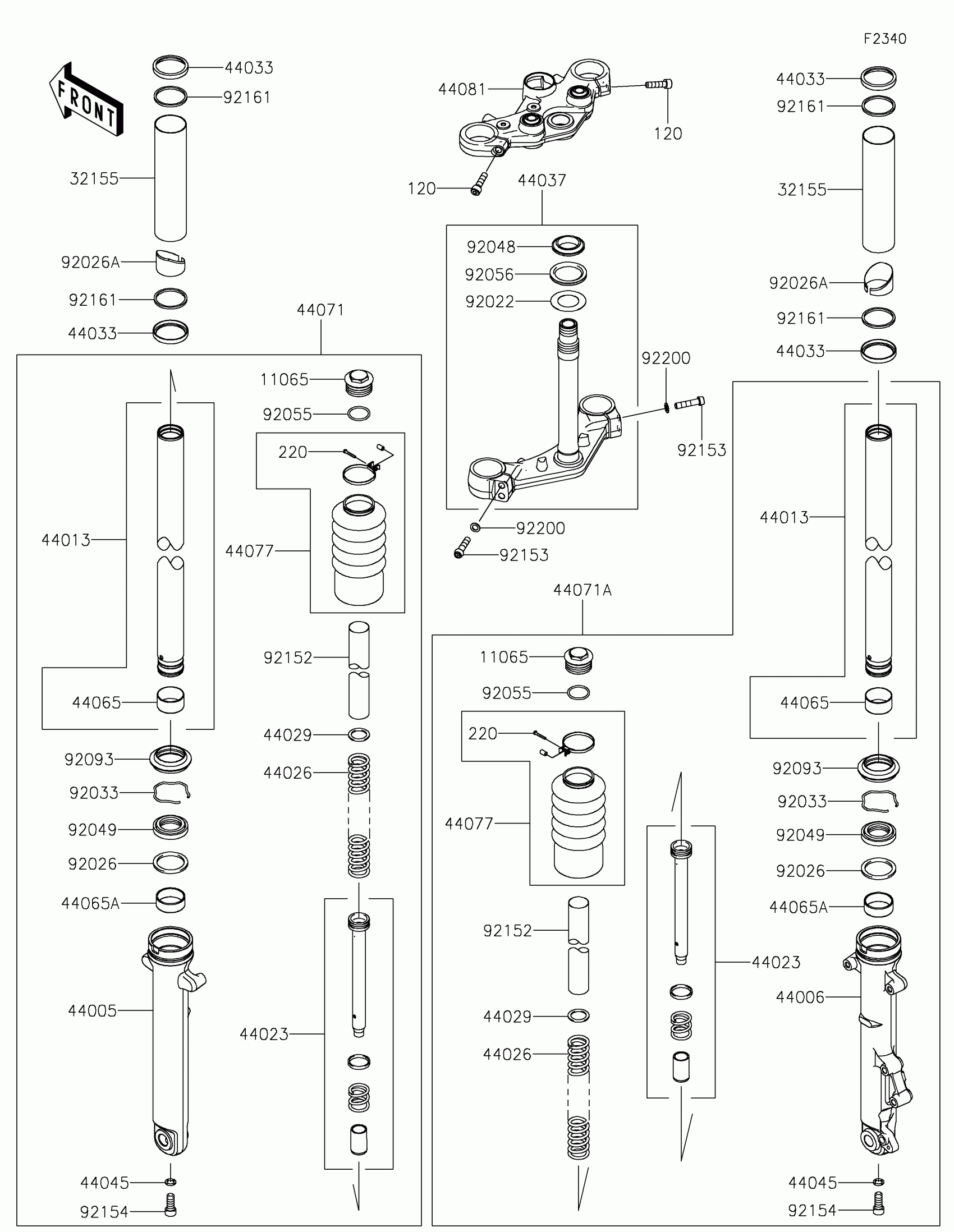

Kawasaki Eliminator SE ABS Front Fork Diagram

#

Description
Price

11065

CAP

11065-1286

$44.62

32155

PIPE,FORK COVER

32155-7470

$17.60

44005

PIPE-LEFT FORK OUTER

44005-0129

$475.47

44006

PIPE-RIGHT FORK OUTER

44006-0132

$475.47

44013

PIPE-FORK INNER

44013-0404

$459.67

44023

CYLINDER-SET-FORK

44023-0194

$112.23

44026

SPRING-FRONT FORK

44026-0297

$55.61

44029

SEAT-FORK SPRING

44029-1131

$10.36

44033

COVER-FORK

44033-0084

$2.78

44037

HOLDER-FORK UNDER

44037-0216

$377.28

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44065

BUSHING-FRONT FORK

44065-0076

$20.83

44065A

BUSHING-FRONT FORK

44065-0077

$20.55

44071

DAMPER-ASSY,FORK,LH,F.S.BLACK

44071-1592-18R

$707.88

44071A

DAMPER-ASSY,FORK,RH,F.S.BLACK

44071-1593-18R

$707.88

44077

BOOT-ASSY

44077-0003

$95.72

44081

HOLDER-ASSY-FORK UPPER

44081-0131

$291.05

92022

WASHER,30.5X50X0.6

92022-231

$4.69

92026

SPACER,FORK OUTER

92026-1276

$9.51

92026A

SPACER,FORK COVER

92026-1432

$5.93

92033

RING-SNAP

92033-1222

$6.51

92048

RACE,STEERING STEM BEARING

92048-0048

$14.60

92049

SEAL-OIL

92049-0807

$22.70

92055

RING-O,FORK TOP

92055-1420

$5.52

92056

SEAL-OIL,STEERING STEM

92056-003

$8.86

92093

SEAL,DUST

92093-0717

$23.76

92152

COLLAR

92152-2987

$17.42

92153

BOLT,SOCKET,8X35

92153-0854

$7.83

92154

BOLT

92154-2551

$9.91

92161

DAMPER,41.4X46.7X3

92161-2493

$1.00

92200

WASHER,8.5X14X1.2

92200-2712

$1.42

120

BOLT-SOCKET,8X30

120CC0830

$3.71

220

SCREW-PAN-CROSS,3X20

220AB0320

$1.25
