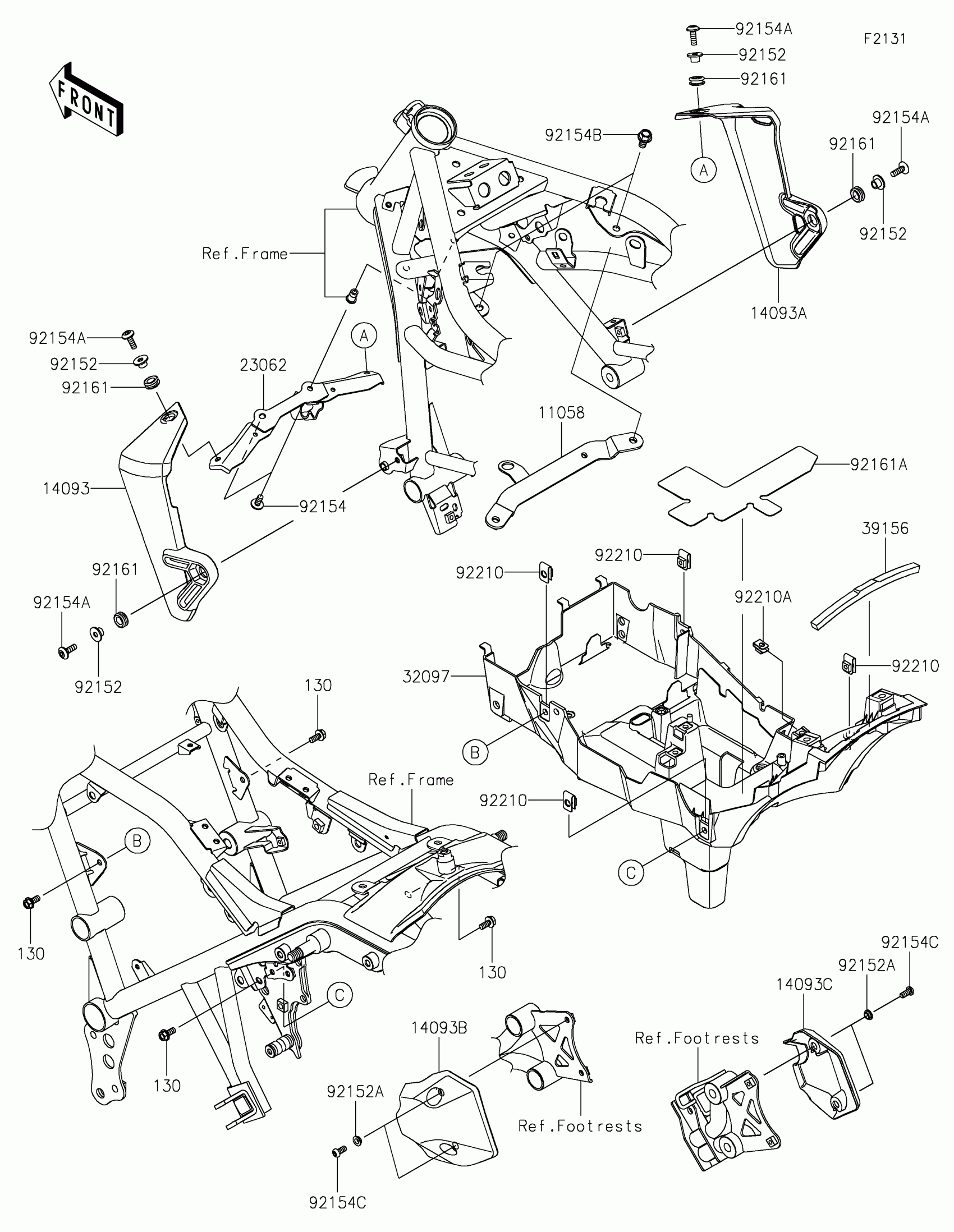

Kawasaki Eliminator SE ABS Frame Fittings Diagram

Description

Price

11058

BRACKET,REGULATOR

11058-0554

$25.68

14093

COVER,RADIATOR,LH

14093-1323

$33.28

14093A

COVER,RADIATOR,RH

14093-1324

Unavailable

14093B

COVER,HEEL GUARD,LH

14093-1325

$24.51

14093C

COVER,HEEL GUARD,RH

14093-1326

$23.98

23062

BRACKET-COMP,RADIATOR

23062-1393

$14.86

32097

CASE-BATTERY

32097-0576

$174.33

39156

PAD,170X10X12

39156-2863

$2.64

92152

COLLAR,6.8X10X8.6

92152-0888

$1.97

92152A

COLLAR

92152-3772

$3.49

92154

BOLT,SOCKET,6X14

92154-0907

$1.44

92154A

BOLT,SOCKET,6X18

92154-2438

$1.86

92154B

BOLT-FLANGED,8X14

92154-3851

$1.66

92154C

BOLT,SOCKET,6X14

92154-7064

$1.15

92161

DAMPER

92161-0266

$1.32

92161A

DAMPER,BATTERY CASE

92161-2484

$24.17

92210

NUT,6MM

92210-0891

$5.66

92210A

NUT,PLATE,5MM

92210-0935

$1.44

130

BOLT-FLANGED,6X14

130BA0614

$0.97
