2025 Kawasaki Eliminator Se ABS Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2025 Kawasaki Eliminator Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

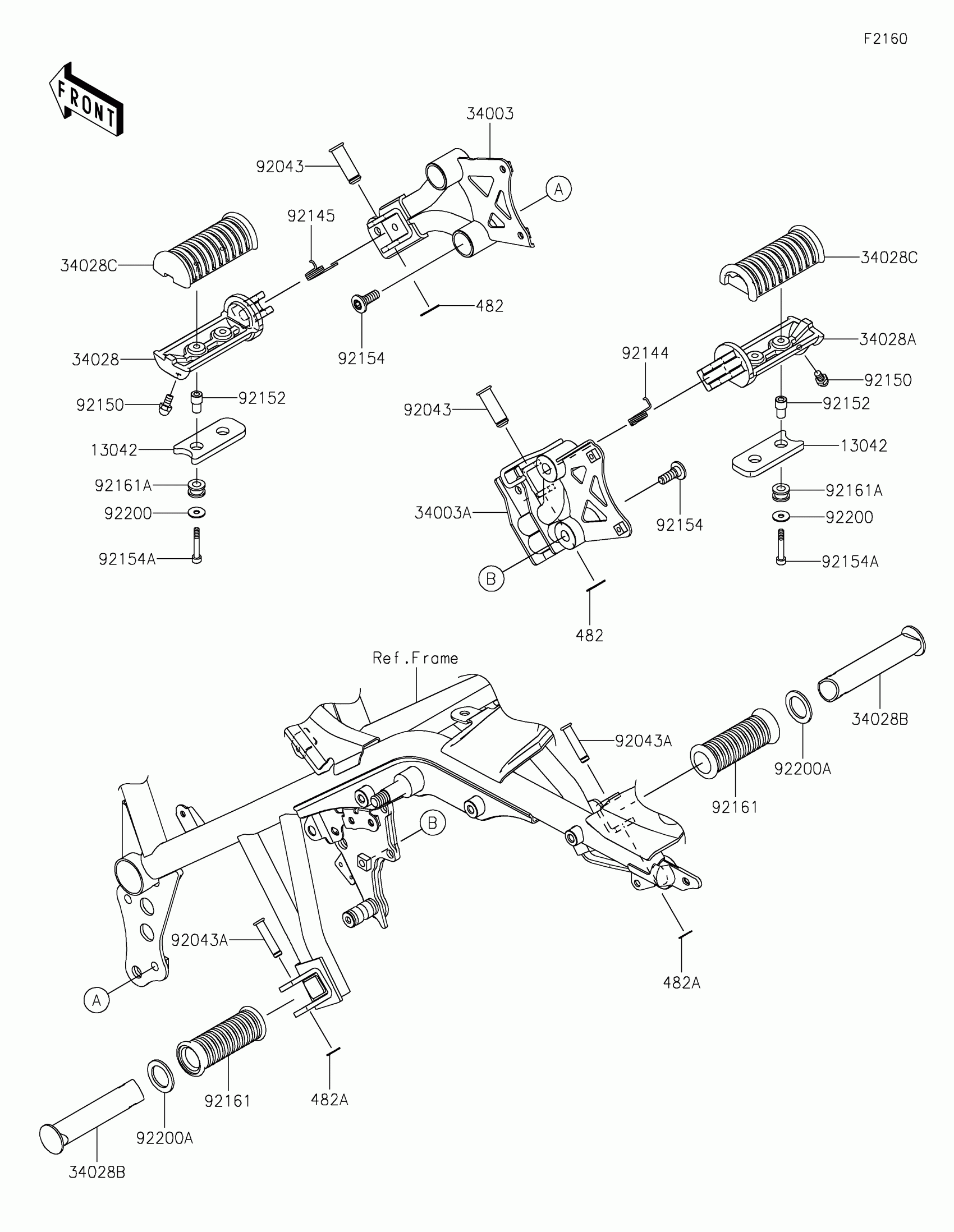

2025 Kawasaki Eliminator Se ABS Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT

13042-0812

1

$12.56

In stock

34003

HOLDER-STEP,FR,LH

34003-0198

1

$121.37

In stock

34003A

HOLDER-STEP,FR,RH

34003-0199

1

$121.37

In stock

34028

STEP,FR,LH

34028-0316

1

$46.48

In stock

34028A

STEP,FR,RH

34028-0317

1

$46.48

In stock

34028B

STEP,RR

34028-0344

1

$21.92

In stock

34028C

STEP,RUBBER

34028-0410

1

$23.53

In stock

92043

PIN,12X37

92043-0150

1

$10.85

In stock

92043A

PIN,8X36.5

92043-1339

1

$7.71

In stock

92144

SPRING,STEP RETURN

92144-1568

1

$5.15

In stock

92145

1

$3.49

In stock

92150

BOLT,BANK SENSER

92150-1153

1

$7.71

In stock

92152

COLLAR

92152-3789

1

$21.39

In stock

92154

BOLT,SOCKET,8X23

92154-7054

1

$5.47

In stock

92154A

BOLT,SOCKET,5X33

92154-7193

1

$2.58

In stock

92161

DAMPER,STEP

92161-0232

1

$15.61

In stock

92161A

DAMPER,8X16X8

92161-2082

1

$2.20

In stock

92200

WASHER,5.2X16X1.2

92200-0583

1
Out of stock

92200A

WASHER,22.5X33X2.3

92200-1482

1
Out of stock

482

1

$0.98

In stock

482A

CIRCLIP-TYPE-E

482EA7000

1

$3.12

In stock
