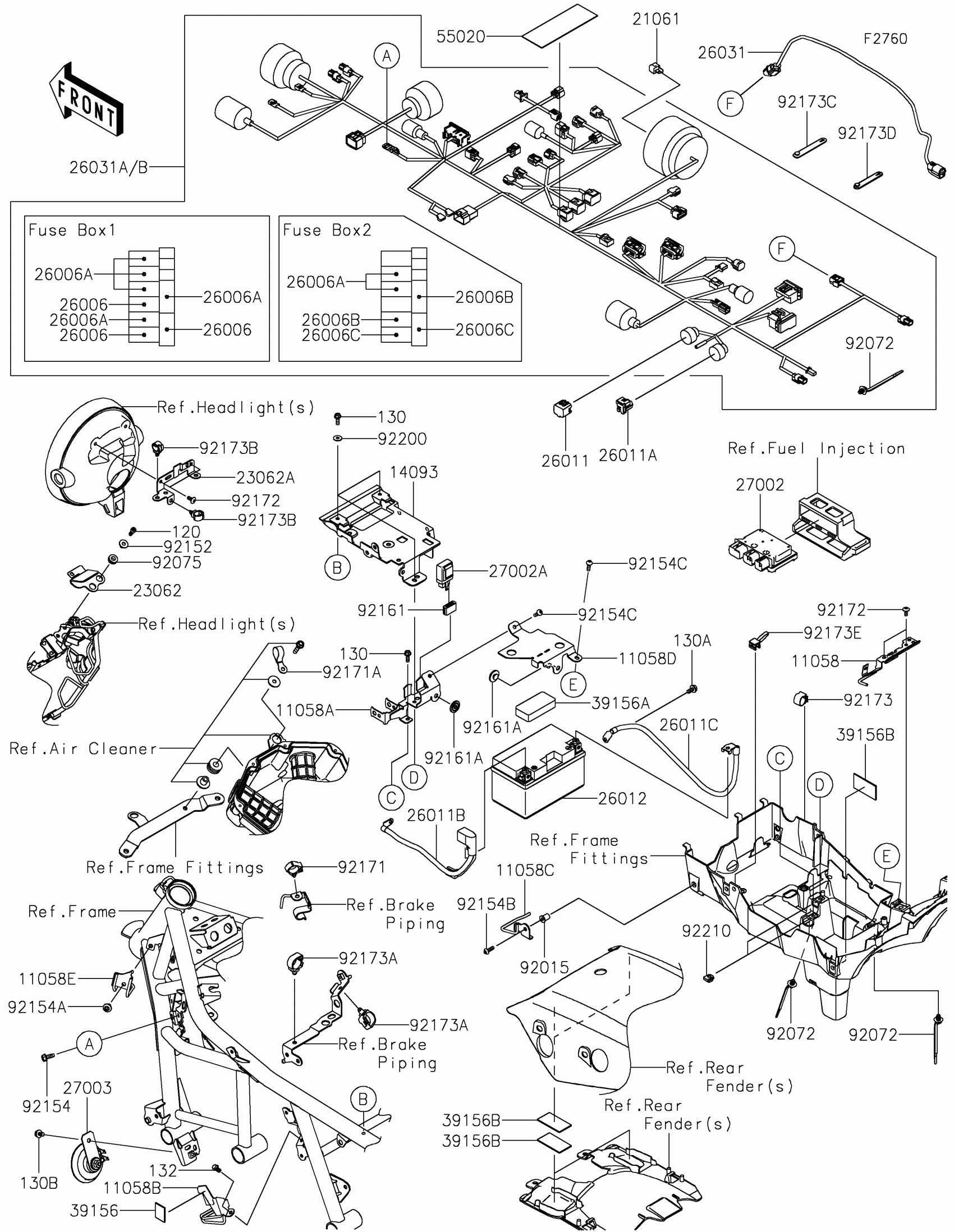

Kawasaki Eliminator SE ABS Chassis Electrical Equipment Diagram

#

Description
Price

11058

BRACKET,FUSE BOX

11058-0361

$12.11

11058A

BRACKET,RELAY

11058-0364

$21.41

11058B

BRACKET,ACG CONNECTOR

11058-0381

$11.98

11058C

BRACKET

11058-0494

$8.00

11058D

BRACKET,BATTERY

11058-1026

$16.58

11058E

BRACKET

11058-1356

$8.24

14093

COVER

14093-1558

$36.26

21061

RECTIFIER

21061-1003

$29.60

23062

BRACKET-COMP

23062-1408

$15.24

23062A

BRACKET-COMP

23062-1409

$11.50

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26006B

FUSE,MINI BLADE,20A,YELLOW

26006-1079

$4.87

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,CONNECTOR COVER

26011-0275

$14.13

26011A

WIRE-LEAD,DIAG CONNECTOR

26011-1901

$37.01

26011B

WIRE-LEAD,BATTERY(+)

26011-2415

$40.38

26011C

WIRE-LEAD,BATTERY(-)

26011-2416

$40.78

26012

BATTERY,YTZ10,12V 8.6AH

26012-0689

Unavailable

26031

HARNESS,SUB

26031-3971

$23.85

26031B

HARNESS,MAIN

26031-4206

$853.22

27002

RELAY-ASSY

27002-0061

$167.87

27002A

RELAY-ASSY,SIGNAL LAMP

27002-0062

$74.99

27003

HORN

27003-0065

$68.06

39156

PAD,31X23X2

39156-2462

$1.52

39156A

PAD,70X35X15

39156-2837

$12.62

39156B

PAD,55X30X2

39156-2840

$1.06

55020

GUARD,MAIN HARNESS

55020-2478

$10.20

92015

NUT,WELL,5MM

92015-1757

$7.29

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92075

DAMPER

92075-161

$4.69

92152

COLLAR,5.2X7.5X8.2

92152-1880

$4.92

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92154A

BOLT,SOCKET,6X10

92154-1693

$1.71

92154B

BOLT,SOCKET,5X16

92154-1701

$1.19

92154C

BOLT,SOCKET,5X16

92154-4294

$2.75

92161

DAMPER,15X25X8.5

92161-1443

$1.94

92161A

DAMPER,8X22X10

92161-1685

$0.88

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

92171A

CLAMP

92171-1279

$9.19

92172

SCREW,5X12

92172-0821

$0.85

92173

CLAMP,CLIP

92173-0127

$15.62

92173A

CLAMP

92173-0861

$3.02

92173B

CLAMP

92173-1951

$1.42

92173C

CLAMP

92173-2194

$1.83

92173D

CLAMP

92173-2199

$1.48

92173E

CLAMP

92173-2719

$9.74

92200

WASHER,5.2X15X1.0

92200-0456

$1.37

92210

NUT,PLATE,5MM

92210-0935

$1.97

120

BOLT-SOCKET,5X14

120CA0514

$5.59

130

BOLT-FLANGED,5X16

130BA0516

$0.86

130A

BOLT-FLANGED,6X12

130BA0612

$1.72

130B

BOLT-FLANGED,6X10

130BB0610

$2.49

132

BOLT-FLANGED-SMALL,6X10

132BB0610

$2.49
