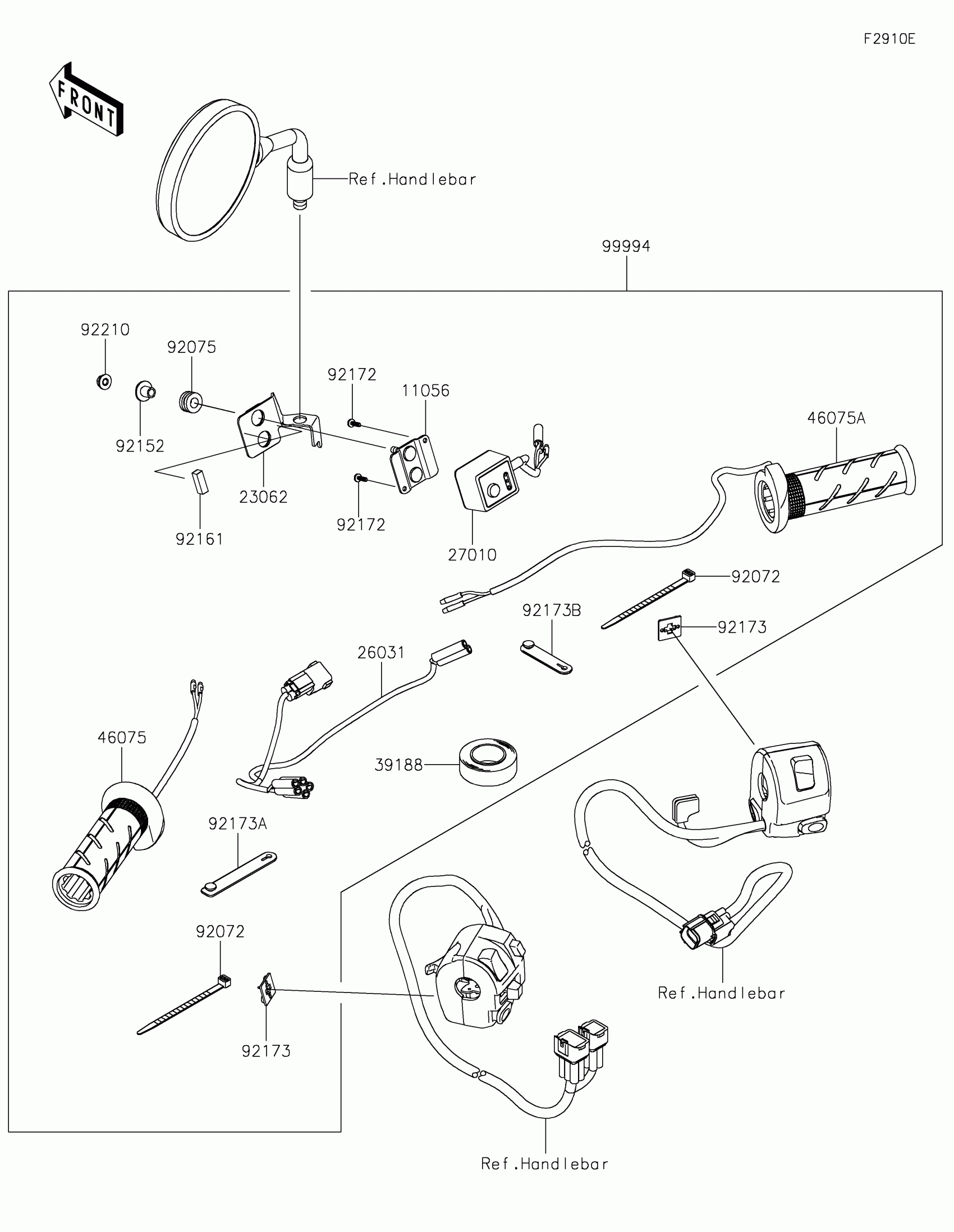

Kawasaki Eliminator SE ABS Accessory(Grip Heater) Diagram

Description

Price

11056

BRACKET

11056-7296

$34.87

23062

BRACKET-COMP

23062-1325

$6.53

26031

HARNESS,GRIP-HEATER

26031-3973

$39.65

27010

SWITCH,HEATED-GRIP,HONDA-ACCES

27010-0126

$232.77

39188

TAPE,HARNESS

39188-0006

$10.51

46075

GRIP,HEATER,LH

46075-0599

$119.29

46075A

GRIP,HEATER,RH

46075-0600

$119.29

92072

BAND,L=100

92072-3875

$4.15

92075

DAMPER

92075-1912

$5.77

92152

COLLAR

92152-0134

$7.65

92161

DAMPER

92161-1756

$2.26

92172

SCREW,TAPPING,3X10

92172-0351

$1.28

92173

CLAMP

92173-0812

$2.26

92173A

CLAMP

92173-2194

$1.83

92173B

CLAMP

92173-2198

$1.48

92210

NUT,FLANGED,5MM

92210-0007

$2.70

99994

GRIP HEATER

99994-1907

$360.00
