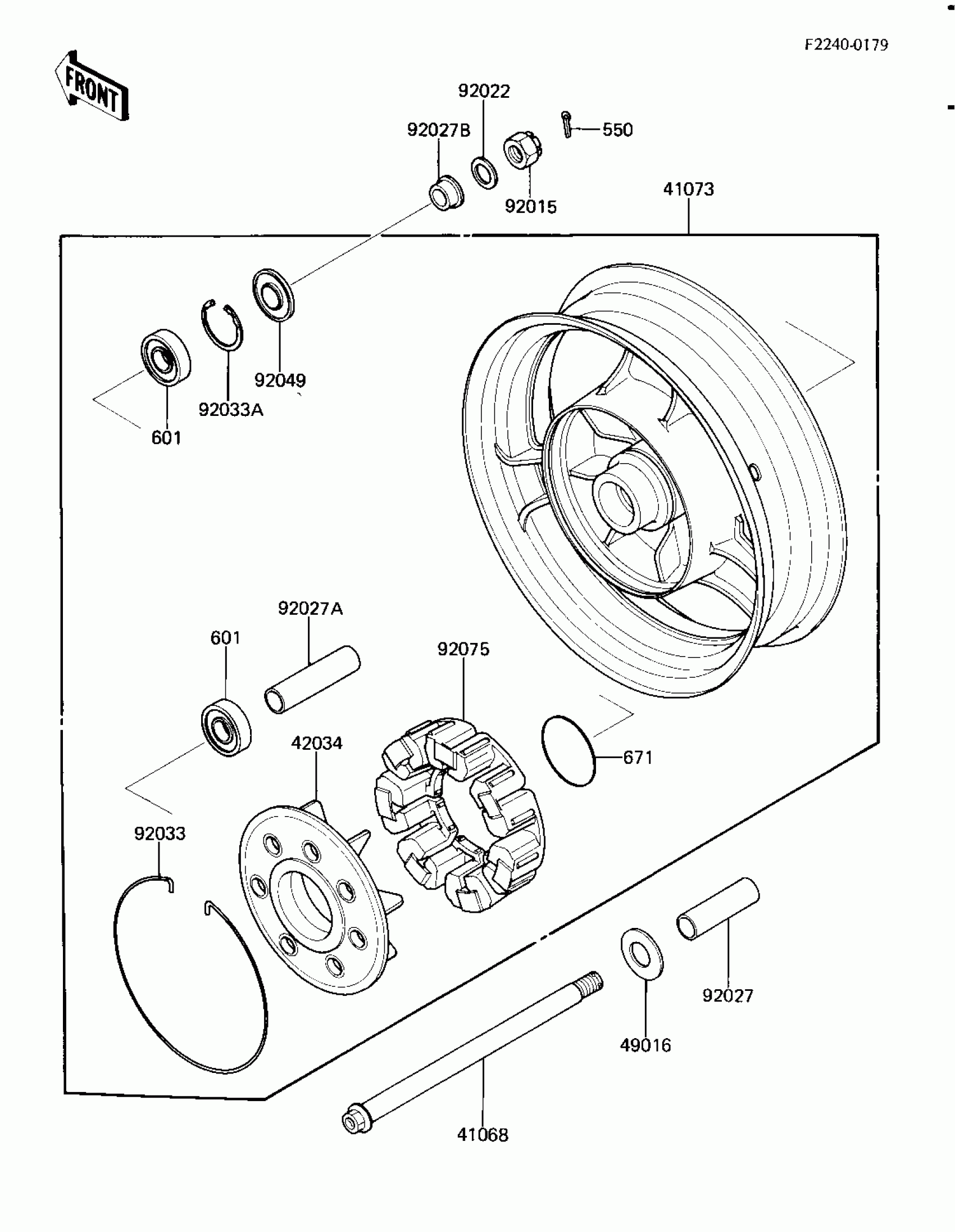

Kawasaki Eliminator REAR WHEEL/HUB Diagram

Description

Price

41068

AXLE,RR

41068-1197

$117.74

41073

WHEEL-ASSY,RR,M.GRAY

41073-1316-J9

$699.68

42034

COUPLING,RR HUB

42034-1011

$265.19

49016

COVER-SEAL

49016-1019

$8.53

92015

NUT,CASTLE,18MM

42045-018

$9.23

92022

WASHER,21X33X2.6

42046-003

$4.31

92027

COLLAR,20.2X28X89

92027-1553

$28.86

92027A

COLLAR,20.2X28X105.5

92027-1901

$37.84

92027B

COLLAR,RR AXLE,L=21.5

92027-1902

$25.27

92033

RING-SNAP

92033-1019

$16.56

92033A

RING-SNAP,52MM

92033-1043

$8.05

92049

SEAL-OIL,28X52X5

92049-1061

$19.15

92075

DAMPER,SHOCK,RR HUB

92075-1121

$135.89

550

PIN-COTTER,4.0X35

550D4035

$2.17

601

BEARING-BALL,#6304ZZC3

601B6304ZZ

$45.75

671

O RING,80MM

671B2580

$6.57
