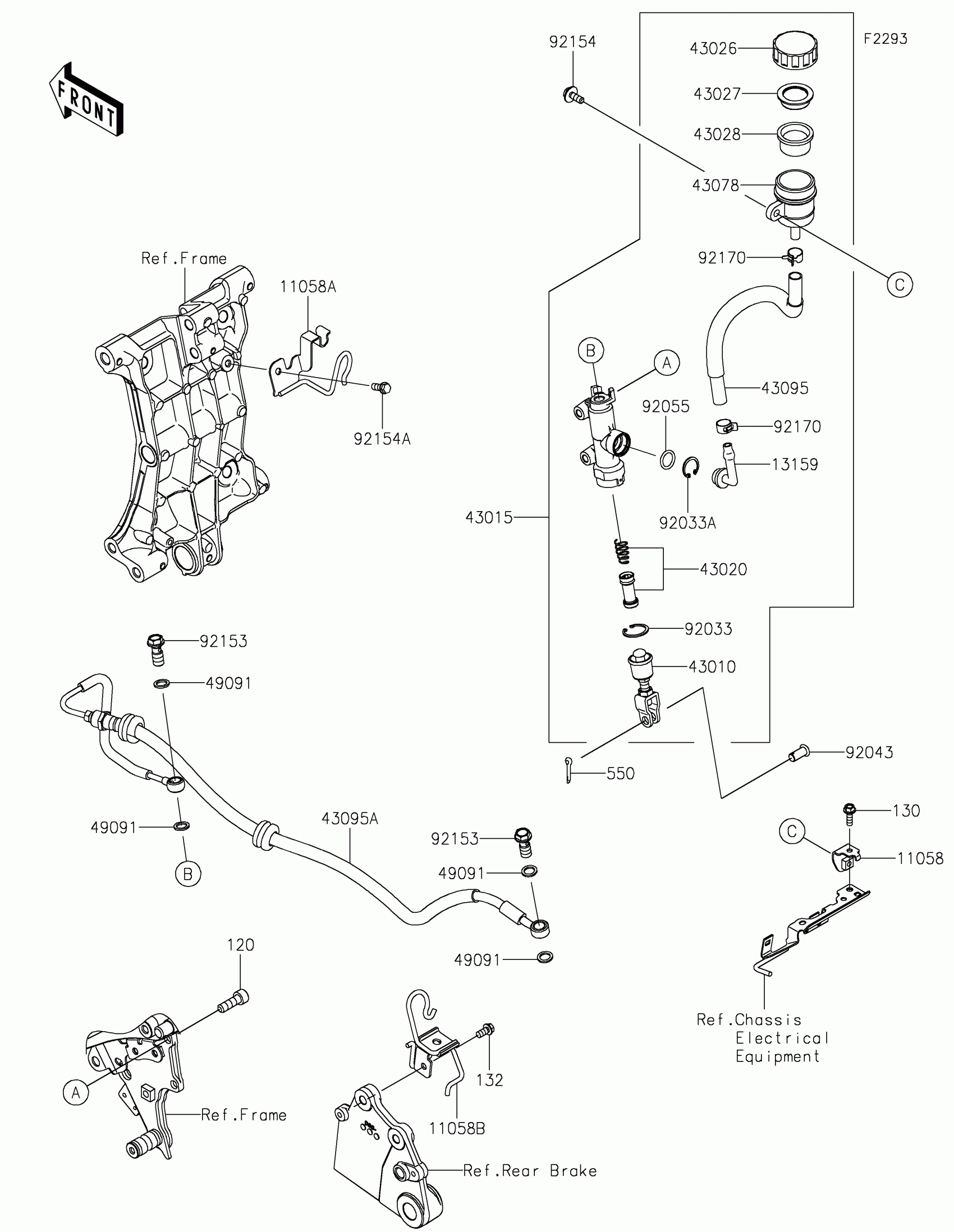

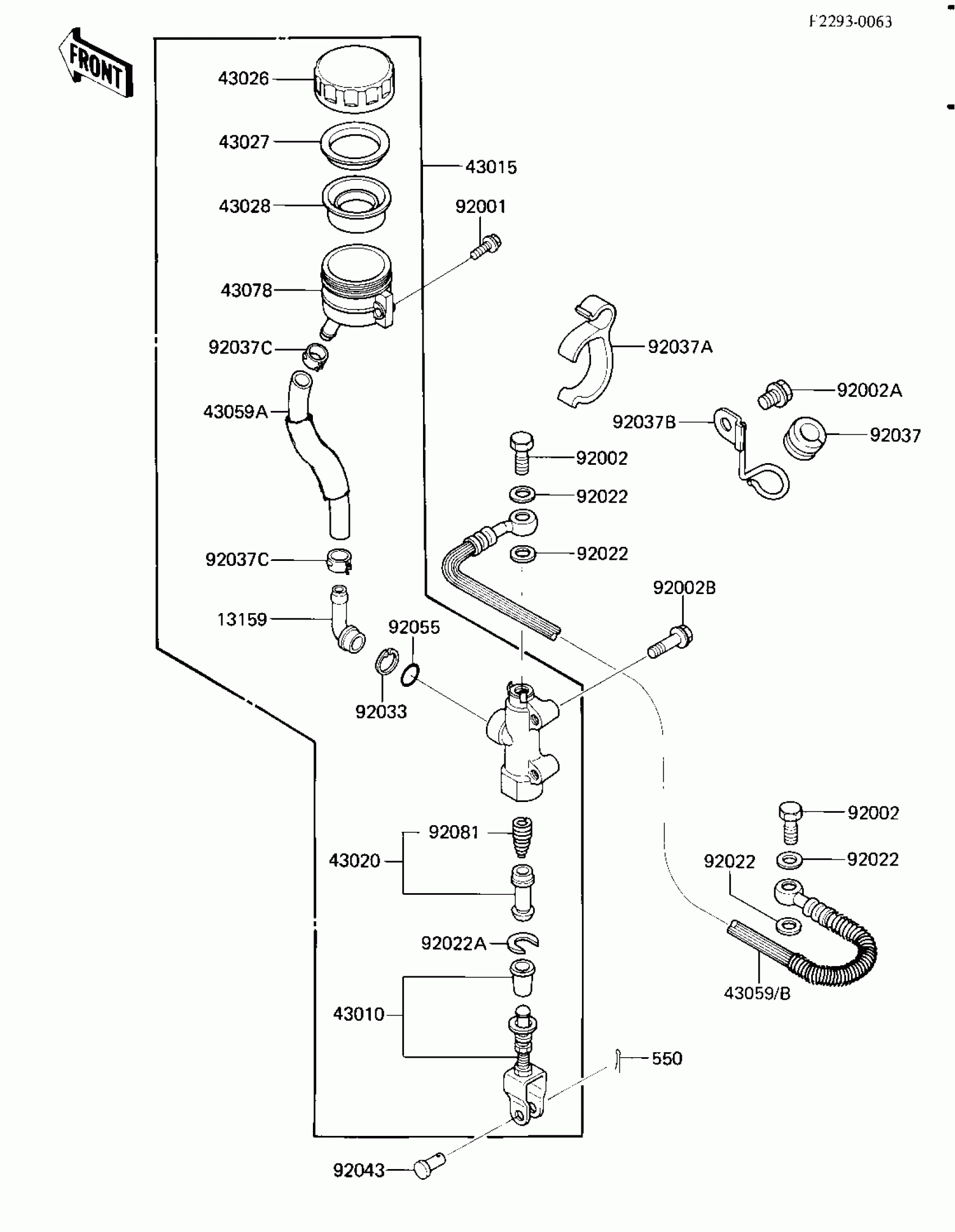

Kawasaki Eliminator Rear Master Cylinder Diagram

#

Description
Price

11058

BRACKET,RESERVOIR

11058-0497

$2.68

11058A

BRACKET

11058-0498

$8.62

11058B

BRACKET

11058-0500

$15.38

13159

CONNECTOR

13159-1056

$14.10

43010

ROD-ASSY-BRAKE

43010-0022

$71.10

43015

CYLINDER-ASSY-MASTER,RR

43015-0803

$264.68

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43078

RESERVOIR

43078-0040

$28.98

43095

HOSE-BRAKE

43095-1893

$14.12

43095A

HOSE-BRAKE,RR CALIPER-RR M/C

43095-1977

$179.18

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN

92043-0904

$3.90

92055

RING-O,14.8X2.4

92055-0741

$3.71

92153

BOLT,OIL,L=23

92153-0627

$5.48

92154

BOLT,UPSET-WP,6X16

92154-2244

$1.17

92154A

BOLT,6X14

92154-4129

$0.90

92170

CLAMP,HOSE

92170-1091

$5.00

120

BOLT-SOCKET,8X25

120CB0825

$4.69

130

BOLT-FLANGED,5X16

130BA0516

$0.86

132

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

550

PIN-COTTER,2.0X15

550AA2015

$1.12
