Description

Price

11009

GASKET,6.2X11.5X1.5

11009-1451

Unavailable

11009A

GASKET,EXHAUST PIPE CONNECTING

11009-1480

Unavailable

11009B

GASKET,EXHAUST PIPE HOLDER

18067-004

$8.25

16073

INSULATOR

16073-1065

$3.90

16073A

INSULATOR,RR,INNER

16073-1067

$27.82

16073B

INSULATOR,OUTER

16073-1068

$30.68

16073C

INSULATOR,GUARD

16073-1071

$11.07

16073D

INSULATOR,EXHAUST COVER

16073-1072

$4.05

18002

BODY-COMP-MUFFLER

18002-1798

Unavailable

18049

PIPE-EXHAUST

18049-1421

$420.17

18069

HOLDER-EXHAUST PIPE

18069-1076

$19.42

49107

COVER-EXHAUST PIPE

49107-1075

$80.80

49107A

COVER-EXHAUST PIPE

49107-1076

$93.98

49107B

COVER-EXHAUST PIPE

49107-1078

$5.78

55020

GUARD,HEAT

55020-1319

$13.06

92002

BOLT,FLANGED,10X25

92002-1828

$8.76

92015

NUT,6MM

92015-1365

$5.00

92015A

NUT,FLANGED,10MM

92015-1387

$4.31

92037

CLAMP,52MM

92037-1633

$27.31

92143

COLLAR,EXHAUST PIPE

92143-1006

$7.24

92150

BOLT,6X14

92150-1055

$3.86

92150A

BOLT,6X16

92150-1059

$3.86

92150B

BOLT,6X22

92150-1099

$4.13

130

BOLT-FLANGED

130J0508

$5.29

130A

BOLT-FLANGED,8X12

130J0812

$0.67

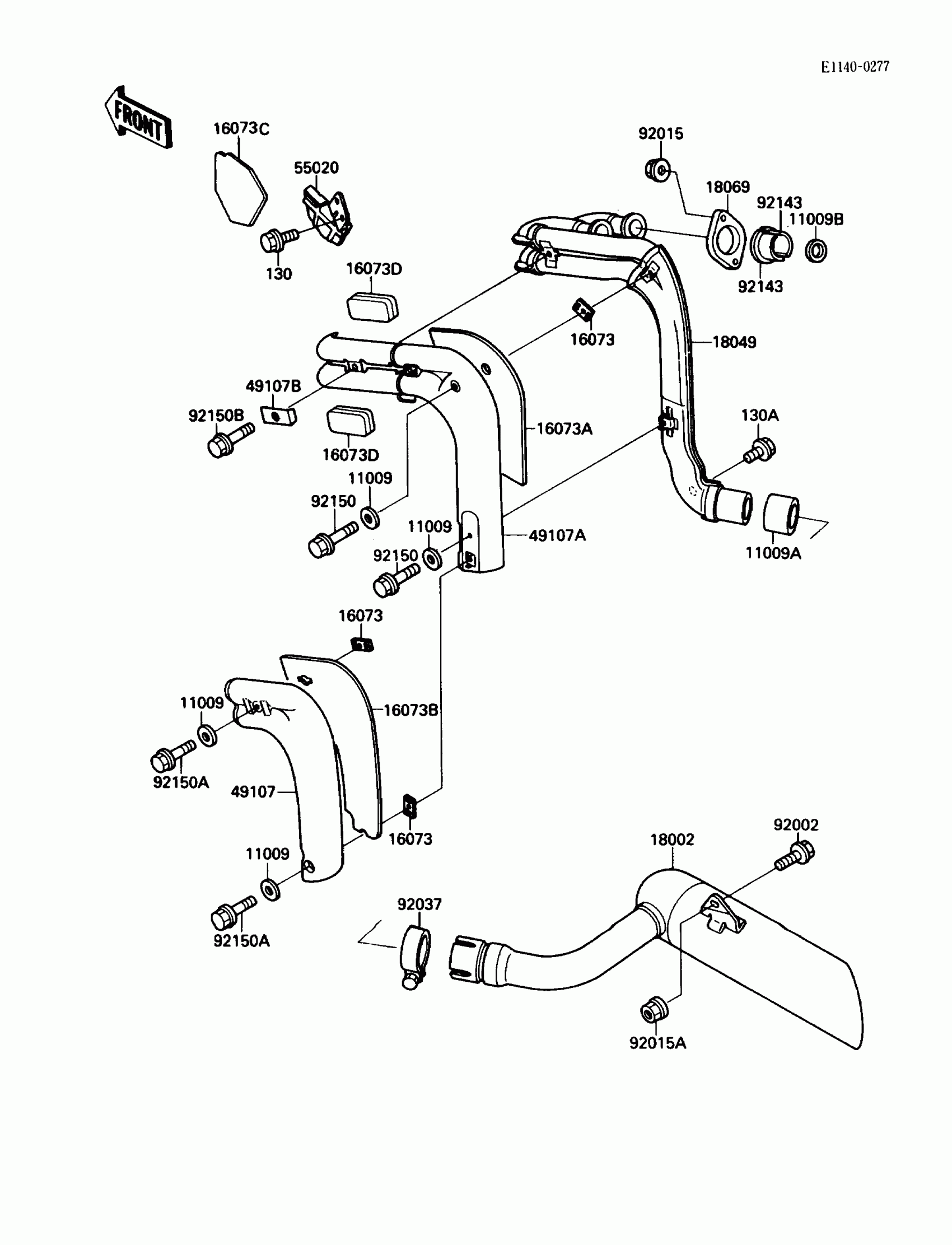

Kawasaki Eliminator Muffler(s) Diagram

GASKET,6.2X11.5X1.5

GASKET,EXHAUST PIPE CONNECTING

GASKET,EXHAUST PIPE HOLDER

INSULATOR

INSULATOR,RR,INNER

INSULATOR,OUTER

INSULATOR,GUARD

INSULATOR,EXHAUST COVER

BODY-COMP-MUFFLER

PIPE-EXHAUST

HOLDER-EXHAUST PIPE

COVER-EXHAUST PIPE

COVER-EXHAUST PIPE

COVER-EXHAUST PIPE

GUARD,HEAT

BOLT,FLANGED,10X25

NUT,6MM

NUT,FLANGED,10MM

CLAMP,52MM

COLLAR,EXHAUST PIPE

BOLT,6X14

BOLT,6X16

BOLT,6X22

BOLT-FLANGED

BOLT-FLANGED,8X12
