1986 Kawasaki Eliminator Clutch Master Cylinder Diagram

← All diagrams

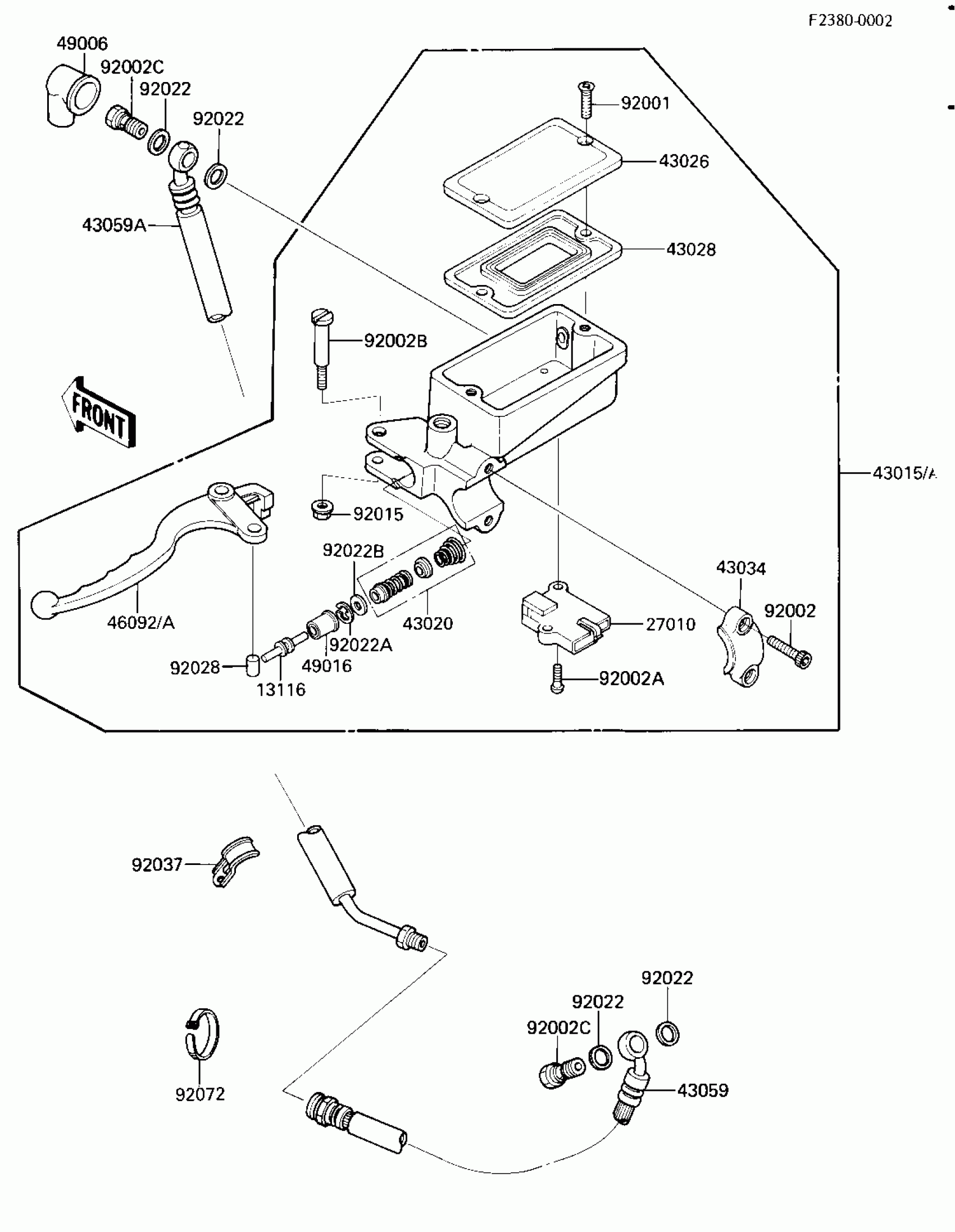

Find the part on the Clutch Master Cylinder diagram for your 1986 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Eliminator Clutch Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13116

ROD-PUSH,MASTER CYLINDER

13116-1110

1
Out of stock

27010

SWITCH,CLUTCH

27010-1171

1
Out of stock

43015A

CYLINDER-ASSY-MASTER,

43015-1306

1
Out of stock

43020

PISTON-COMP-BRAKE,CLUTCH

43020-1055

1
Out of stock

43026

CAP-BRAKE,FR

43026-1052

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1054

1
Out of stock

43059

HOSE-BRAKE

43059-1308

1
Out of stock

43059A

HOSE-BRAKE

43059-1309

1
Out of stock

46092A

LEVER-GRIP,CLUTCH

46092-1129

1
Out of stock

49006

BOOT,DUST

49006-1041

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

92001

SCREW,5MM,BLACK

92001-1727

1
Out of stock

92002

BOLT,SOCKET,6X20,BLACK

92002-1324

1
Out of stock

92002A

SCREW,4X16

92002-1325

1
Out of stock

92002B

BOLT,LEVER SET

92002-1561

1
Out of stock

92002C

BOLT

92002-1593

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1
Out of stock

92022A

CIRCLIP

92022-1605

1
Out of stock

92022B

WASHER,PISTON

92022-1606

1
Out of stock

92028

BUSHING,MASTER CYLINDER

92028-1310

1
Out of stock

92037

CLAMP

92037-1687

1
Out of stock

92072

BAND

92072-1190

1
Out of stock
