2025 Kawasaki Eliminator Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2025 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

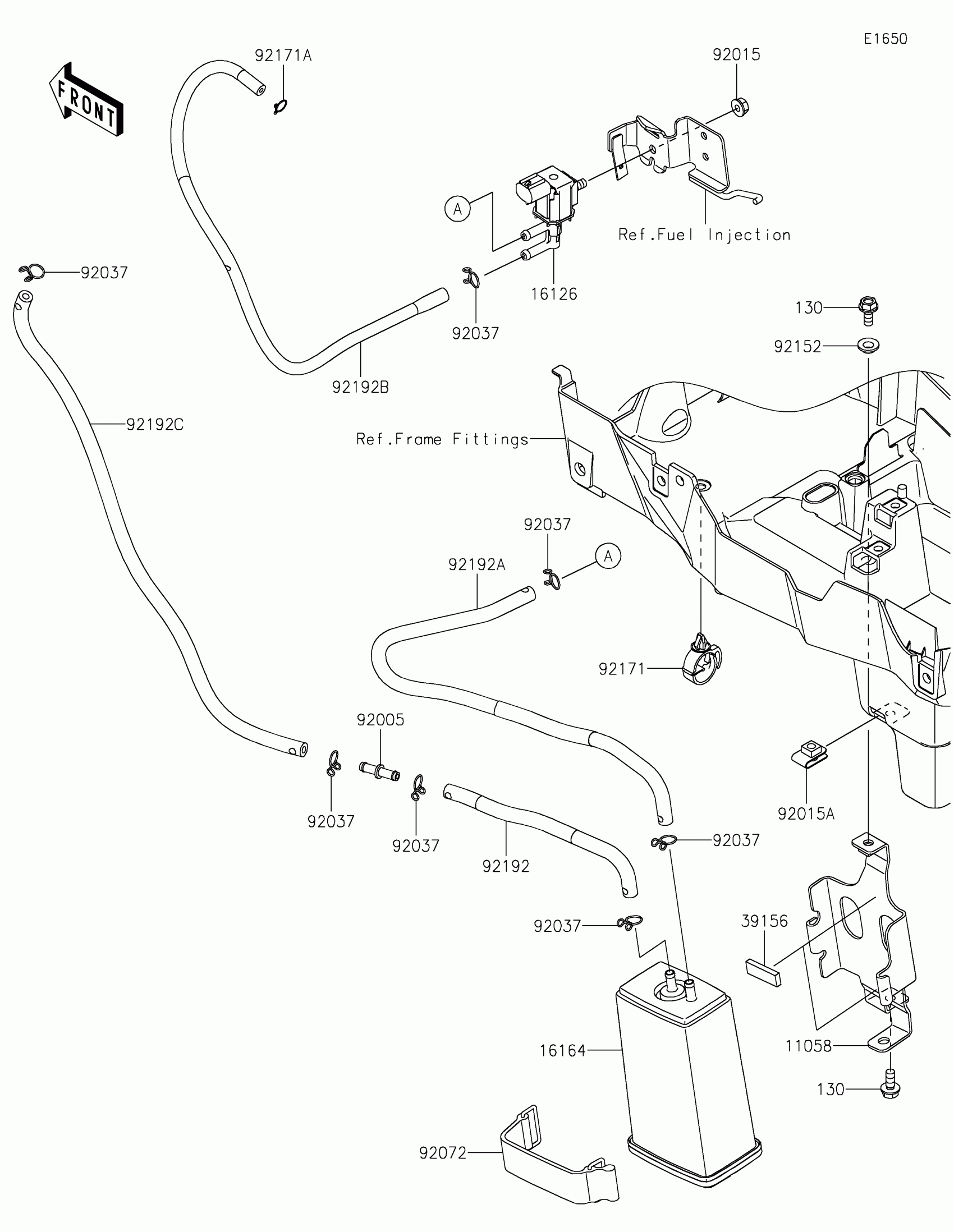

2025 Kawasaki Eliminator Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,CANISTER

11058-0614

1

$34.54

In stock

16126

VALVE,SOLENOID

16126-0705

1

$109.25

In stock

16164

CANISTER

16164-0012

1

$152.89

In stock

39156

PAD,10X30X4

39156-0927

1

$0.85

In stock

92005

FITTING

92005-0721

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92015A

NUT,6MM

92015-1602

1

$5.84

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92072

BAND,CANISTER

92072-0922

1

$11.17

In stock

92152

COLLAR,6.3X9.5X4.1

92152-1571

1

$4.75

In stock

92171

CLAMP,20MM DIA.

92171-0069

1

$2.29

In stock

92171A

CLAMP

92171-0573

1

$1.20

In stock

92192

1

$44.24

In stock

92192A

1

$60.06

In stock

92192B

1

$62.27

In stock

92192C

1

$41.12

In stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock
