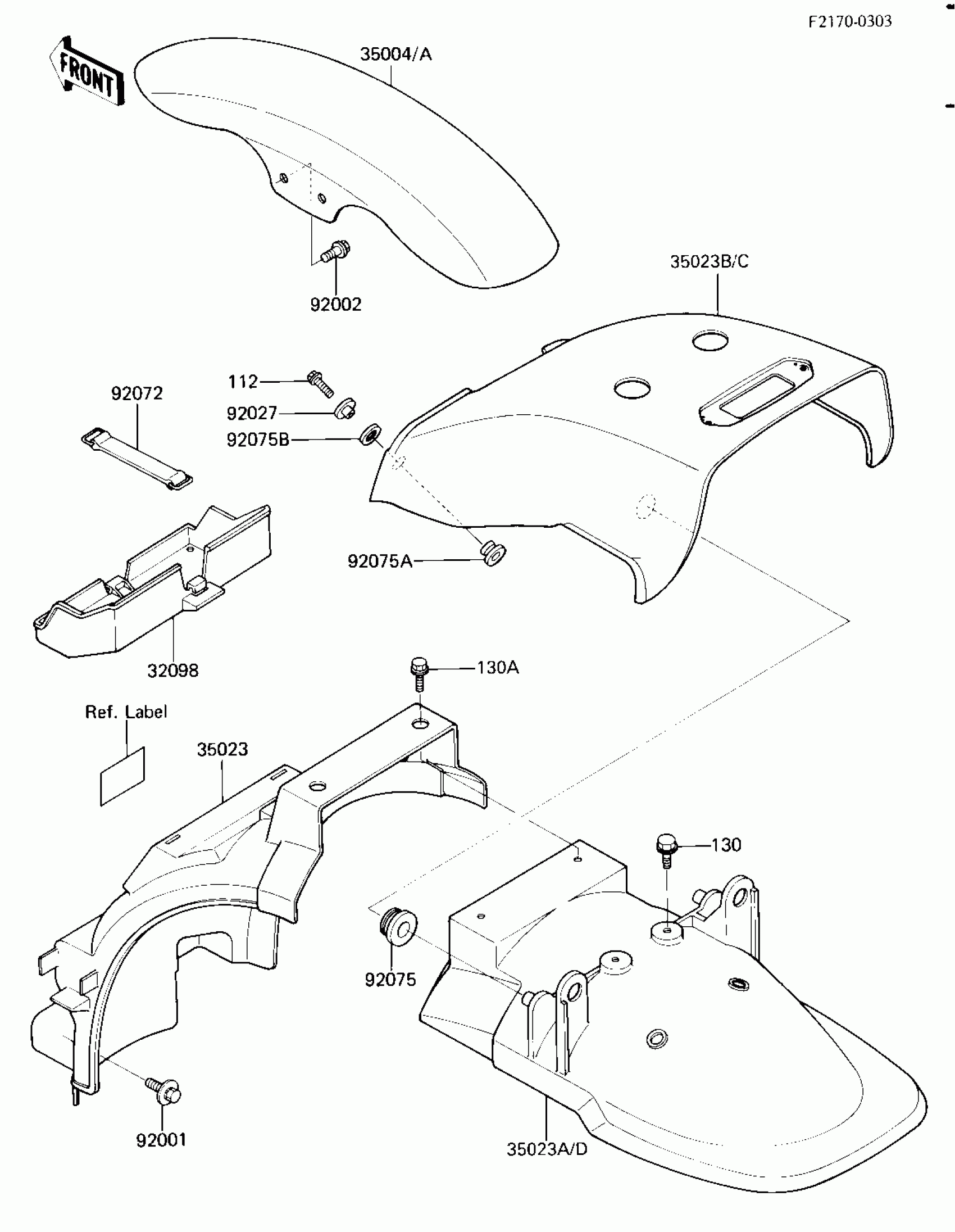

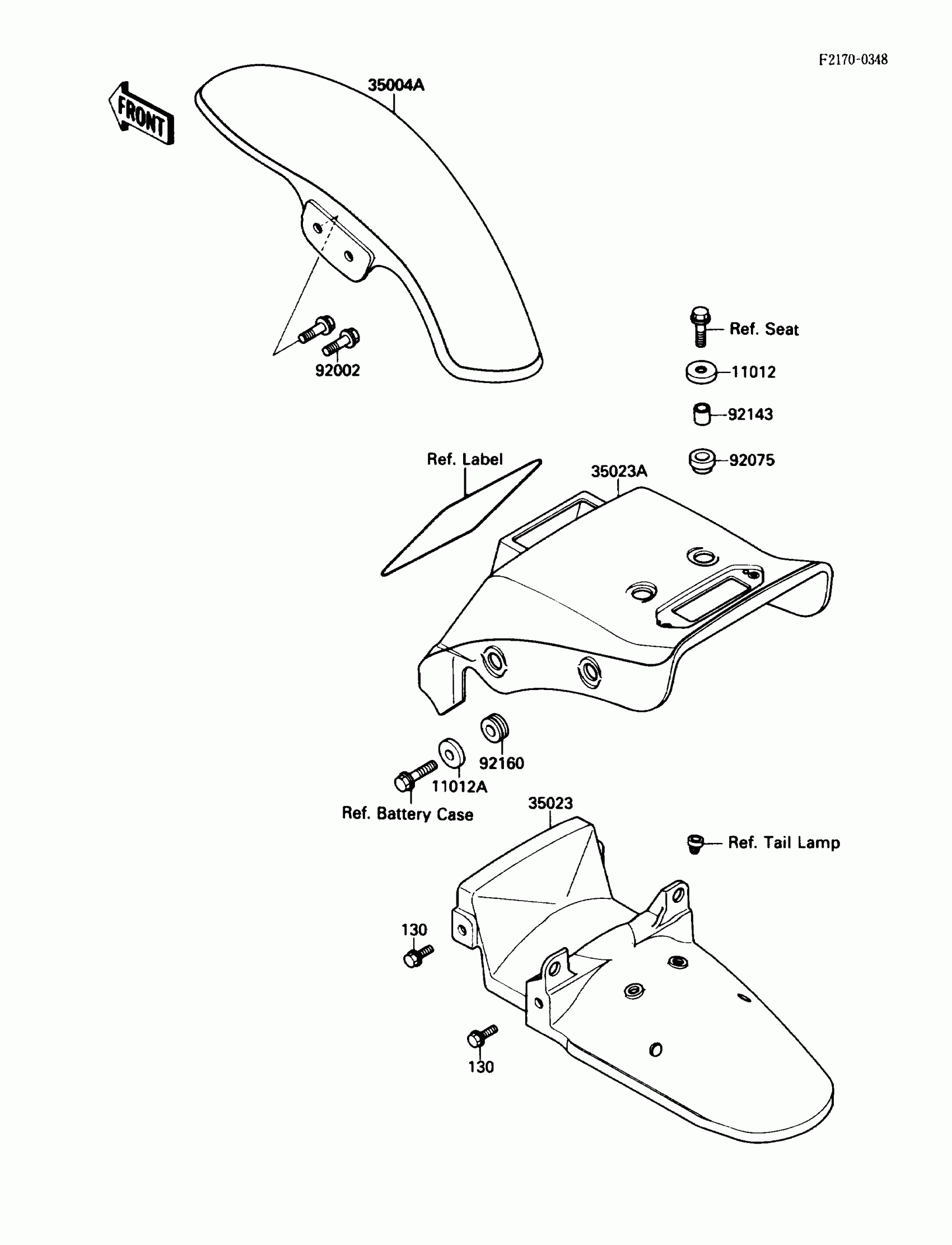

Kawasaki Eliminator FENDERS Diagram

Description

Price

32098

CASE-TOOL

32098-1066

Unavailable

35004

FENDER-FRONT,EBONY

35004-1175-H8

$280.35

35023

FENDER-REAR,FR

35023-1141

$65.46

35023B

FENDER-REAR,UPP,EBONY

35023-1143-H8

Unavailable

35023D

FENDER-REAR,RR,EBONY

35023-1154-H8

Unavailable

92001

BOLT,W/SP,6X16

92001-1763

$4.50

92002

BOLT,FLANGED,8X16

92002-1200

$4.92

92027

COLLAR,L=13.1

92027-251

Unavailable

92072

BAND,L=82

92072-053

$12.35

92075

DAMPER

92075-1057

$4.92

92075A

RUBBER,FENDER COVER

92075-174

$4.78

92075B

DAMPER,FEMALE

92075-175

$4.39

112

BOLT 6X22

112B0622

$3.48

130

BOLT-FLANGED

130B0614

Unavailable

130A

BOLT,FLANGED,6X20

130B0620

$1.69
