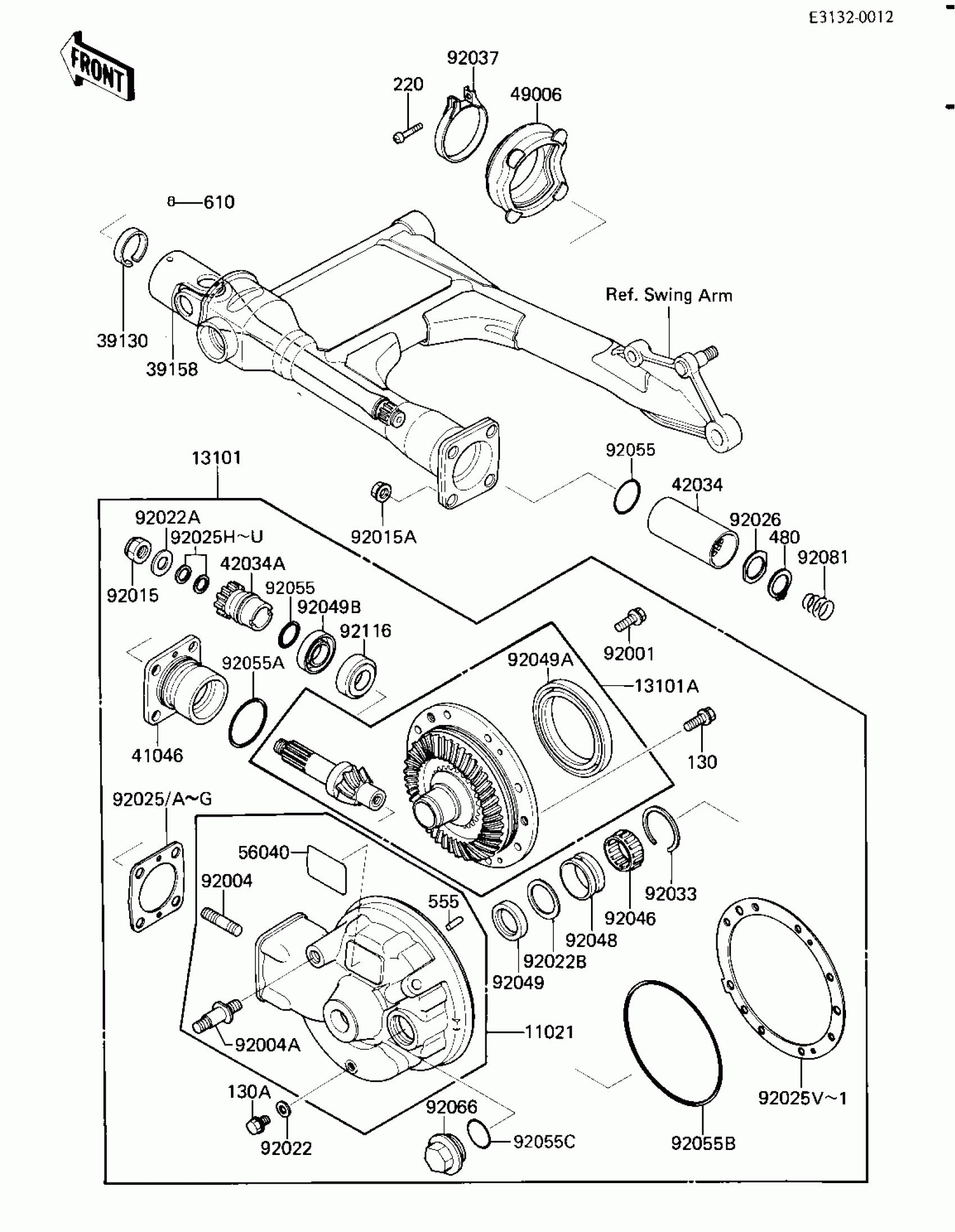

Kawasaki Eliminator DRIVE SHAFT/FINAL GEARS Diagram

#

Description
Price

11021

CASE-ASSY,FINAL GEAR,

11021-1057-F2

Unavailable

13101

GEAR-ASSY,FINAL,G.SIL

13101-1070-F2

Unavailable

13101A

GEAR-ASSY,REAR BEVEL

13101-5051

Unavailable

39130

SPRING-LEAF

39130-1002

$4.65

39158

SHAFT-ASSY-DRIVE

39158-1061

$322.97

41046

HOUSING-BEARING,BLACK

41046-1069

$210.80

42034

COUPLING,PROPELLER SHAFT,OUTER

42034-1092

$96.63

42034A

COUPLING

42034-1079

$136.61

49006

BOOT,PROPELLER SHAFT

49006-1059

$39.05

56040

LABEL-WARNING,OIL

56040-1047

$6.10

92001

BOLT,10X23

92001-1778

$5.93

92004

STUD,10X30,BLACK

92004-1045

$8.14

92004A

STUD,RR SHOCKABSORBER

92004-1047

$15.74

92015

NUT,16MM

92015-1059

Unavailable

92015A

NUT,FLANGED,10MM

92015-1180

$4.31

92022

WASHER,8.2X16X1

92022-1086

$3.92

92022A

WASHER,16X32X3.2

92022-1105

$11.49

92022B

WASHER,39X49.5X1

92022-1294

$7.24

92025

SHIM,T=0.15

92025-1052

Unavailable

92025A

SHIM,T=0.50

92025-1053

Unavailable

92025B

SHIM,T=0.60

92025-1054

Unavailable

92025C

SHIM,T=0.70

92025-1055

Unavailable

92025D

SHIM,T=0.80

92025-1056

Unavailable

92025E

SHIM,T=0.90

92025-1057

Unavailable

92025F

SHIM,T=1.00

92025-1058

Unavailable

92025G

SHIM,T=1.20

92025-1059

Unavailable

92025H

SHIM,T=1.30

92025-1214

Unavailable

92025I

SHIM,T=1.32

92025-1215

Unavailable

92025J

SHIM,T=1.34

92025-1216

Unavailable

92025K

SHIM,T=1.36

92025-1217

Unavailable

92025L

SHIM,T=1.38

92025-1218

Unavailable

92025M

SHIM,T=0.10

92025-1219

Unavailable

92025N

SHIM,T=0.20

92025-1220

Unavailable

920250

SHIM,T=0.30

92025-1221

Unavailable

92025P

SHIM,T=0.50

92025-1222

Unavailable

92025Q

SHIM,T=0.60

92025-1223

Unavailable

92025R

SHIM,T=0.70

92025-1224

Unavailable

92025S

SHIM,T=0.80

92025-1225

Unavailable

92025T

SHIM,T=0.90

92025-1226

Unavailable

92025U

SHIM,T=1.00

92025-1227

Unavailable

92025V

SHIM,T=0.10

92025-1625

Unavailable

92025W

SHIM,T=0.15

92025-1626

Unavailable

92025X

SHIM,T=0.20

92025-1627

Unavailable

92025Y

SHIM,T=0.30

92025-1628

Unavailable

92025Z

SHIM,T=0.60

92025-1629

Unavailable

920250

SHIM,T=0.90

92025-1630

Unavailable

920251

SHIM,T=1.20

92025-1631

Unavailable

92026

SPACER,26.2X36X2

92026-1085

$8.21

92033

RING-SNAP,52MM

92033-1074

$4.65

92037

CLAMP,BOOT FITTING

92037-1112

$16.72

92046

BEARING-NEEDLE,KTV384620E01 C3

92046-1057

$61.34

92048

RACE,ORT465021E01

92048-1019

$44.62

92049

SEAL-OIL,S-35477HS

92049-1025

$14.90

92049A

SEAL-OIL,S-901159HS

92049-1026

$40.70

92049B

SEAL-OIL,SC32487

92049-1033

$18.83

92055

RING-O,ID=32.7

92055-1037

Unavailable

92055A

RING-O,57.6X2.4

92055-1038

$7.62

92055B

RING-O,154X3

92055-1165

$11.37

92055C

RING-O,35.8MM

92055-1281

$7.34

92066

PLUG,OIL FILLER CAP,M.SILVER

92066-1006-7J

$16.53

92081

SPRING

92081-1183

$7.55

92116

BEARING-ROLLER,4T32005X

92116-1004

$47.99

130

BOLT-FLANGED,8X25

130G0825

$2.89

130A

BOLT-FLANGED,8X12

130X0812

Unavailable

220

SCREW-PAN-CROS

220B0430

$0.77

480

CIRCLIP-TYPE-C,26MM

480J2600

$10.03

555

PIN-SPRING

555A0428

$2.30

610

ROLLER,4X6

610A0406

$4.31
