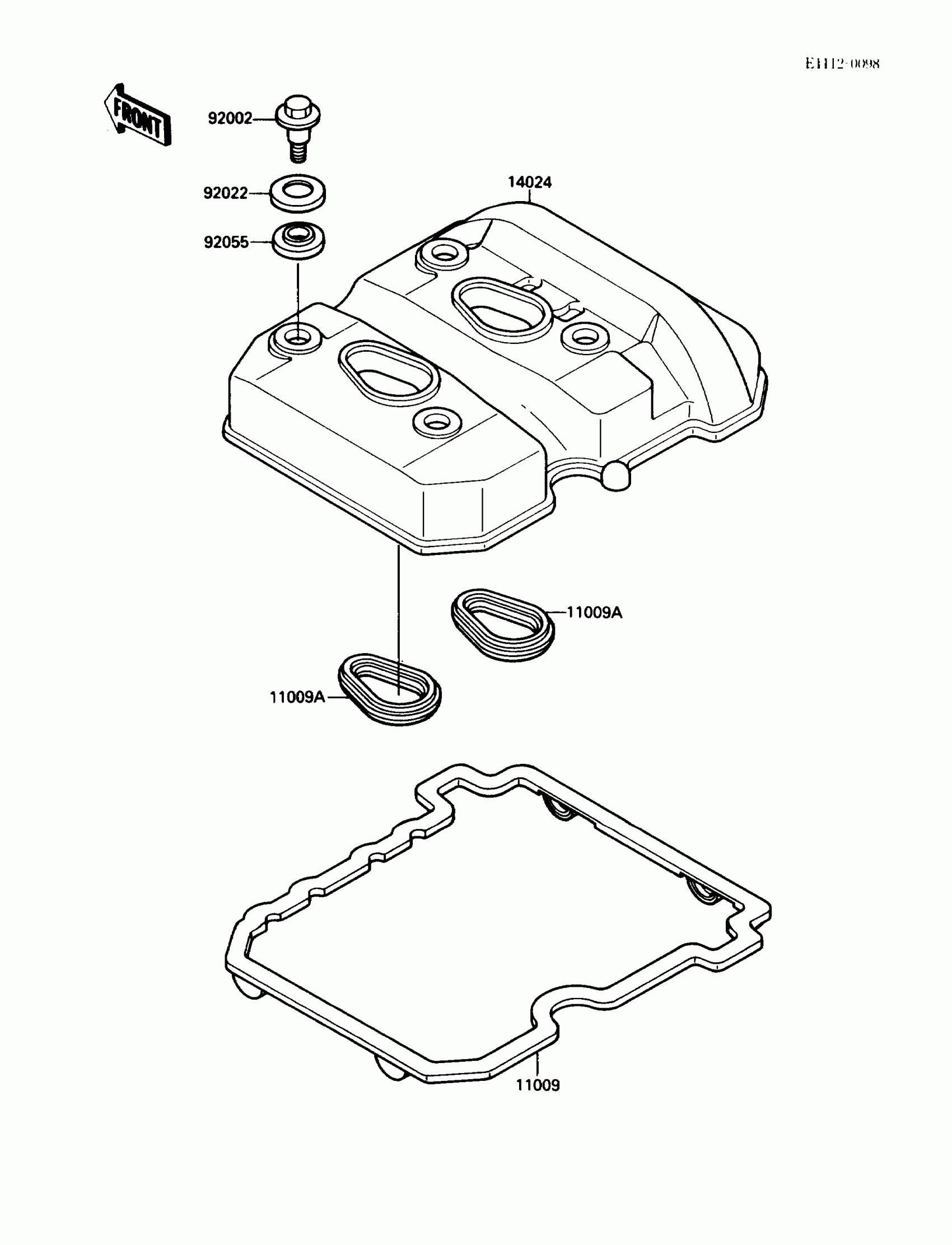

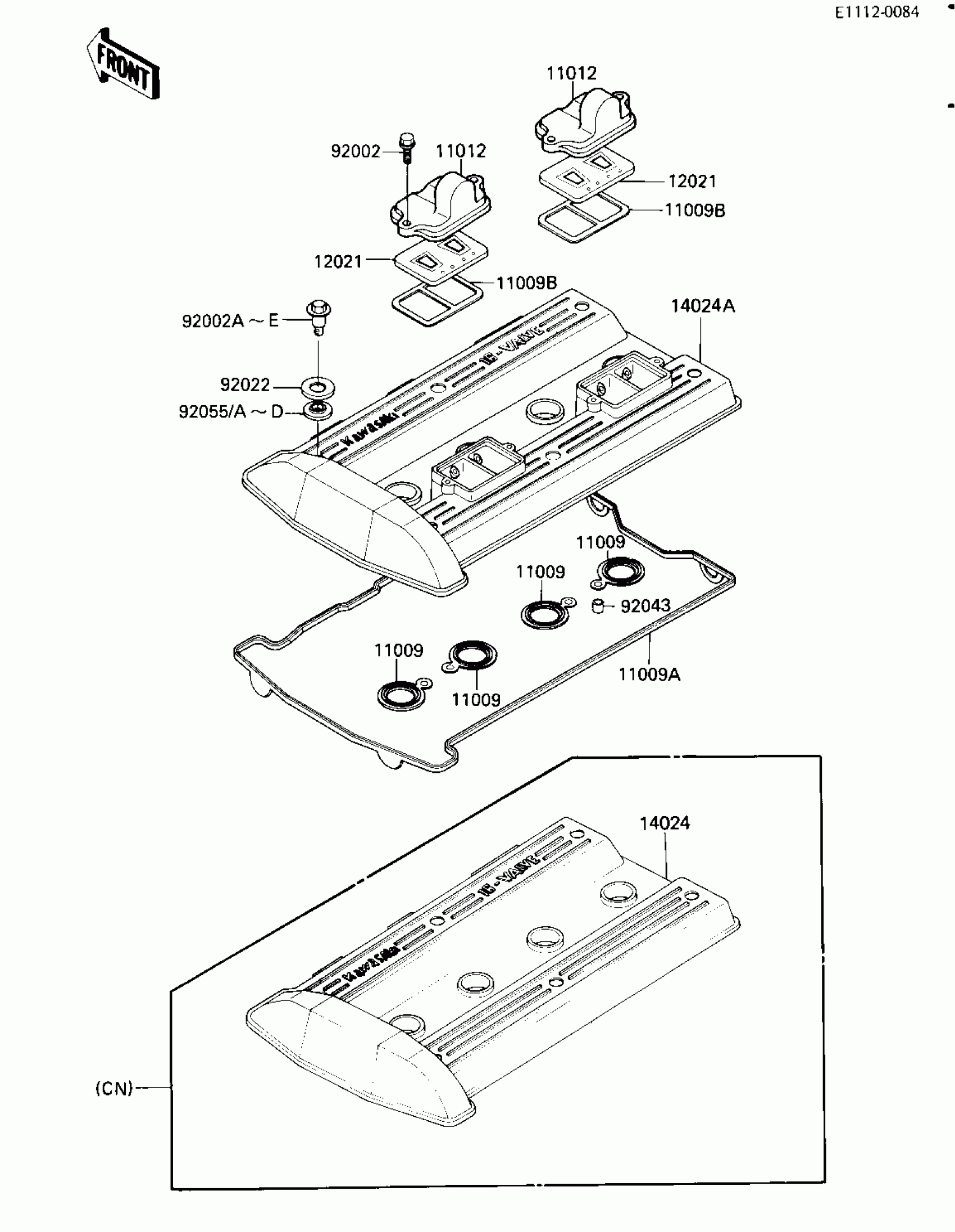

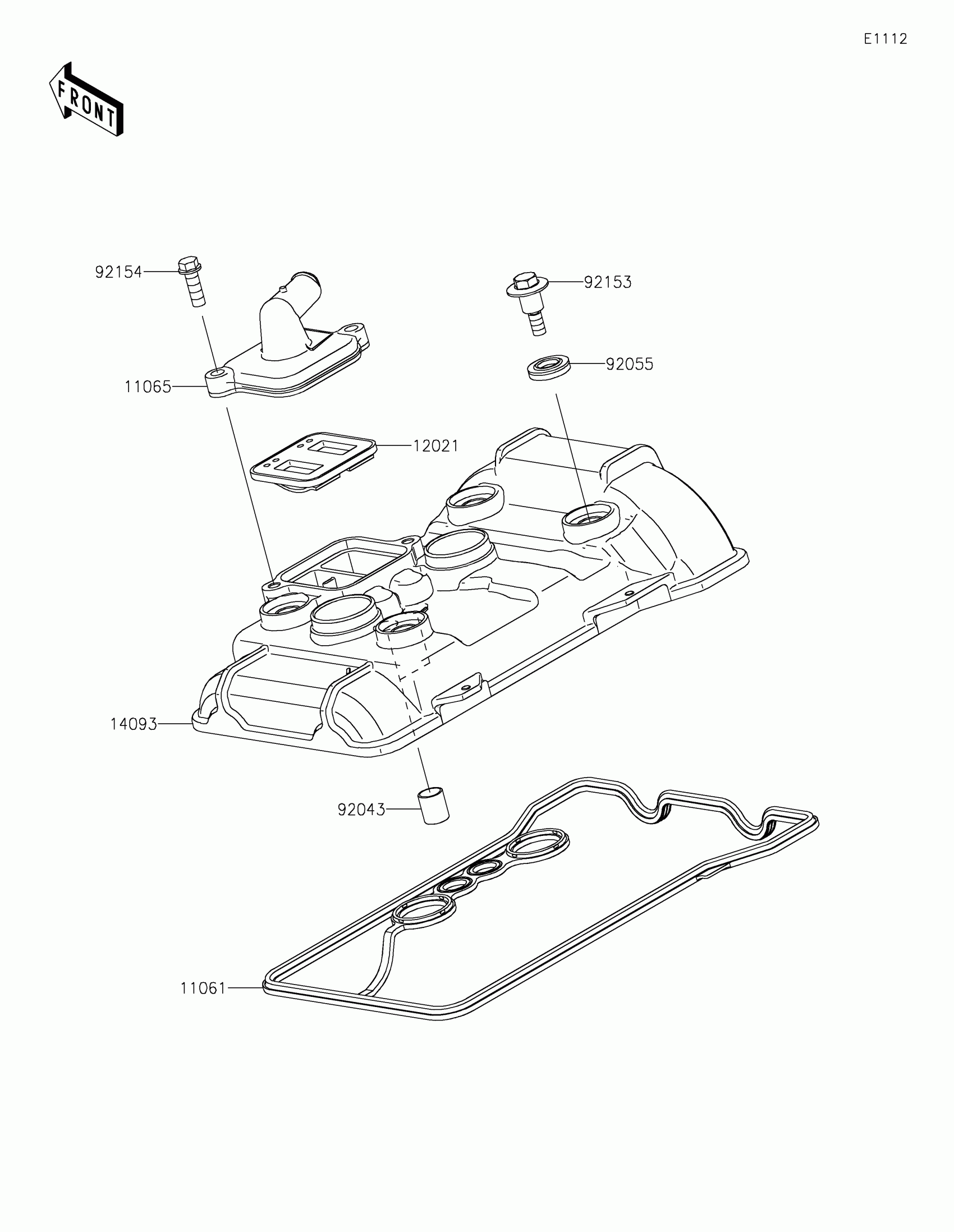

Kawasaki Eliminator CYLINDER HEAD COVER Diagram

Description

Price

11009

GASKET

11009-1377

$7.55

11009A

GASKET,CYLINDER HEAD COVER

11009-1378

$73.59

11009B

GASKET,REED VALVE

11009-1905

Unavailable

11012

CAP,REED VALVE

11012-1476

Unavailable

12021

VALVE-ASSY-REED

12021-1053

$74.72

14024

COVER,CYLINDER HEAD

14024-1082

Unavailable

14024A

COVER,CYLINDER HEAD

14024-1138

$369.56

92002

BOLT,6X22

92002-1068

$3.96

92002A

BOLT,FLANGED,6X23.5

92150-1447

$4.60

92022

WASHER,HEAD COVER BOLT

92022-1487

$5.59

92043

PIN,DOWEL,8X10

92043-1302

$1.03

92055

RING-O,HEAD COVER BOLT

92055-1225

$7.62
