1986 Kawasaki Eliminator Carburetor Parts Diagram

← All diagrams

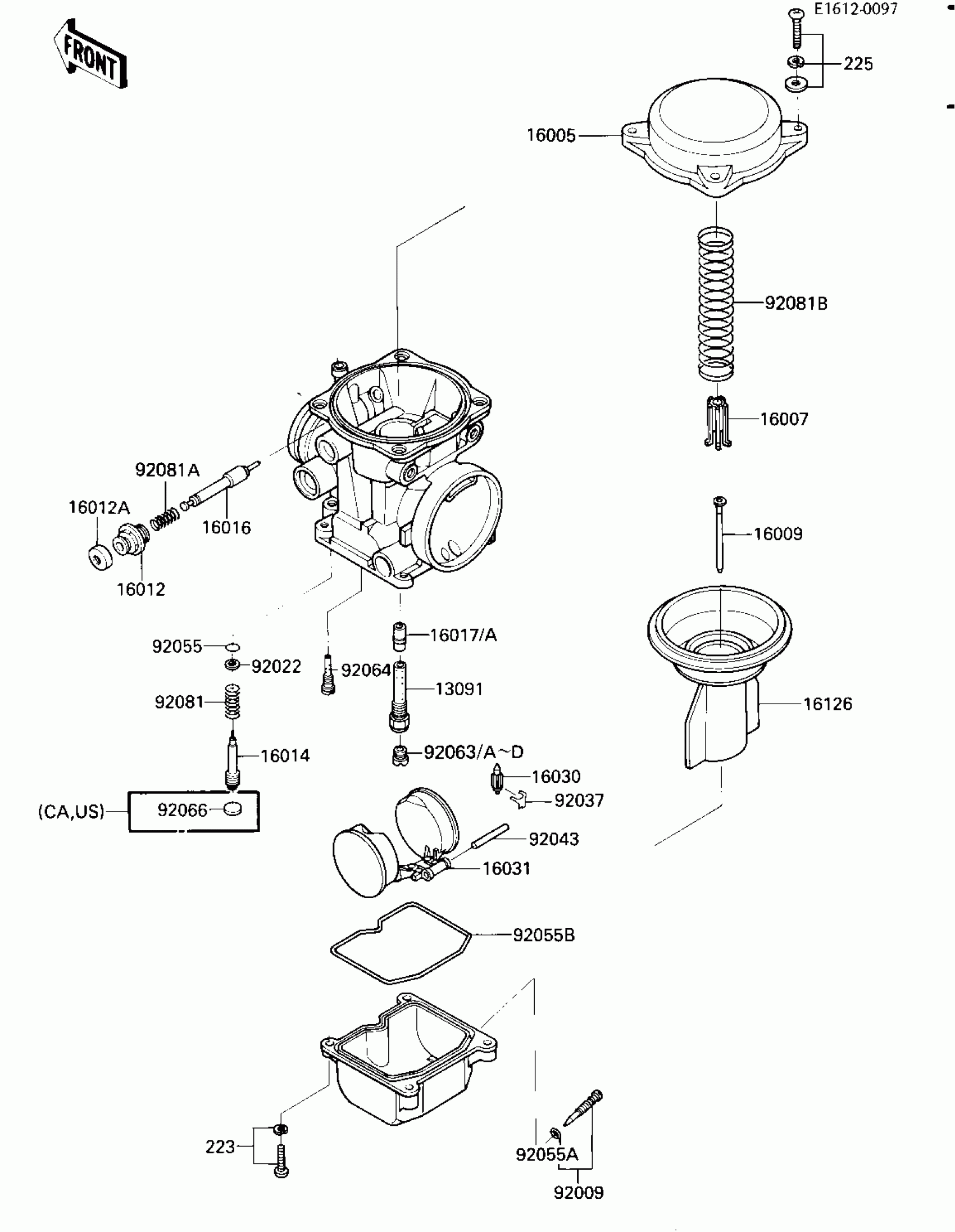

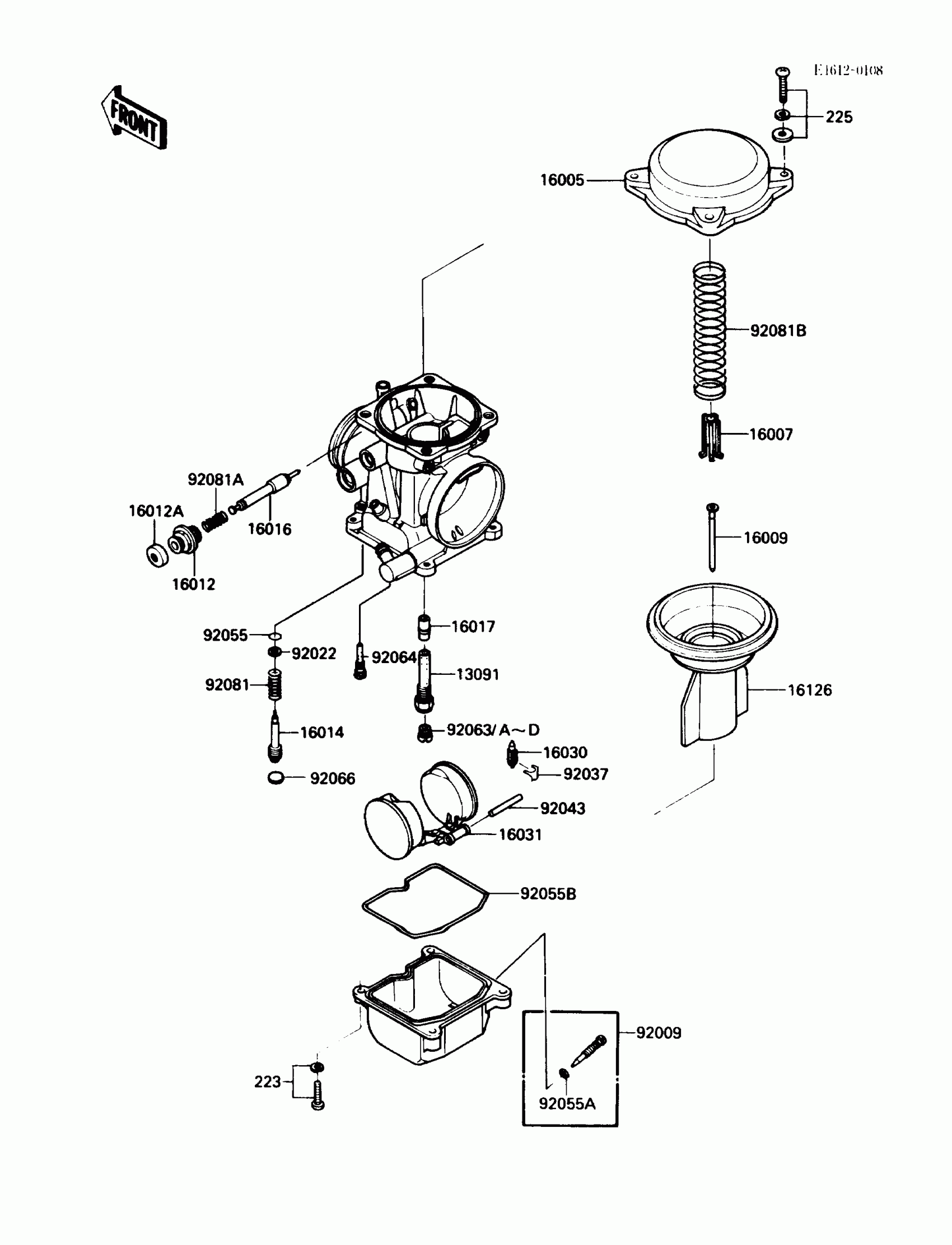

Find the part on the Carburetor Parts diagram for your 1986 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Eliminator Carburetor Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,NEEDLE JET

13091-1347

1
Out of stock

16005

TOP-CHAMBER,MIXING

16005-1056

1
Out of stock

16007

SEAT-SPRING,THROTTLE VALVE

16007-1120

1
Out of stock

16009

NEEDLE-JET,N27N

16009-1271

1
Out of stock

16012

CAP-STARTER PLUNGER

16012-1051

1
Out of stock

16012A

CAP-STARTER PLUNGER

16012-1052

1
Out of stock

16014

SCREW-PILOT AIR

16014-1054

1
Out of stock

16016

PLUNGER,STARTER

16016-1061

1
Out of stock

16017

JET-NEEDLE (Canada)

16017-1279

1
Out of stock

16017A

JET-NEEDLE,01D32

16017-1288

1
Out of stock

16030

VALVE-FLOAT

16030-1007

1
Out of stock

16031

FLOAT

16031-1056

1
Out of stock

16126

VALVE,VACUUM

16126-1160

1
Out of stock

92009

SCREW,DRAIN,M6X1.0

92009-1095

1
Out of stock

92022

WASHER,PLAIN

92022-1003

1
Out of stock

92037

CLAMP,FLOAT VALVE

16044-007

1
Out of stock

92043

PIN,FLOAT

92043-1148

1
Out of stock

92055

RING-O,PILOT ADJUST

92055-1002

1
Out of stock

92055A

RING-O

92055-1053

1
Out of stock

92055B

RING-O,FLOAT CHAMBER

92055-1222

1
Out of stock

92063

JET-MAIN,#125

92063-1069

1
Out of stock

92063A

JET-MAIN,#120

92063-1072

1
Out of stock

92063B

JET-MAIN,#122

92063-1073

1
Out of stock

92063C

JET-MAIN,#128

92063-1074

1
Out of stock

92063D

JET-MAIN,#130

92063-1075

1
Out of stock

92064

JET-PILOT,#35

92064-1101

1
Out of stock

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

1
Out of stock

92081

SPRING,PILOT ADJUST SCREW

92081-1002

1
Out of stock

92081A

SPRING,STARTER PLUNGER

92081-1761

1
Out of stock

92081B

SPRING,VACUUM VALVE

92081-1925

1
Out of stock

223

SCREW-PAN-WS-CROS,4X16

223C0416

1
Out of stock

225

SCREW-PAN-WSP-CROS,4X18

225C0418

1
Out of stock
