1989 Kawasaki Eliminator Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 1989 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

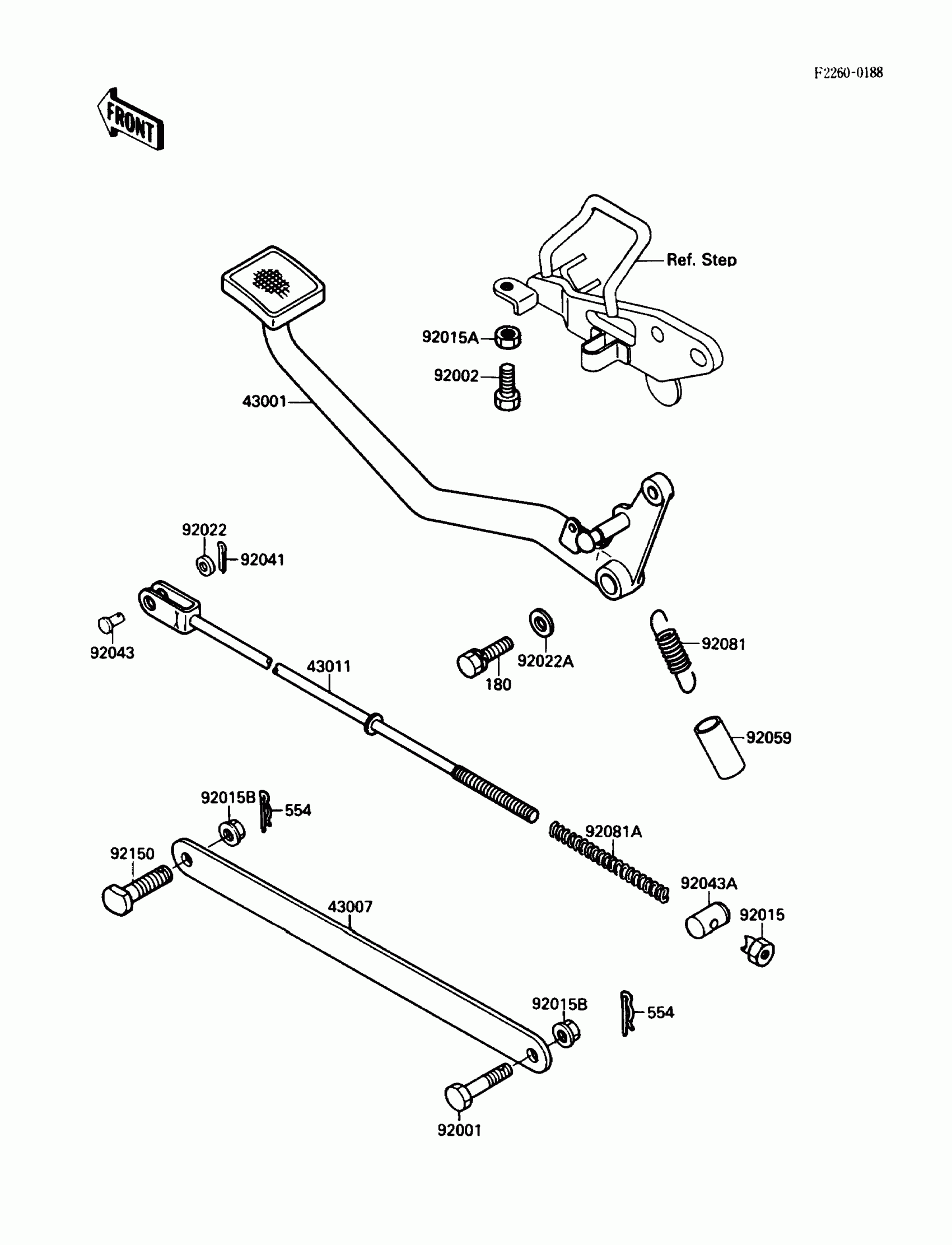

1989 Kawasaki Eliminator Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE,PEDAL

43001-1234

1
Out of stock

43007

ROD-TORQUE,RR

43007-1026

1
Out of stock

43011

ROD-BRAKE

43011-1141

1

$16.49

In stock

92001

BOLT,10X37

92001-1519

1

$7.49

In stock

92002

BOLT,6X20

92002-1373

1

$3.92

In stock

92015

NUT,BRAKE ROD

92015-042

1
Out of stock

92015A

NUT,6MM

92015-1391

1

$2.05

In stock

92015B

NUT,FLANGED,10MM

92015-1428

1

$3.97

In stock

92022

WASHER,6.5X11.5X0.8

92022-1556

1

$1.19

In stock

92022A

WASHER,6.5X20X1.6

92022-1557

1

$1.25

In stock

92041

COTTER,2.0X15

92041-1052

1

$0.94

In stock

92043

PIN,6X17

92043-064

1

$3.72

In stock

92043A

PIN,BRAKE ROD

92043-065

1

$4.42

In stock

92059

TUBE,14X17X40

92059-1983

1

$4.02

In stock

92081

SPRING,SIDE STAND

34025-009

1
Out of stock

92081A

SPRING,BRAKE ROD

43012-001

1

$3.69

In stock

92150

BOLT,ROD,10X27

92002-1992

1
Out of stock

180

BOLT-UPSET-WS,6X16

180D0616

1
Out of stock

554

PIN-SNAP,8MM

554A0800

1
Out of stock
