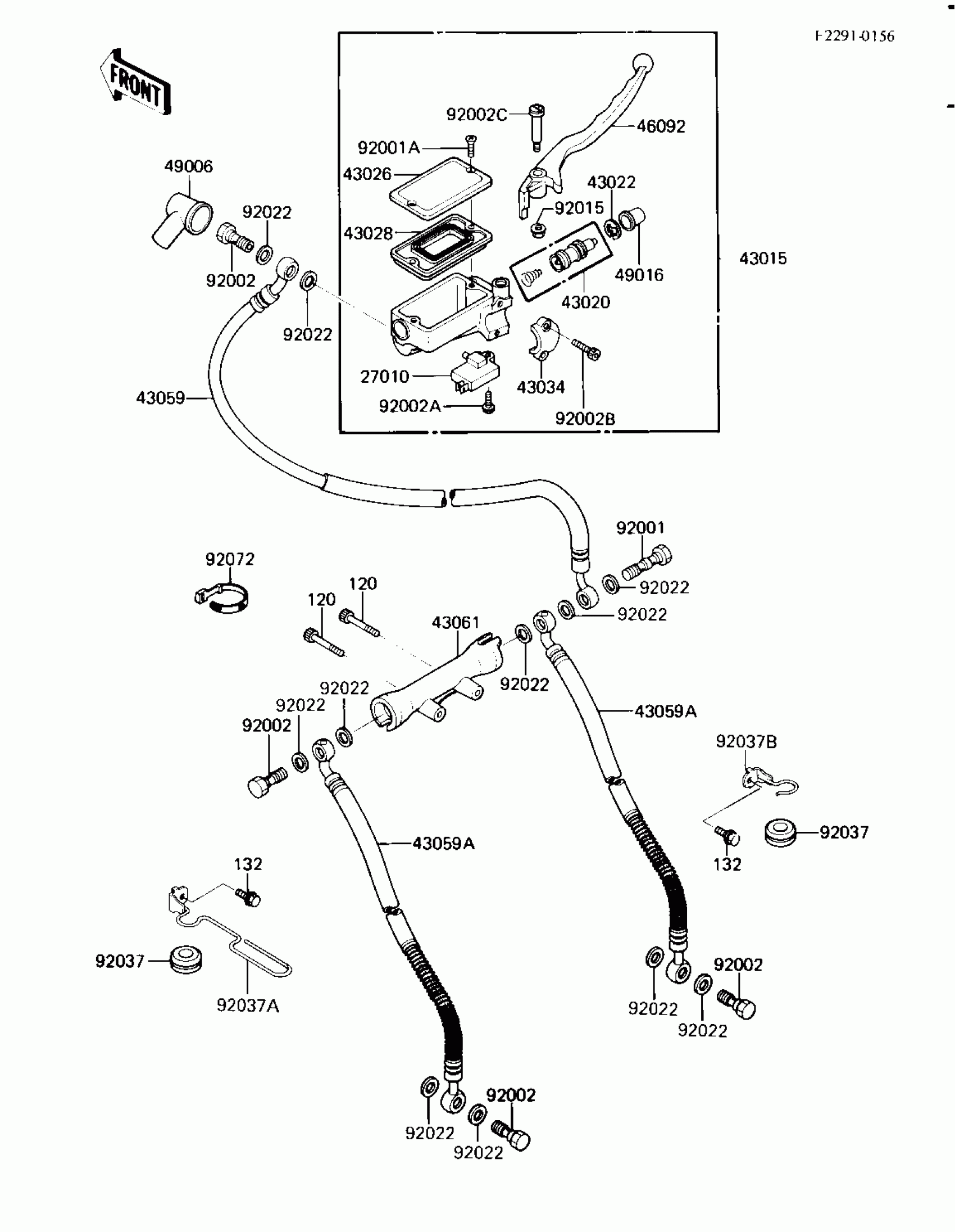

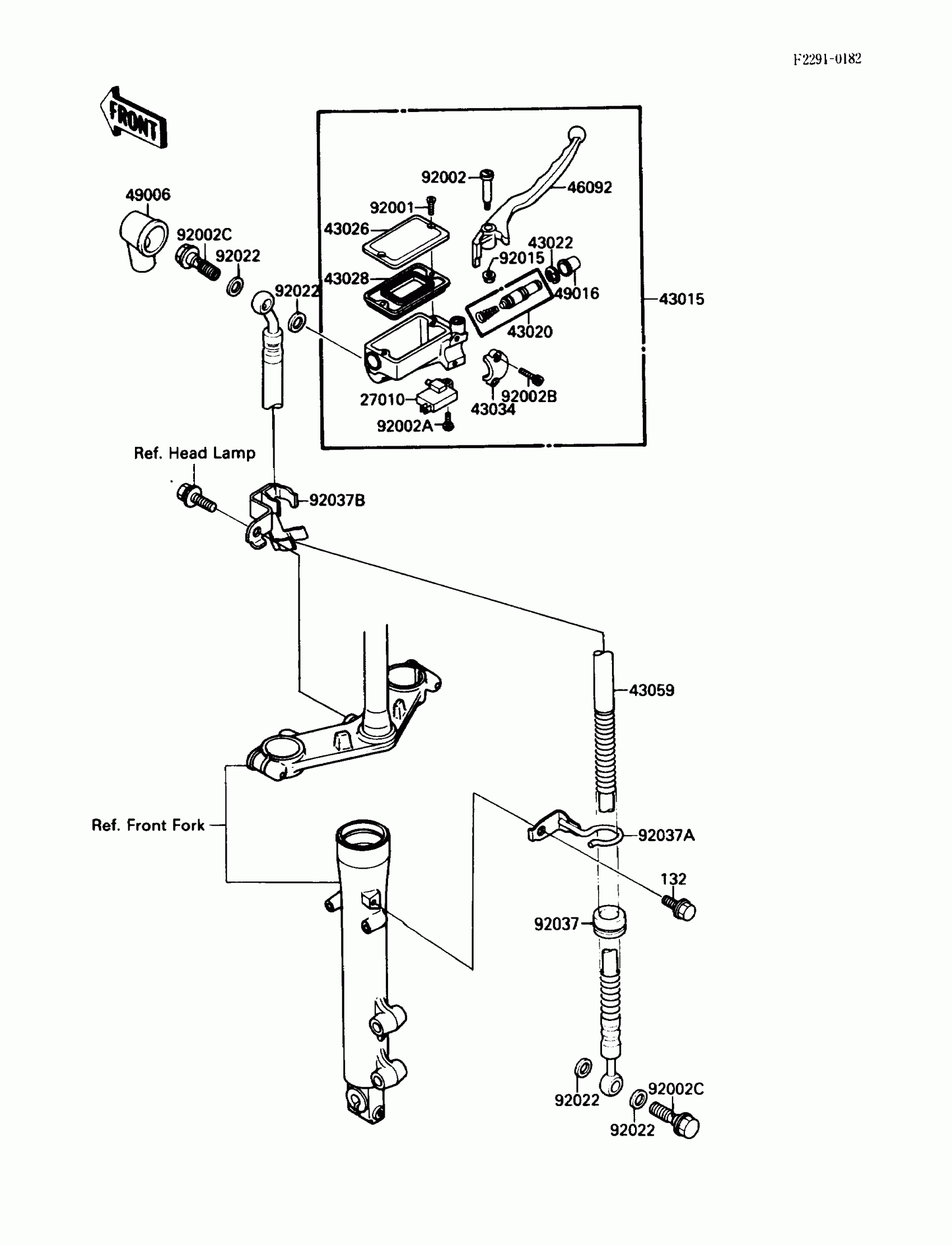

Find the part on the Front Master Cylinder diagram for your 1986 Kawasaki Eliminator, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Eliminator Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27010

SWITCH,BRAKE

27010-1170

1

$33.39

In stock

43015

CYLINDER-ASSY-MASTER,

43015-1293

1
Out of stock

43020

1

$59.90

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE,FR

43026-1052

1
Out of stock

43028

1

$21.24

In stock

43034

1

$36.55

In stock

43059

HOSE-BRAKE

43059-1305

1
Out of stock

43059A

HOSE-BRAKE

43059-1306

1

$113.39

In stock

43061

JOINT-BRAKE

43061-1056

1
Out of stock

46092

1

$47.96

In stock

49006

BOOT,DUST

49006-1041

1

$9.11

In stock

49016

1

$6.90

In stock

92001

BOLT,OIL,L=37

92002-1909

1
Out of stock

92001A

SCREW,5MM,BLACK

92001-1727

1

$3.27

In stock

92002

BOLT,OIL,L=23

92002-1888

1
Out of stock

92002A

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92002B

1

$7.54

In stock

92002C

BOLT,LEVER SET

92002-1561

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1

$4.37

In stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92037

GROMMET,HOSE CLAMP

43064-006

1

$3.43

In stock

92037A

CLAMP,BRAKE HOSE,LH

92037-1702

1

$24.10

In stock

92037B

CLAMP,BRAKE HOSE,RH

92037-1703

1

$24.10

In stock

92072

BAND,L=186

92072-056

1

$3.97

In stock

120

BOLT-SOCKET,6X45

120P0645

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132E0612

1
Out of stock
