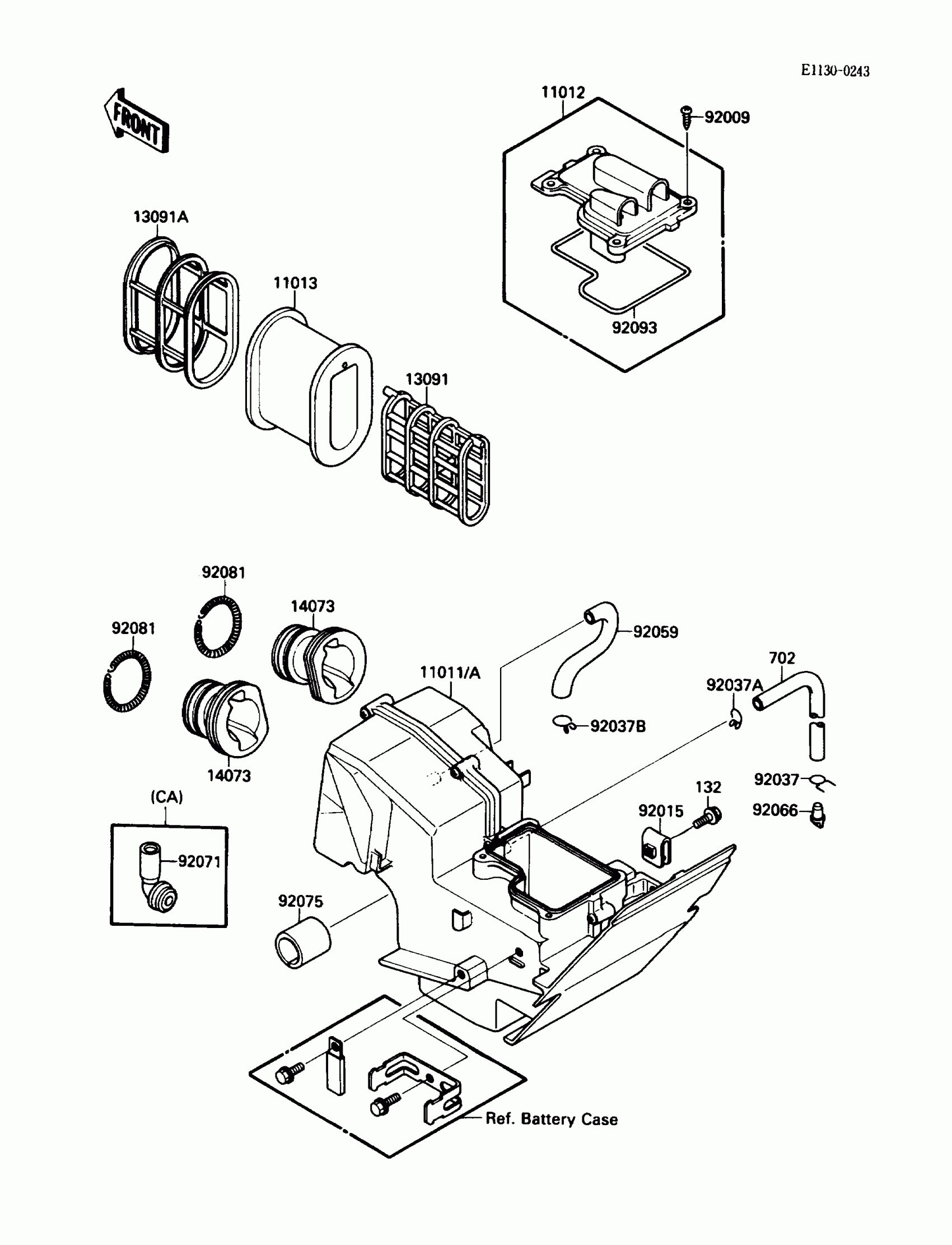

Kawasaki Eliminator Air Cleaner Diagram

Description

Price

11011

CASE-AIR FILTER

11011-1263

Unavailable

11011A

CASE-AIR FILTER

11011-1274

Unavailable

11012

CAP

11012-1597

Unavailable

11013

ELEMENT-AIR FILTER

11013-1154

$29.67

13091

HOLDER,ELEMENT

13091-1467

$16.93

13091A

HOLDER,ELEMENT

13091-1468

$15.74

14073

DUCT,AIR FILTER

14073-1307

$29.42

92009

SCREW,TAPPING,5X25

92009-1339

$4.80

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92037

CLAMP

92037-1712

$5.00

92037A

CLAMP,TUBE

92037-1972

$4.31

92037B

CLAMP,TUBE

92037-213

$4.31

92059

TUBE,BREAHER

92059-1676

$17.78

92066

PLUG,DRAIN

92066-1211

$8.51

92071

GROMMET,AIR FILTER

92071-1114

$24.61

92075

DAMPER,SEAT

92075-1652

$13.07

92081

SPRING,AIR FILTER DUCT

92081-1422

$12.95

92093

SEAL

92093-1249

Unavailable

132

BOLT-FLANGED-SMALL

132J0614

$2.33

702

TUBE-RUBBER,7X10X200

702A07200

$13.38
