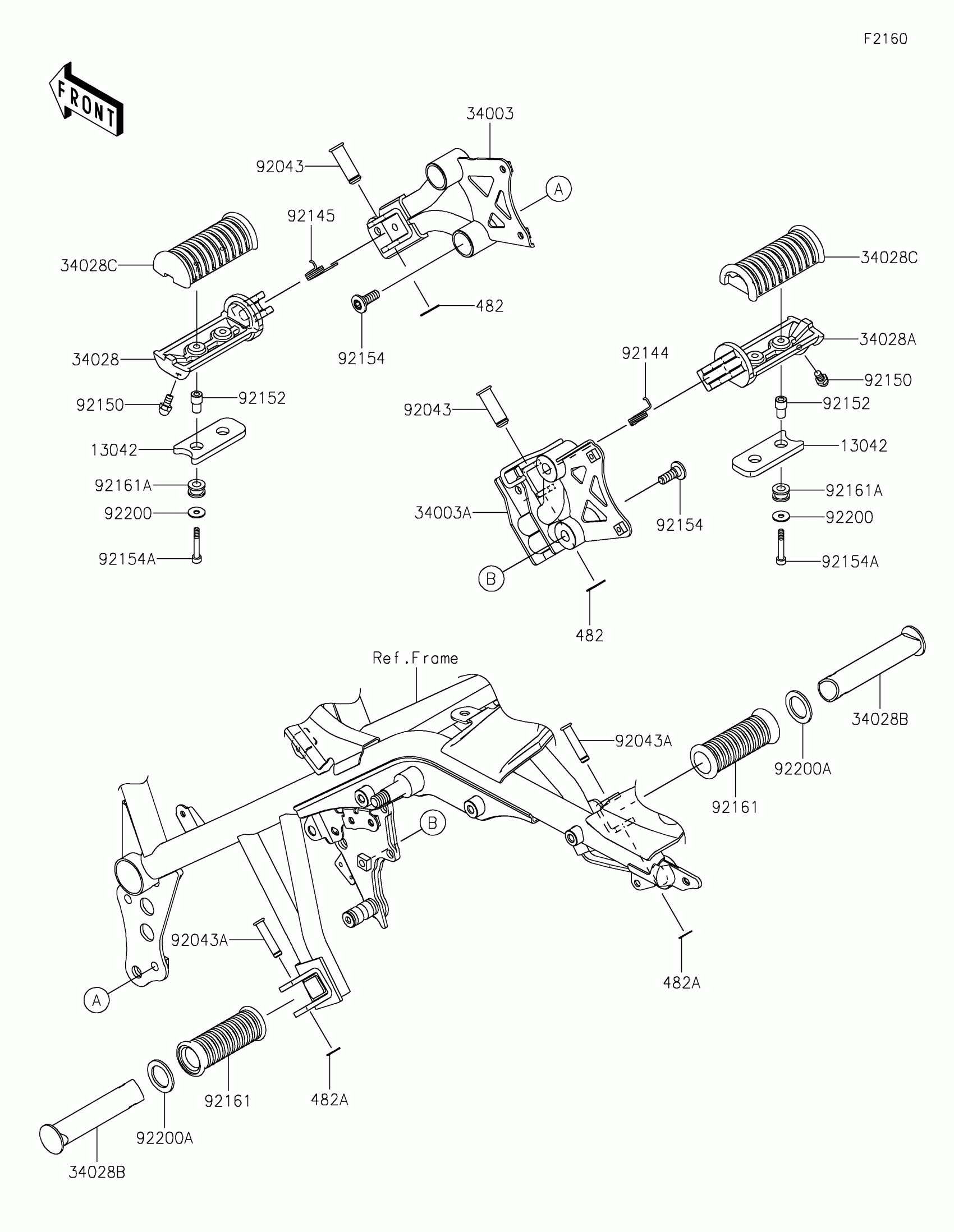

Kawasaki Eliminator ABS Footrests Diagram

Description

Price

13042

WEIGHT

13042-0812

$13.19

34003

HOLDER-STEP,FR,LH

34003-0198

$118.89

34003A

HOLDER-STEP,FR,RH

34003-0199

$118.89

34028

STEP,FR,LH

34028-0316

$51.39

34028A

STEP,FR,RH

34028-0317

$51.39

34028B

STEP,RR

34028-0344

$23.45

34028C

STEP,RUBBER

34028-0410

$25.03

92043

PIN,12X37

92043-0150

$11.30

92043A

PIN,8X36.5

92043-1339

$7.84

92144

SPRING,STEP RETURN

92144-1568

$6.51

92145

SPRING,STEP RETURN,LH

92145-0360

$3.87

92150

BOLT,BANK SENSER

92150-1153

$7.84

92152

COLLAR

92152-3789

$22.86

92154

BOLT,SOCKET,8X23

92154-7054

$6.29

92154A

BOLT,SOCKET,5X33

92154-7193

$3.18

92161

DAMPER,STEP

92161-0232

$16.53

92161A

DAMPER,8X16X8

92161-2082

$2.70

92200

WASHER,5.2X16X1.2

92200-0583

$1.94

92200A

WASHER,22.5X33X2.3

92200-1482

$2.75

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

482A

CIRCLIP-TYPE-E

482EA7000

$3.92
