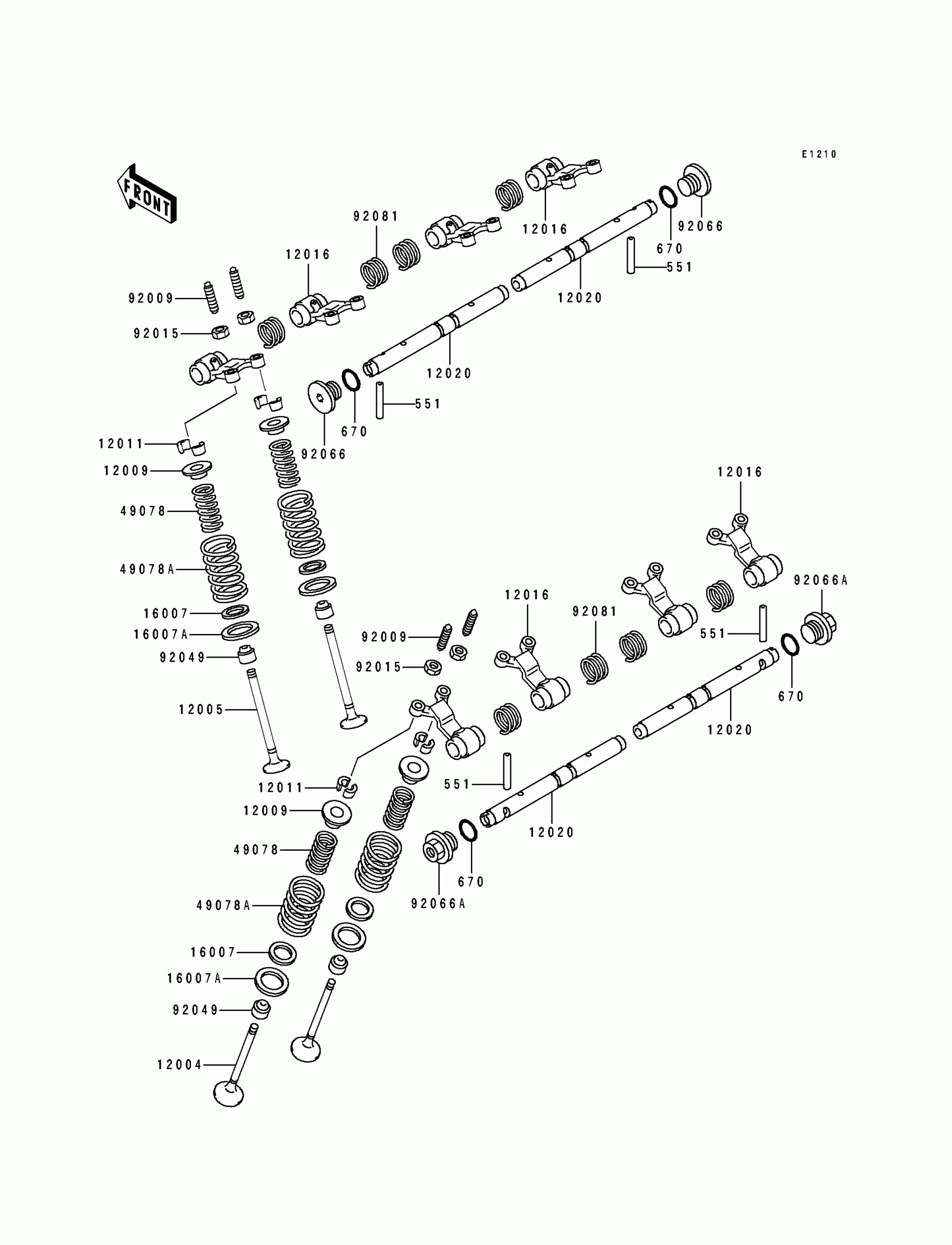

Kawasaki Eliminator 600 Valve(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-1114

Unavailable

12005

VALVE-EXHAUST

12005-1062

$70.91

12009

RETAINER-VALVE SPRING

12009-1060

$10.28

12011

COLLET

12011-1051

$1.96

12016

ARM-ROCKER

12016-1062

$83.19

12020

SHAFT-ROCKER

12020-1058

Unavailable

16007

SEAT-SPRING,12.1X16.2X0.5

16007-1177

$5.54

16007A

SEAT-SPRING,17.5X23.8X0.5

16007-1178

$6.16

49078

SPRING-ENGINE VALVE,OUTER

49078-1060

Unavailable

49078A

SPRING-ENGINE VALVE,INNER

49078-1061

Unavailable

92009

SCREW,VALVE ADJUST

92009-1109

$2.29

92015

NUT,5MM

92015-1529

Unavailable

92049

SEAL-OIL,VSB58.558

92049-1218

$4.08

92066

PLUG,14X11.5

92066-1192

$24.61

92066A

PLUG

92066-1257

Unavailable

92081

SPRING,ROCKER ARM

92081-1636

$15.76

551

PIN-DOWEL

551A0540

$3.35

670

O RING,15MM

670B2015

$1.42
