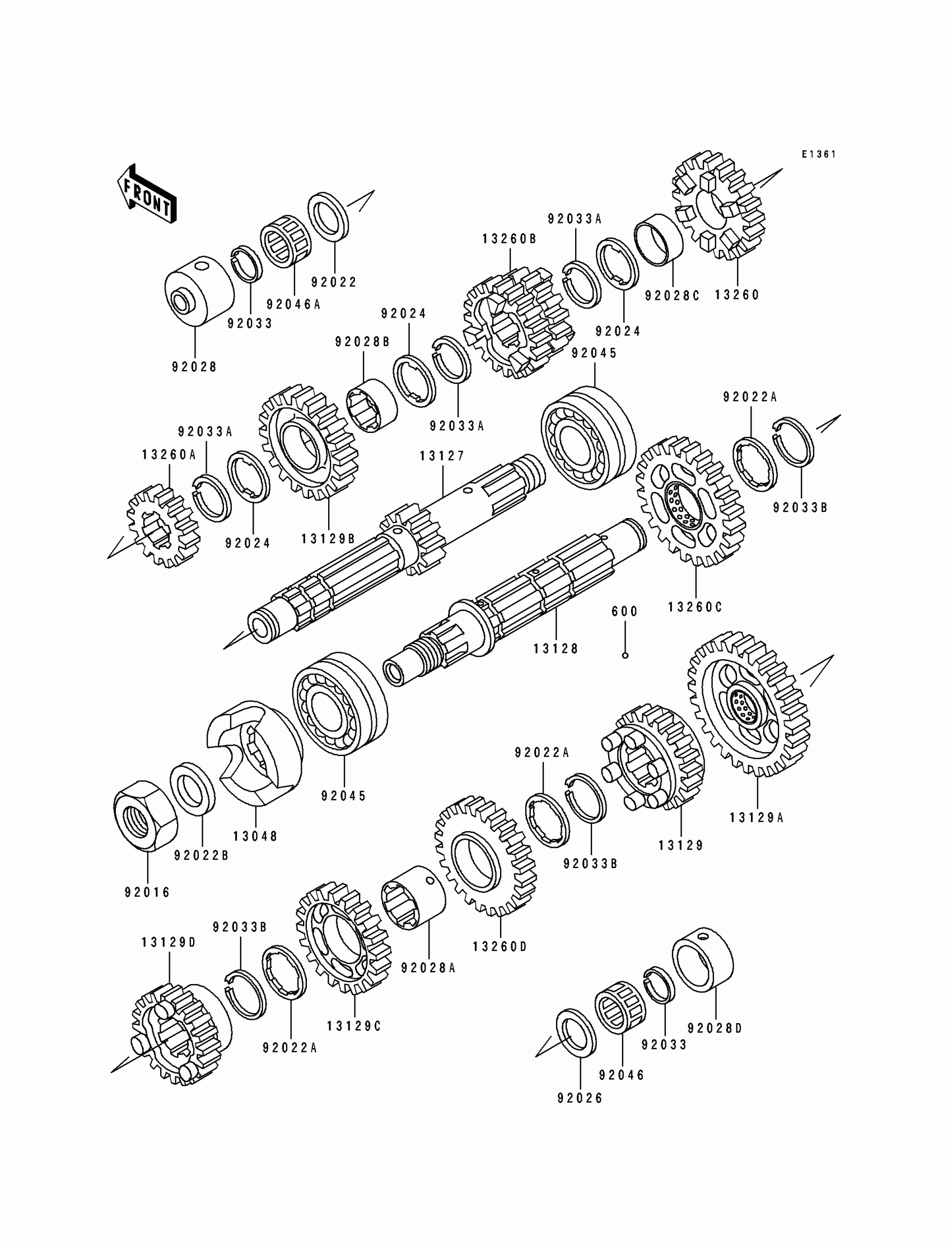

Kawasaki Eliminator 600 Transmission Diagram

CAM-DAMPER

13048-1067

Unavailable

SHAFT-TRANSMISSION INPUT,14T

13127-1136

Unavailable

SHAFT-TRANSMISSION OUTPUT

13128-1133

Unavailable

GEAR,OUTPUT 5TH,25T

13129-1083

Unavailable

GEAR,OUTPUT LOW,36T

13129-1564

$151.72

GEAR,INPUT TOP,27T

13129-1658

Unavailable

GEAR,OUTPUT 4TH,27T

13129-1660

$143.68

GEAR,OUTPUT TOP,23T

13129-1662

Unavailable

GEAR,INPUT 5TH,26T

13260-1203

$128.70

GEAR,INPUT 2ND,18T

13260-1507

$110.85

GEAR,INPUT 3RD&4TH,21T&24T

13260-1508

$143.68

GEAR,OUTPUT 2ND,32T

13260-1509

$147.47

GEAR,OUTPUT 3RD,29T

13260-1510

Unavailable

NUT,20MM

92016-028

$9.91

WASHER,20.5X30X1,STEEL

92022-112

$8.86

WASHER,TOOTHED,28.3X33.5X1

92022-1139

$7.22

WASHER,20.3X32X4.5

92022-1692

Unavailable

WASHER,TOOTHED,25.5X32X1

92024-033

$8.19

SPACER,20.3X30X2.0

92026-1022

$5.59

BUSHING,INPUT SHAFT

92028-1199

Unavailable

BUSHING,OUTPUT 3RD&4TH GEAR

92028-1364

$35.90

BUSHING,INPUT TOP GEAR

92028-1552

$31.84

BUSHING

92028-1639

$21.93

BUSHING,26X34X16.6

92028-180

$28.82

RING-SNAP,20MM

92033-015

$4.26

RING-SNAP,24MM

92033-026

$8.79

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

BEARING-BALL,83993SH2-CS

92045-035

$73.57

BEARING-NEEDLE,VS20/14A

92046-1030

$25.43

BEARING-NEEDLE,20V2715

92046-1045

Unavailable

BALL-STEEL,5/32

600A0500

$0.81
