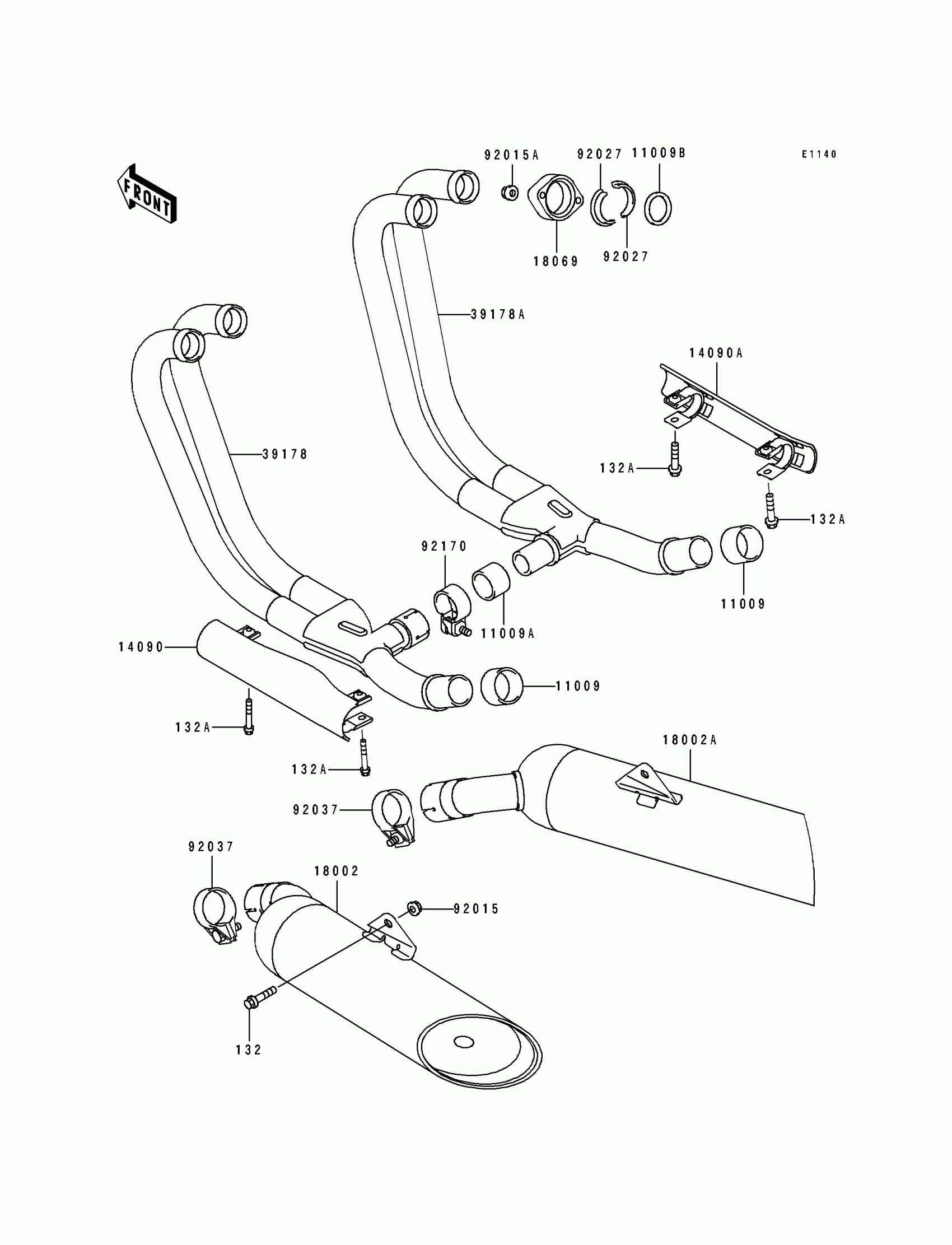

Kawasaki Eliminator 600 Muffler(s) Diagram

Description

Price

11009

GASKET,EXHAUST MANIFOLD

11009-1668

$31.85

11009A

GASKET,EXHAUST PIPE CONNECTING

11009-1718

$27.27

11009B

GASKET,EXHAUST PIPE H

11009-1866

$8.25

14090

COVER,EXHAUST MANIFOLD,LH

14090-1574

Unavailable

14090A

COVER,EXHAUST MANIFOLD,RH

14090-1575

Unavailable

18002

BODY-COMP-MUFFLER,LH

18002-1663

Unavailable

18002A

BODY-COMP-MUFFLER,RH

18002-1664

Unavailable

18069

HOLDER-EXHAUST PIPE

18069-1025

$24.02

39178

MANIFOLD-COMP-EXHAUST,LH

39178-1109

Unavailable

39178A

MANIFOLD-COMP-EXHAUST,RH

39178-1110

$432.11

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92015A

NUT,CAP,6MM

92015-1385

$4.31

92027

COLLAR

92027-1365

$7.22

92037

CLAMP,MUFFLER

92037-1258

$15.89

92170

CLAMP,MUFFLER

92170-1454

$11.71

132

BOLT-FLANGED-SMALL,8X35

132E0835

$5.52

132A

BOLT-FLANGED-SMALL,6X40

132Y0640

$4.80
