Partiron

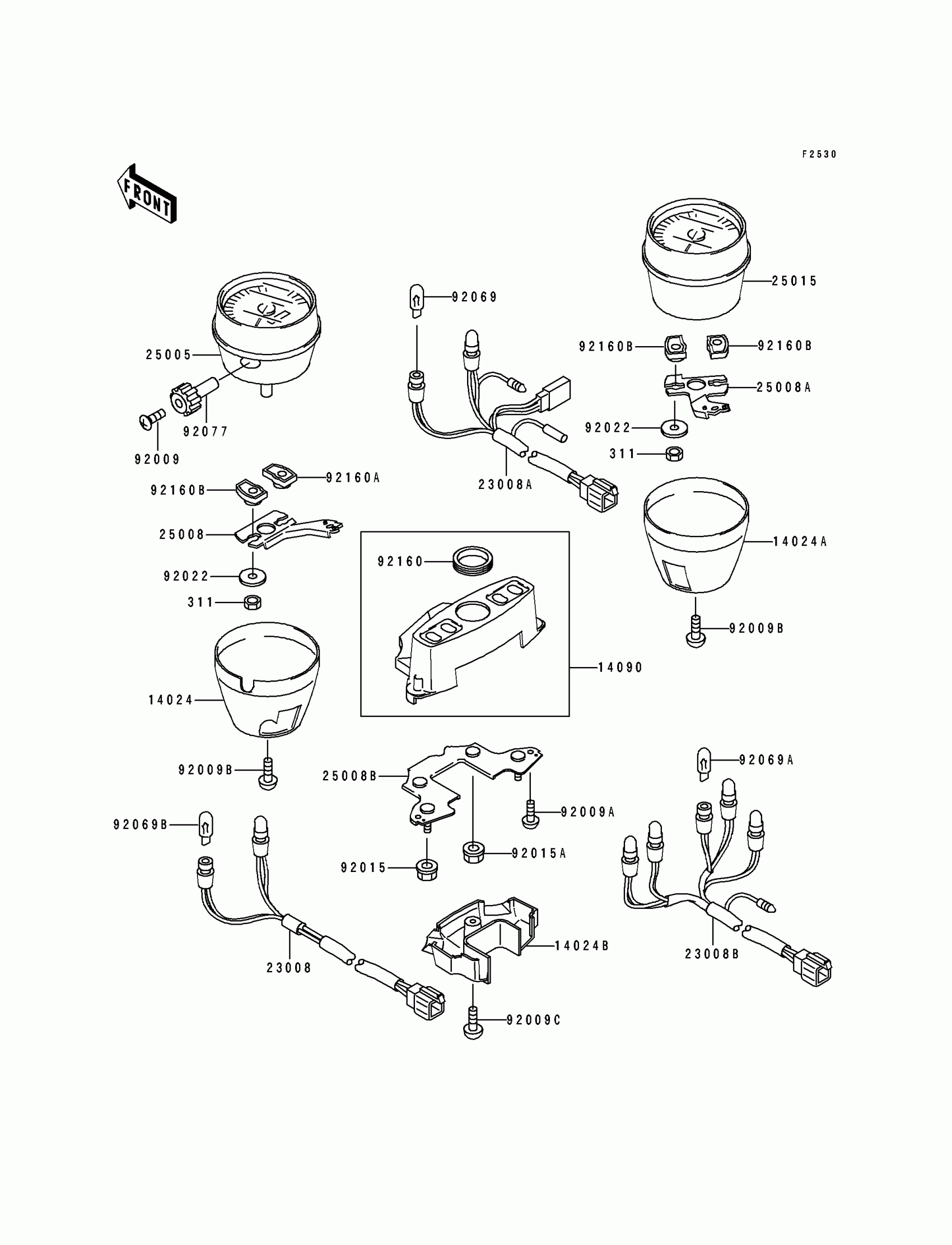

Kawasaki Eliminator 600 Meter(s) Diagram

#

Description
Price

14024

COVER,SPEEDOMETER

14024-1986

$91.88

14024A

COVER,TACHOMETER

14024-1987

$91.88

14024B

COVER,PILOT BOX,LWR

14024-1989

Unavailable

14090

COVER,PILOT BOX,UPP

14090-1353

$67.87

23008

SOCKET-ASSY,SPEEDOMETER

23008-1460

Unavailable

23008A

SOCKET-ASSY,TACHOMETER

23008-1484

Unavailable

23008B

SOCKET-ASSY,PILOT BOX

23008-1516

Unavailable

25005

SPEEDOMETER,MPH

25005-1586

$394.30

25008

BRACKET-METER,SPEED

25008-1171

Unavailable

25008A

BRACKET-METER,TACHO

25008-1181

Unavailable

25008B

BRACKET-METER,PILOT BOX

25008-1197

Unavailable

25015

TACHOMETER,X1000R/MIN

25015-1334

$519.64

92009

SCREW,2X6,BLACK

92009-1172

$2.61

92009A

SCREW,TAPPING,4X12

92009-1395

$4.65

92009B

SCREW,TAPPING,4X16

92009-1601

$3.24

92009C

SCREW,4X6

92009-1690

$3.91

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,5.2X16X1.2

92022-263

$1.66

92069

BULB,12V 3W,T7

92069-1020

$6.52

92069A

BULB,14V 3W,T6.5

92069-1068

$5.00

92069B

BULB,12V 1.7W T-7

92069-1085

$7.38

92077

KNOB,RESET TRIP

92077-1096

$17.50

92160

DAMPER,IGNITION SWITCH

92160-1179

$8.89

92160A

DAMPER,METER

92160-1280

Unavailable

92160B

DAMPER,METER

92160-1281

Unavailable

311

NUT-HEX

311B0500

$0.47
