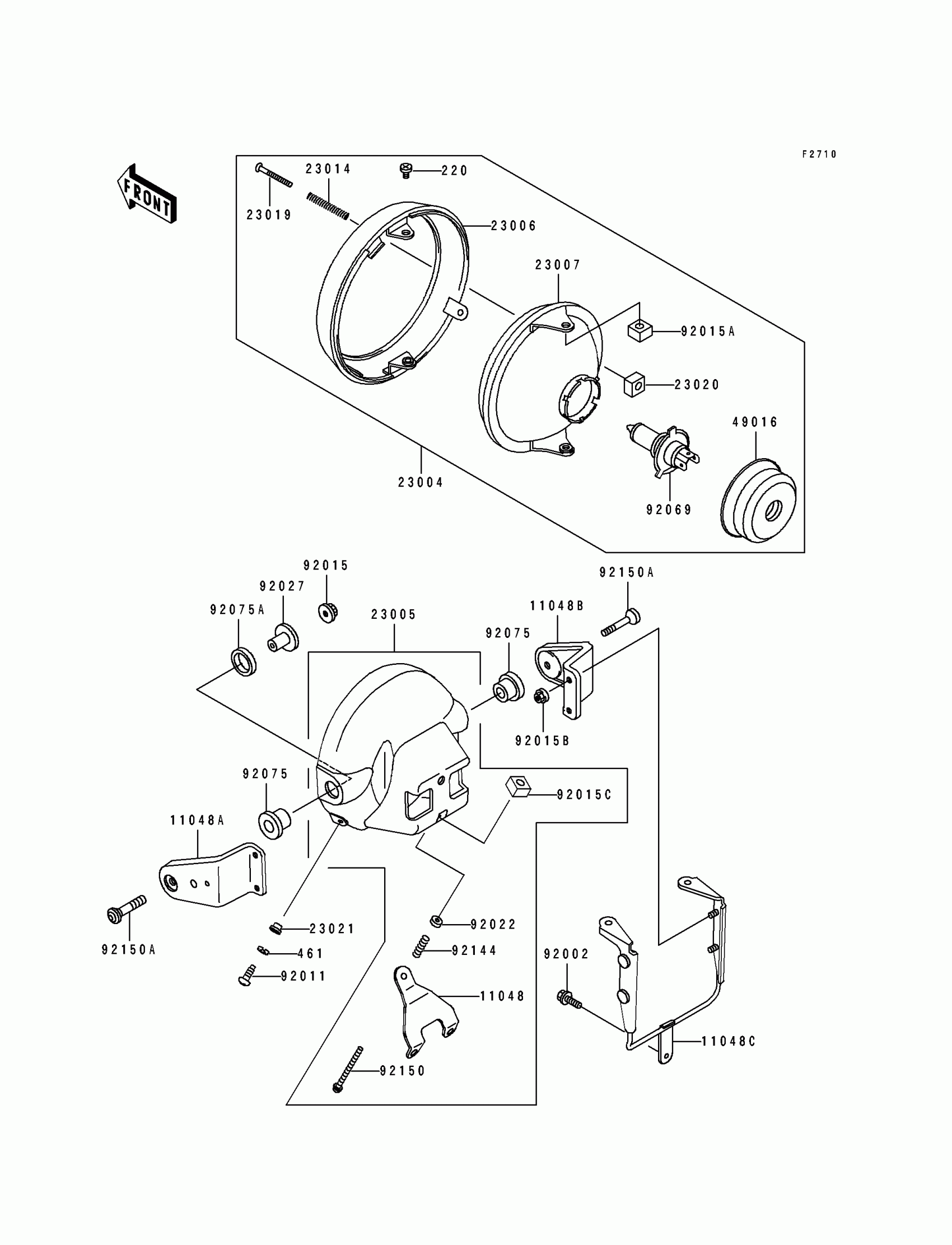

Kawasaki Eliminator 600 Headlight(s) Diagram

#

Description
Price

11048

BRACKET,HEAD LAMP BODY

11048-1406

Unavailable

11048A

BRACKET,HEAD LAMP,LH

11048-1407

Unavailable

11048B

BRACKET,HEAD LAMP,RH

11048-1408

Unavailable

11048C

BRACKET,HEAD LAMP

11048-1409

Unavailable

23004

LAMP-HEAD

23004-1275

Unavailable

23005

BODY-COMP-HEAD LAMP

23005-1144

$130.13

23006

RIM-LAMP,CR PLATED

23006-1020

$64.69

23007

LENS-COMP,HEAD LAMP

23007-1224

$155.50

23014

SPRING,FOCUS ADJUSTING

23014-005

$3.62

23019

SCREW,FOCUS ADJUSTING

23019-021

$4.69

23020

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

23021

WASHER

23021-010

$4.31

49016

COVER-SEAL,HEAD LAMP

49016-1046

$12.40

92002

BOLT

92002-1626

$4.44

92011

SCREW,5MM

92011-024

$2.58

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92015A

NUT,5MM

92015-1157

$4.87

92015B

NUT,CAP,6MM,BLACK

92015-1170

$0.64

92015C

NUT,5MM,FOCUS ADJUST

92015-1799

$4.34

92022

WASHER,5.2X13X1

92022-1380

$4.31

92027

COLLAR,L=20

92027-1131

$8.94

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92075

DAMPER,HEAD LAMP FITTING

92075-1109

$6.22

92075A

DAMPER,HEAD LAMP FITTING

92075-1110

$5.00

92144

SPRING

92144-1417

$4.61

92150

BOLT,ADJUST,5X45

92150-1590

$6.50

92150A

BOLT,SOCKET,8X40

92150-1735

$13.07

220

SCREW-PAN-CROS,5X10

220D0510

Unavailable

461

WASHER SPRING 5MM

461F0500

$0.69
