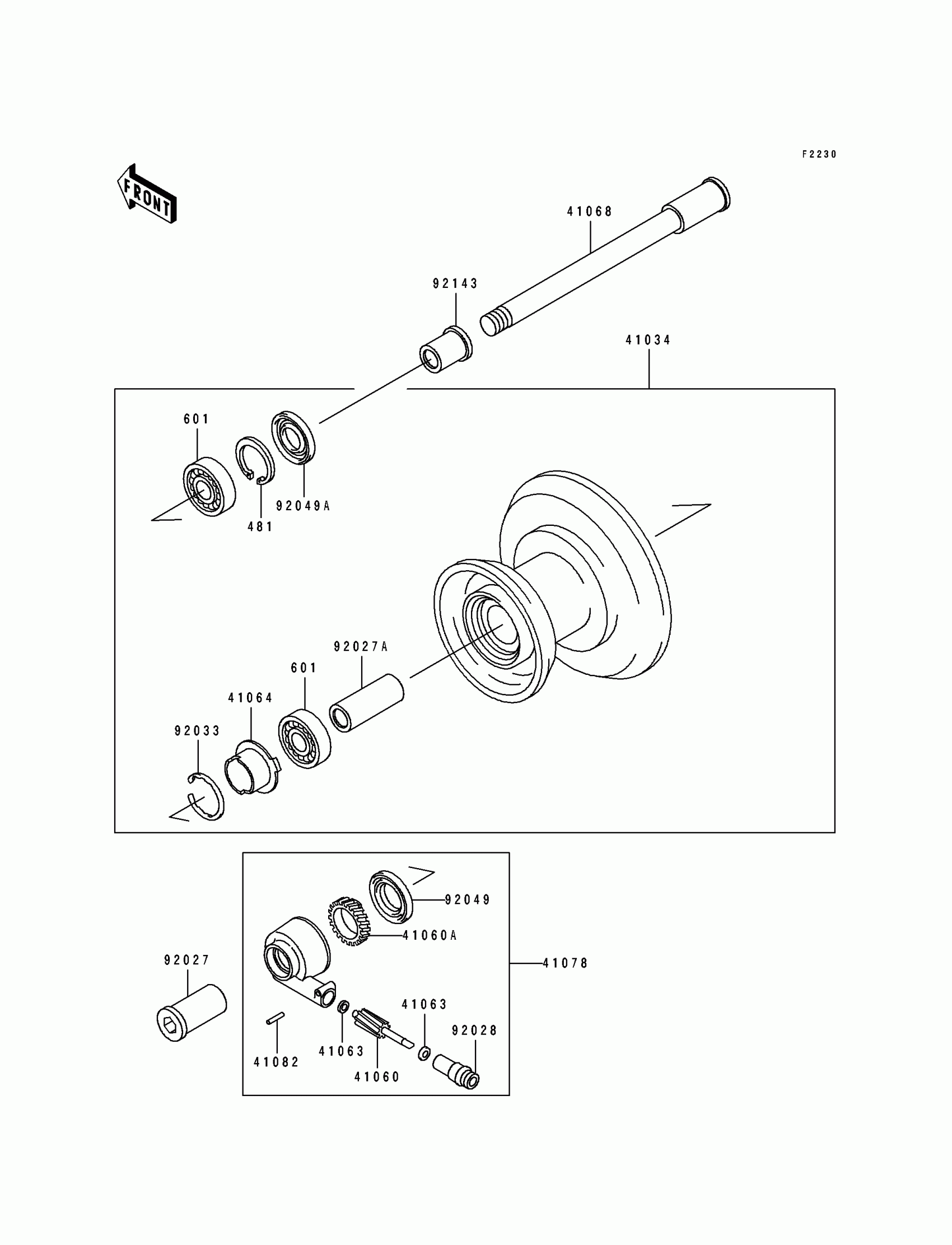

Kawasaki Eliminator 600 Front Wheel Diagram

Description

Price

41034

DRUM-ASSY,FRONT BRAKE

41034-1251

Unavailable

41060

GEAR-METER SCREW,9T

41060-1123

$20.35

41060A

GEAR-METER SCREW,25T

41060-1151

$21.74

41063

WASHER,5.1X9X0.4

41063-001

$4.69

41064

RECEIVER-SPEEDOMETER

41064-1006

$14.92

41068

AXLE,FR

41068-1175

$73.47

41078

CASE-ASSY-METER GEAR

41078-1102

Unavailable

41082

PIN,SPRING

41082-001

$3.92

92027

COLLAR,FR AXLE,L=36.5

92027-1726

$28.64

92027A

COLLAR,L=70

92027-1866

$22.30

92028

BUSHING,SPEEDOMETER

92028-1066

$11.29

92033

RING-SNAP,42MM

92033-1041

$6.16

92049

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

92049A

SEAL-OIL,MH20354.5

92049-1176

$15.04

92143

COLLAR,FR AXLE,L=24

92143-1187

$19.28

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.96

601

BEARING-BALL,#6202UG

601B6202UG

$20.79
