Front Bevel Gear

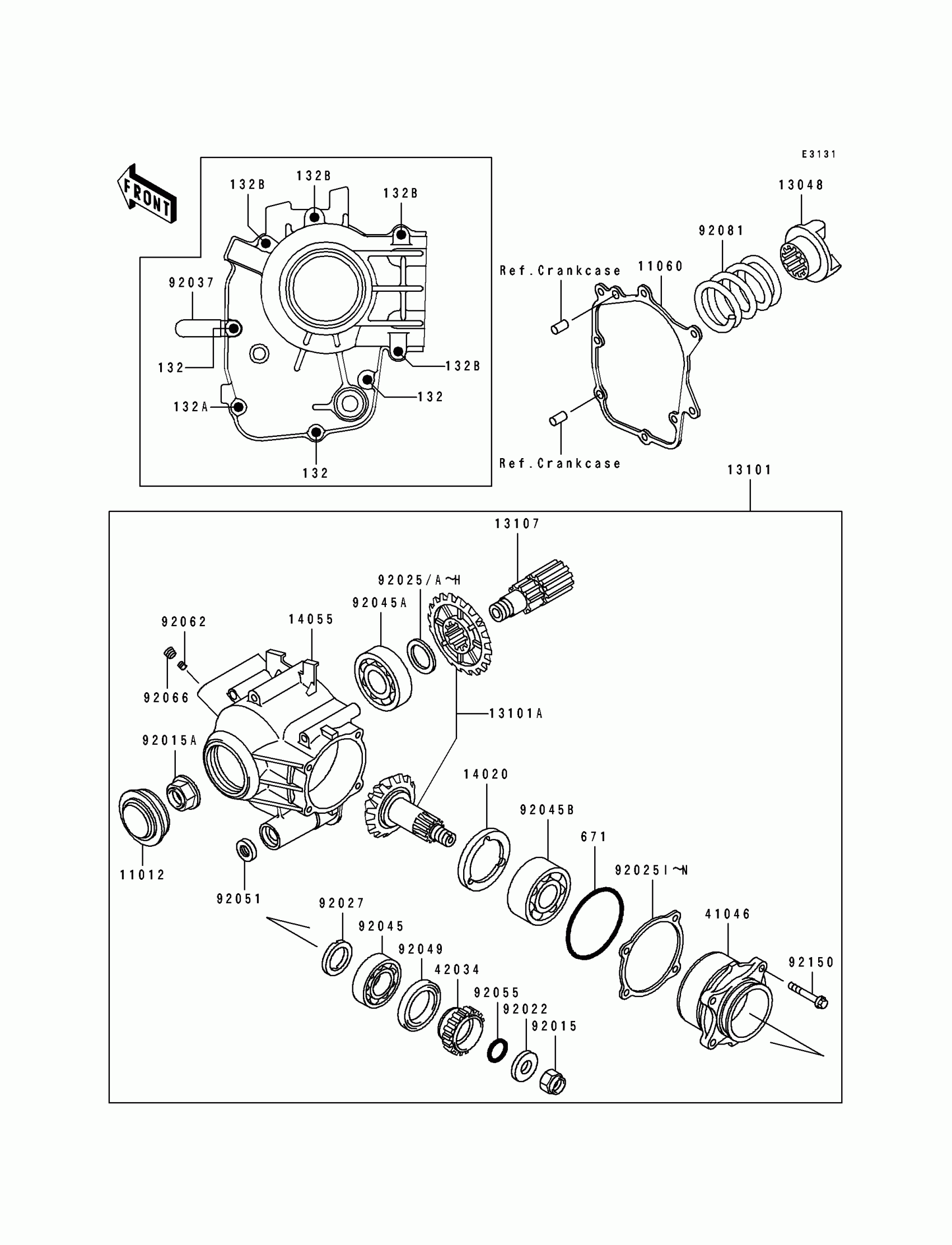

Kawasaki Eliminator 600 Front Bevel Gear Diagram
#
11012
CAP,FRONT BEVEL
11012-1672
$42.54
11060
GASKET,BEVEL GEAR CASE,FR
11060-1152
Unavailable
13048
CAM-DAMPER
13048-1068
Unavailable
13101
GEAR-ASSY,FRONT BEVEL
13101-1229
Unavailable
13101A
GEAR-ASSY,FRONT BEVEL
13101-5060
Unavailable
13107
SHAFT,BEVEL GEAR
13107-1178
Unavailable
14020
RETAINER
14020-1065
Unavailable
14055
CASE-GEAR,FRONT BEVEL
14055-1118
Unavailable
41046
HOUSING-BEARING,FRONT BEVEL
41046-1096
Unavailable
42034
COUPLING,FR DRIVEN
42034-1091
$127.52
92015
NUT,LOCK,14MM
92015-1067
$9.89
92015A
NUT
92015-1543
$19.66
92022
WASHER,14.1X31X5
92022-1115
$11.91
92025
SHIM,25.3X36X0.15
92025-1688
Unavailable
92025A
SHIM,25.3X36X0.50
92025-1689
Unavailable
92025B
SHIM,25.3X36X0.60
92025-1690
Unavailable
92025C
SHIM,25.3X36X0.70
92025-1691
Unavailable
92025D
SHIM,25.3X36X0.80
92025-1692
Unavailable
92025E
SHIM,25.3X36X0.90
92025-1693
Unavailable
92025F
SHIM,25.3X36X1.00
92025-1694
Unavailable
92025G
SHIM,25.3X36X1.10
92025-1695
Unavailable
92025H
SHIM,25.3X36X1.20
92025-1696
Unavailable
92025I
SHIM,T=0.10
92025-1772
Unavailable
92025J
SHIM,T=0.15
92025-1773
Unavailable
92025K
SHIM,T=0.70
92025-1774
Unavailable
92025L
SHIM,T=0.80
92025-1775
Unavailable
92025M
SHIM,T=1.00
92025-1776
Unavailable
92025N
SHIM,T=1.20
92025-1777
Unavailable
92027
COLLAR
92027-1994
$20.38
92037
CLAMP,L=45
92037-1539
$5.00
92045
BEARING-BALL,6205
92045-1115
$25.87
92045A
BEARING-BALL,TMB305
92045-1137
$49.59
92045B
BEARING-BALL,5305SH2CD2
92045-1147
$98.43
92049
SEAL-OIL,TC35527
92049-1038
$17.95
92051
SEAL-OIL,TB13225.5
92051-005
$7.74
92055
RING-O,ID=18.64
92055-1044
$4.78
92062
NOZZLE,6X8,BLACK
92062-1079
$8.58
92066
PLUG,PT1/8X7
92066-1227
$5.90
92081
SPRING,CAM DAMPER
92081-1981
Unavailable
92150
BOLT,6X25
92150-1777
Unavailable
132
BOLT-FLANGED-SMALL,6X25
132E0625
$1.13
132A
BOLT-FLANGED-SMALL,6X40
132E0640
$5.91
132B
BOLT-FLANGED-SMALL
132E0685
$3.76
671
O RING,70MM
671B2570
$7.62
