Drive Shaft/Final Gear

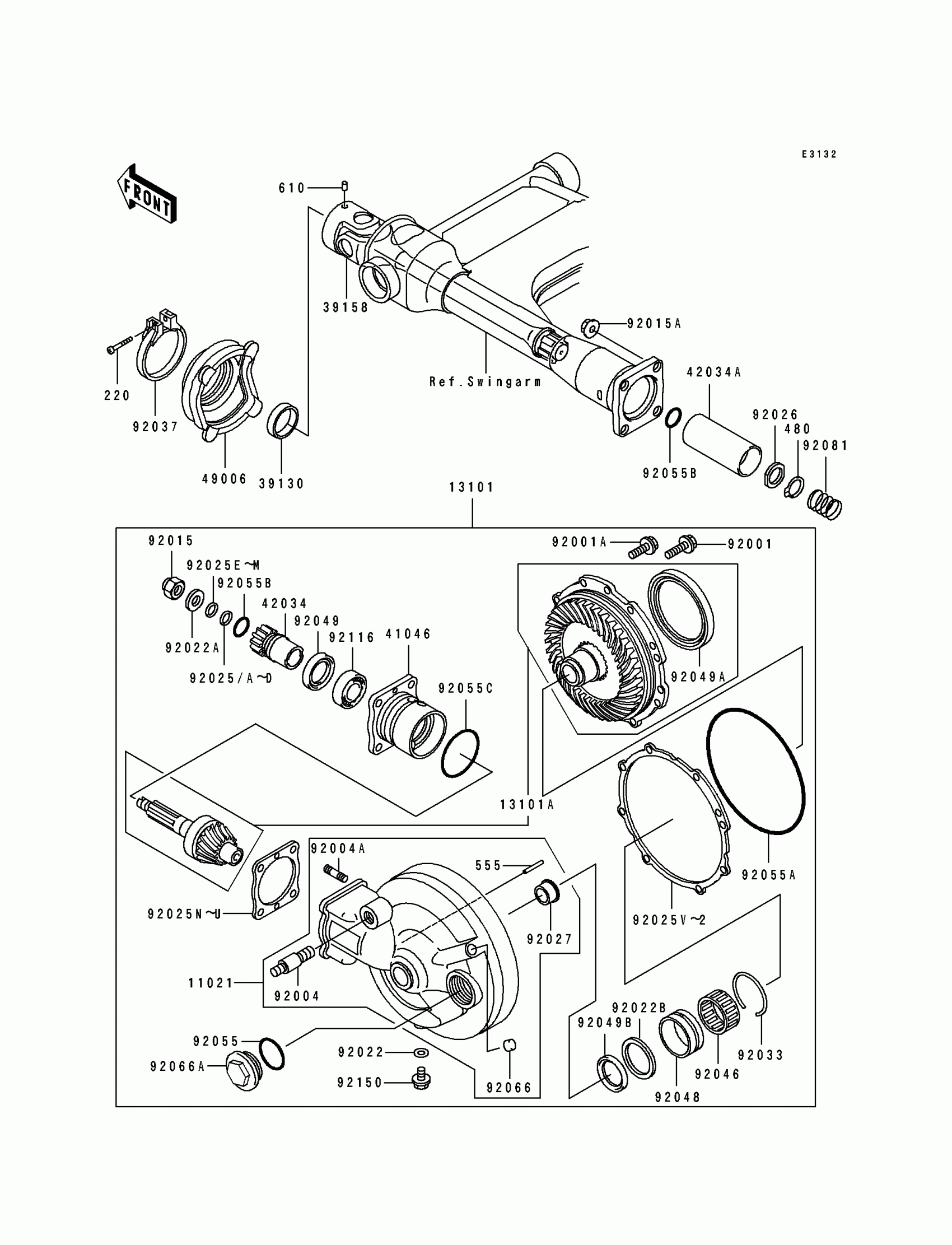

Kawasaki Eliminator 600 Drive Shaft/Final Gear Diagram
#
11021
CASE-ASSY,FINAL GEAR
11021-1105
Unavailable
13101
GEAR-ASSY,FINAL
13101-1214
Unavailable
13101A
GEAR-ASSY,FINAL BEVEL
13101-5035
Unavailable
39130
SPRING-LEAF
39130-1002
$4.65
39158
SHAFT-ASSY-DRIVE
39158-1060
$334.90
41046
HOUSING-BEARING,FINAL GEAR
41046-1097
Unavailable
42034
COUPLING,DRIVE SHAFT,INNER
42034-1030
Unavailable
42034A
COUPLING,DRIVE SHAFT,OUTER
42034-1031
$120.80
49006
BOOT,PROPELLER SHAFT
49006-1059
$39.05
92001
BOLT,FLANGED,8X28
92001-1095
$6.57
92001A
BOLT,FLANGED,8X25
92001-1324
$5.17
92004
STUD,RR SHOCKABSORBER
92004-1047
$15.74
92004A
STUD,8X30,BLACK
92004-1126
Unavailable
92015
NUT,12MM
92015-1182
$7.83
92015A
NUT,8MM
92015-1936
$5.24
92022
WASHER,8.2X16X1
92022-1086
$3.92
92022A
WASHER,12.3X25X3.2
92022-1293
$6.61
92022B
WASHER,39X49.5X1
92022-1294
$7.24
92025
SHIM,12.5X17X1.30
92025-1282
Unavailable
92025A
SHIM,12.5X17X1.32
92025-1283
Unavailable
92025B
SHIM,12.5X17X1.34
92025-1284
Unavailable
92025C
SHIM,12.5X17X1.36
92025-1285
Unavailable
92025D
SHIM,12.5X17X1.38
92025-1286
Unavailable
92025E
SHIM,12.5X17X0.1
92025-1287
Unavailable
92025F
SHIM,12.5X17X0.2
92025-1288
Unavailable
92025G
SHIM,12.5X17X0.3
92025-1289
Unavailable
92025H
SHIM,12.5X17X0.5
92025-1290
Unavailable
92025I
SHIM,12.5X17X0.6
92025-1291
Unavailable
92025J
SHIM,12.5X17X0.7
92025-1292
Unavailable
92025K
SHIM,12.5X17X0.8
92025-1293
Unavailable
92025L
SHIM,12.5X17X0.9
92025-1294
Unavailable
92025M
SHIM,12.5X17X1.0
92025-1295
Unavailable
92025N
SHIM,T=0.15
92025-1312
Unavailable
92025O
SHIM,T=0.5
92025-1313
Unavailable
92025P
SHIM,T=0.6
92025-1314
Unavailable
92025Q
SHIM,T=0.7
92025-1315
Unavailable
92025R
SHIM,T=0.8
92025-1316
Unavailable
92025S
SHIM,T=0.9
92025-1317
Unavailable
92025T
SHIM,T=1.0
92025-1318
Unavailable
92025U
SHIM,T=1.2
92025-1319
Unavailable
92025V
SHIM,T=0.15
92025-1336
Unavailable
92025W
SHIM,T=0.5
92025-1337
Unavailable
92025X
SHIM,T=0.6
92025-1338
Unavailable
92025Y
SHIM,T=0.7
92025-1339
Unavailable
92025Z
SHIM,T=0.8
92025-1340
Unavailable
920250
SHIM,T=0.9
92025-1341
Unavailable
920251
SHIM,T=1.0
92025-1342
Unavailable
920252
SHIM,T=1.2
92025-1343
Unavailable
92026
SPACER,DRIVE SHAFT
92026-1106
Unavailable
92027
COLLAR
92027-1412
$33.67
92033
RING-SNAP,52MM
92033-1074
$4.65
92037
CLAMP,BOOT FITTING
92037-1112
$16.72
92046
BEARING-NEEDLE,KTV384620E01 C3
92046-1057
$61.34
92048
RACE,ORT465021E01
92048-1019
$44.62
92049
SEAL-OIL,SC28438
92049-1084
$16.08
92049A
SEAL-OIL,SC759510
92049-1085
$38.66
92049B
SEAL-OIL,SC32435.5
92049-1155
$19.64
92055
RING-O,36MM
92055-1005
$6.16
92055A
RING-O,ID=150.4
92055-1039
$15.65
92055B
RING-O,27MM
92055-1119
$5.00
92055C
RING-O,55MM
92055-1120
$5.52
92066
PLUG
92066-1110
$6.51
92066A
PLUG,OIL FILTER CAP
92066-1402
Unavailable
92081
SPRING,DRIVE SHAFT
92081-1427
Unavailable
92116
BEARING-ROLLER,4T32004X
92116-1010
$40.55
92150
BOLT,8X12
92150-1780
$5.24
220
SCREW-PAN-CROS
220B0430
$0.77
480
CIRCLIP-TYPE-C,20MM
480J2000
$2.71
555
PIN-SPRING
555A0428
$2.30
610
ROLLER,4X6
610A0406
$4.31
