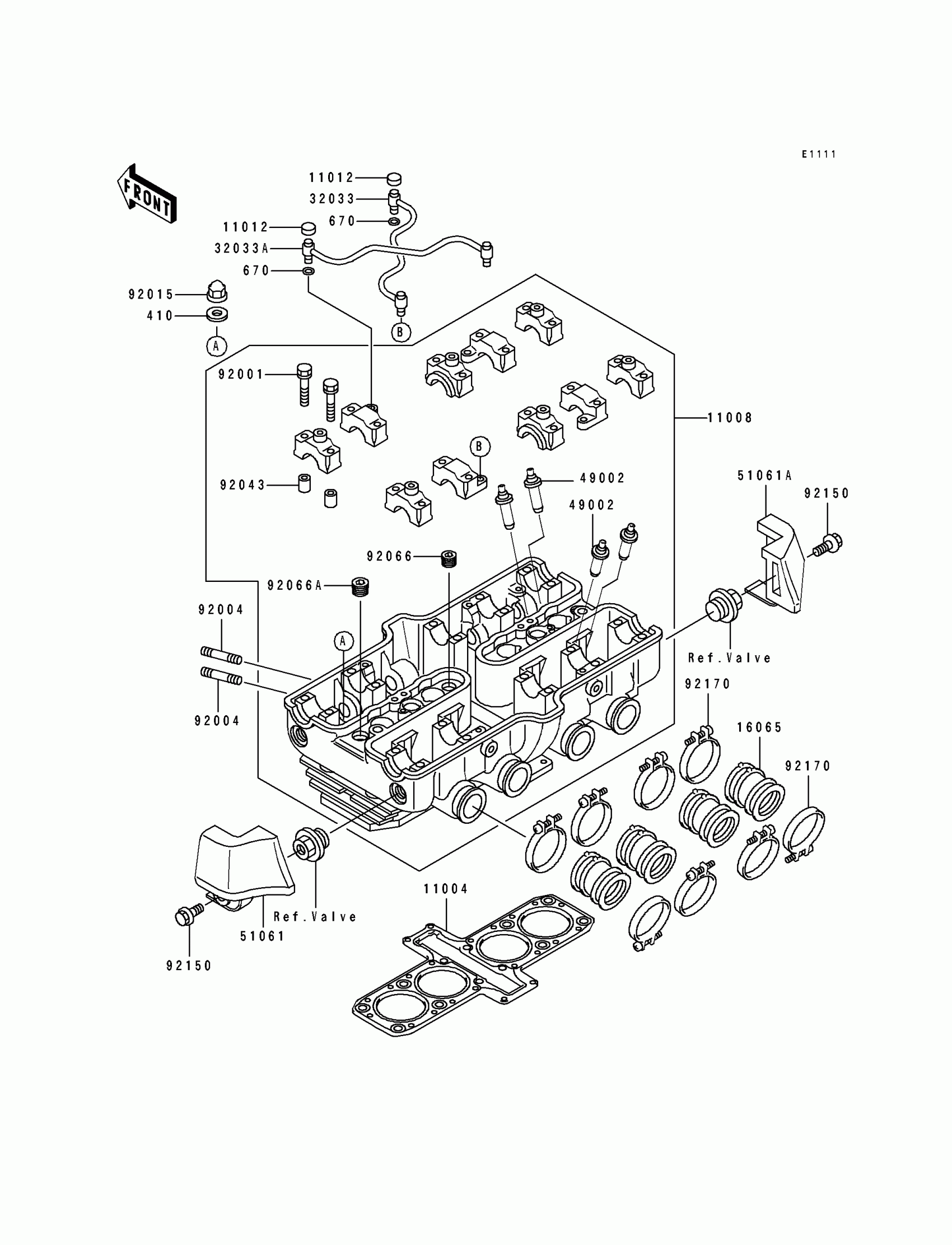

Kawasaki Eliminator 600 Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-1152

$102.84

11008

HEAD-COMP-CYLINDER

11008-1305

Unavailable

11012

CAP

11012-1491

$6.80

16065

HOLDER-CARBURETOR

16065-1142

$26.39

32033

PIPE

32033-1942

Unavailable

32033A

PIPE

32033-1943

Unavailable

49002

GUIDE-VALVE

49002-1060

Unavailable

51061

PAD-KNEE,HEAD,LH

51061-1053

$42.68

51061A

PAD-KNEE,HEAD,RH

51061-1054

$46.85

92001

BOLT,FLANGED,6X38

92001-1105

$4.69

92004

STUD,6X27

92004-1162

$5.18

92015

NUT,CAP,8MM

92015-1151

$5.00

92043

PIN,6.2X8X14

92043-1263

$0.43

92066

PLUG,PT3/8X12

92066-1252

$6.51

92066A

PLUG,PT1/2X12.5

92066-1253

$8.98

92150

BOLT,8X12

92150-1780

$5.24

92170

CLAMP

92170-1438

$8.98

410

WASHER PLAIN 8MM

410B0800

$0.93

670

O RING

670D1505

$4.31
