1997 Kawasaki Eliminator 600 Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 1997 Kawasaki Eliminator 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

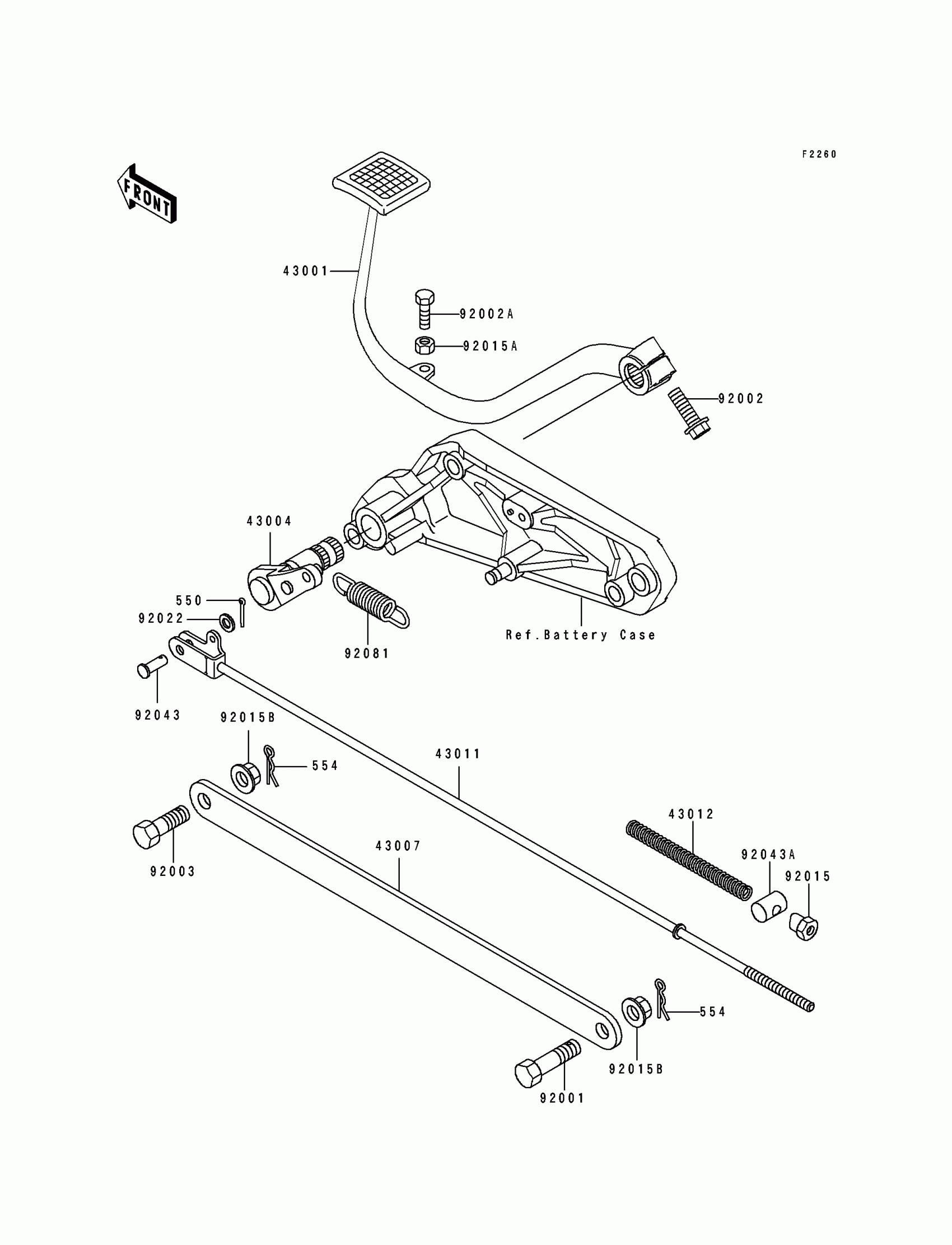

1997 Kawasaki Eliminator 600 Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE,PEDAL

43001-1206

1
Out of stock

43004

SHAFT-BRAKE

43004-1116

1
Out of stock

43007

ROD-TORQUE

43007-1176

1
Out of stock

43011

ROD-BRAKE

43011-1162

1
Out of stock

43012

SPRING,BRAKE ROD

43012-001

1
Out of stock

92001

BOLT,10X37

92001-1519

1
Out of stock

92002

BOLT,FLANGED,8X25

92002-1201

1
Out of stock

92002A

BOLT,6X20

92002-1373

1
Out of stock

92003

BOLT,10X29

92003-096

1
Out of stock

92015

NUT,BRAKE ROD

92015-042

1
Out of stock

92015A

NUT,6MM

92015-1391

1
Out of stock

92015B

NUT,FLANGED,10MM

92015-1428

1
Out of stock

92022

WASHER,6.5X11.5X0.8

92022-1556

1
Out of stock

92043

PIN,6X17

92043-064

1
Out of stock

92043A

PIN,BRAKE ROD

92043-065

1
Out of stock

92081

SPRING,SIDE STAND,BLACK

92081-1561

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

554

PIN-SNAP,8MM

554A0800

1
Out of stock
