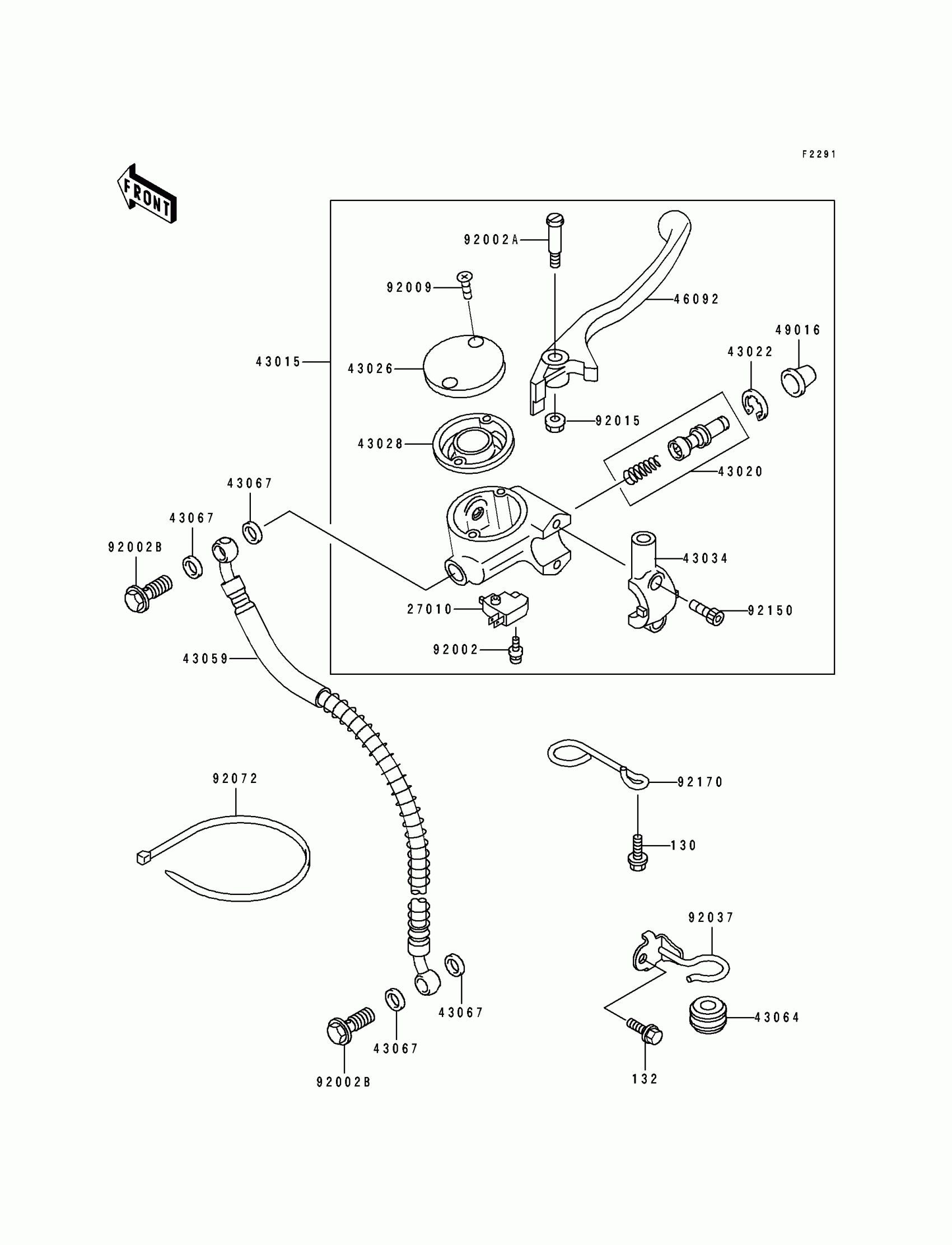

Kawasaki Eliminator 600 Front Master Cylinder Diagram

Description

Price

27010

SWITCH,BRAKE

27010-1170

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-1557

$391.10

43020

PISTON-COMP-BRAKE

43020-1098

$52.23

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE,SILVER

43026-1078

$65.13

43028

DIAPHRAGM,MASTER CYLINDER

43028-1071

$19.65

43034

HOLDER-BRAKE,SILVER

43034-1102

$46.96

43059

HOSE-BRAKE,FR

43059-1788

$92.63

43064

GROMMET,HOSE CLAMP

43064-006

$3.29

43067

WASHER,10.5X15X1.5

43067-001

$1.57

46092

LEVER-GRIP,FRONT BRAKE

46092-1172

$32.95

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92002

BOLT,SCREW,4X12

92002-1323

$2.99

92002A

BOLT,LEVER SET

92002-1561

$11.22

92002B

BOLT,OIL,L=23

92002-1888

$4.15

92009

SCREW,5MM

92009-1440

$3.14

92015

NUT,FLANGED,6MM

92015-1528

$4.18

92037

CLAMP,BRAKE HOSE,RH

92037-1703

$24.10

92072

BAND,L=365

92072-1197

$7.71

92150

BOLT,SOCKET,6MM

92150-1025

$7.56

92170

CLAMP,BRAKE HOSE

92170-1458

Unavailable

130

BOLT-FLANGED,6X12

130H0612

Unavailable

132

BOLT-FLANGED-SMALL,6X10

132E0610

$3.57
