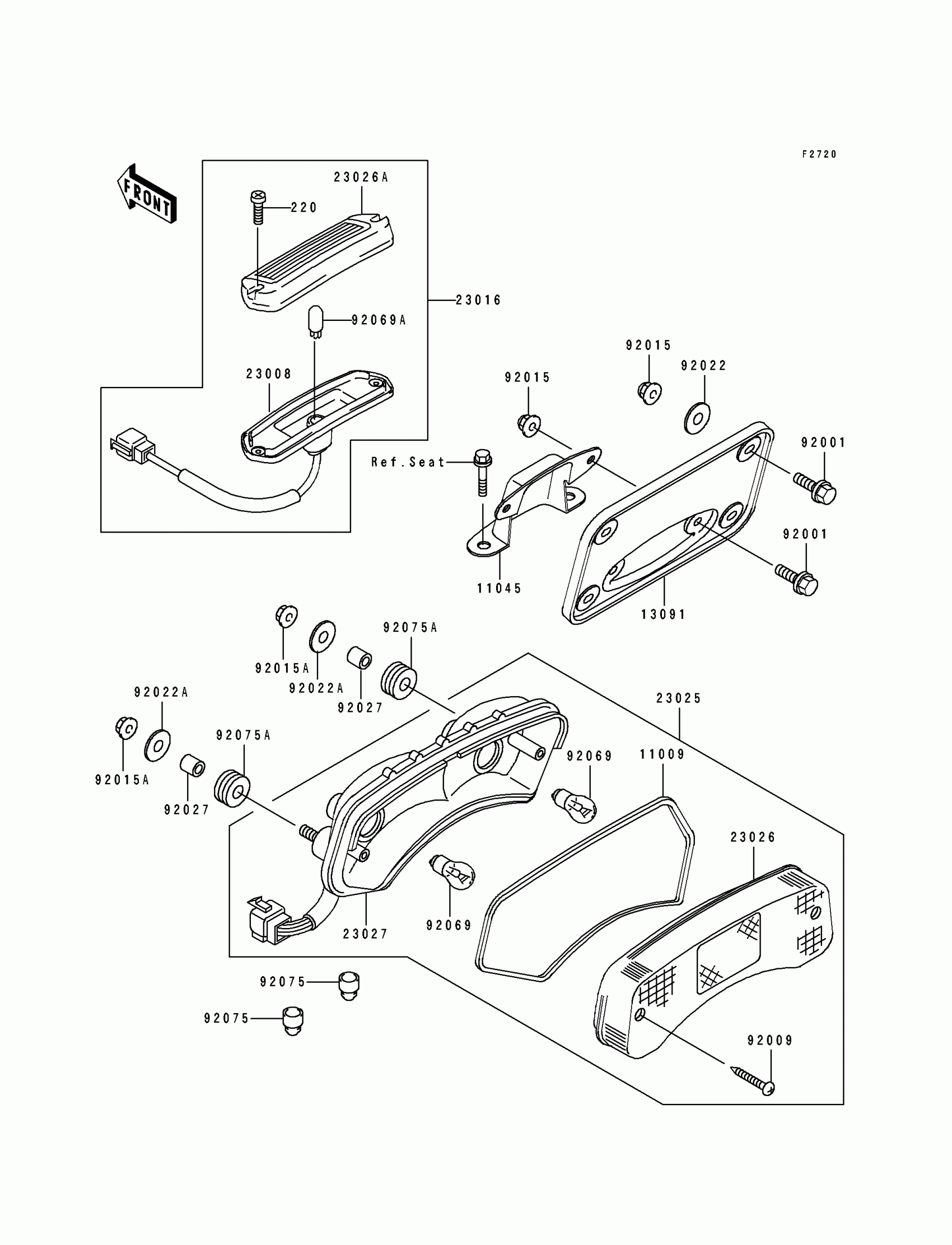

Kawasaki Eliminator 250 Taillight(s) Diagram

Description

Price

11009

GASKET,TAIL LAMP LENS

11009-1524

$7.24

11045

BRACKET,LICENSE PLATE

11045-1797

Unavailable

13091

HOLDER,LICENSE PLATE

13091-1500

$26.23

23008

SOCKET-ASSY,LICENSE LAMP

23008-1348

$17.11

23016

LAMP-ASSY,LICENSE

23016-1091

$42.39

23025

LAMP-TAIL

23025-1123

Unavailable

23026

LENS,TAIL LAMP

23026-1068

Unavailable

23026A

LENS,LICENSE LAMP

23026-1069

$18.66

23027

BODY-COMP-TAIL LAMP

23027-1062

Unavailable

92001

BOLT,6X16

92001-1950

$4.31

92009

SCREW,TAPPING,4X30

92009-1056

$4.38

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.64

92015A

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92022A

WASHER,6.5X20X1.6

92022-1557

$1.40

92027

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 27/8W

92069-059

$8.12

92069A

BULB,12V 3.4W,T10

92069-1007

$5.00

92075

DAMPER

92075-035

$4.60

92075A

DAMPER,10X24X12

92075-1690

$5.00

220

SCREW-PAN-CROS,4X20

220C0420

$0.94
