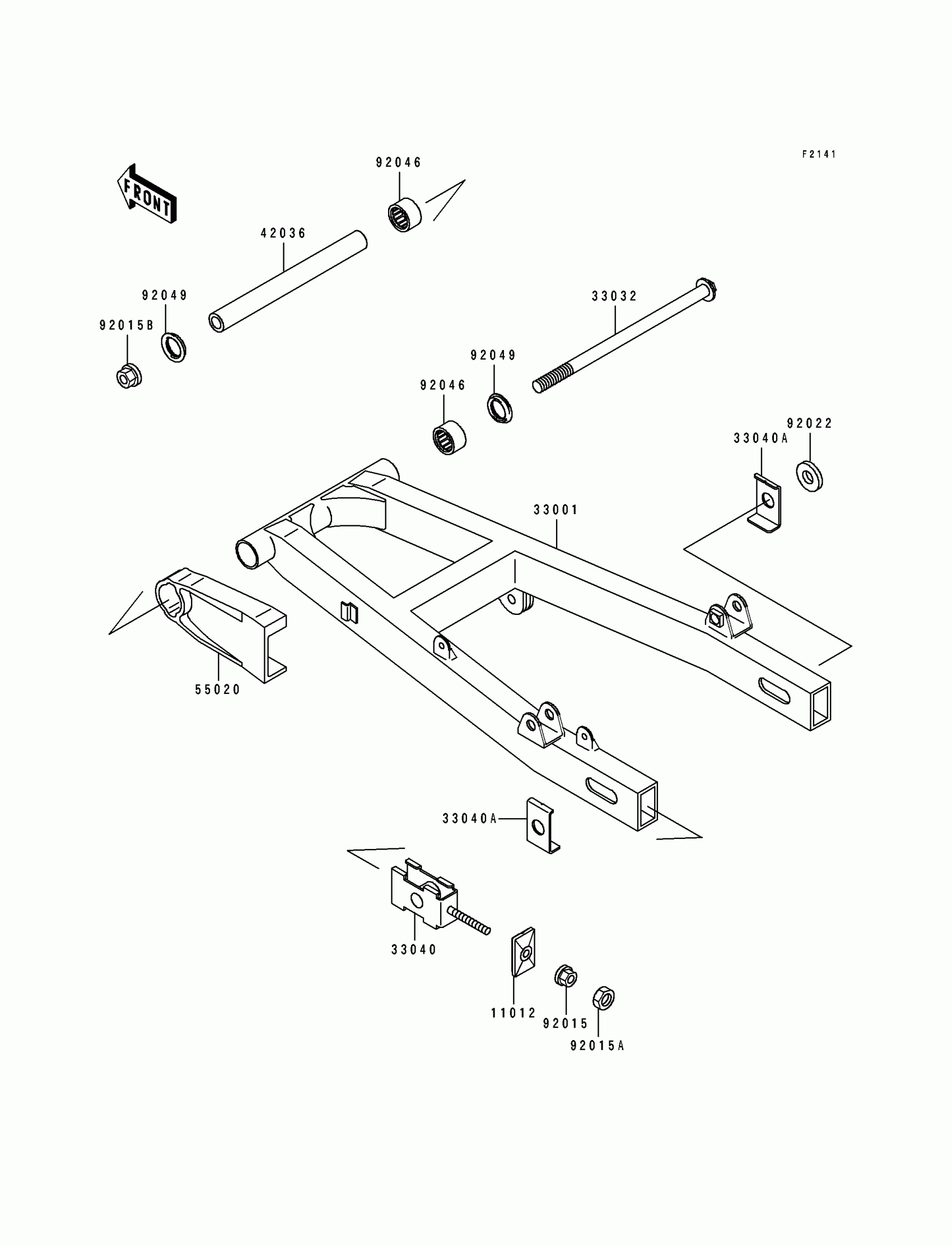

Kawasaki Eliminator 250 Swingarm Diagram

Description

Price

11012

CAP,CHAIN ADJUSTER

11012-1596

Unavailable

33001

ARM-COMP-SWING,SILVER NO.25

33001-1298-CE

$367.98

33032

SHAFT-SWING ARM

33032-1109

$67.40

33040

ADJUSTER-CHAIN,INSIDE

33040-1079

Unavailable

33040A

ADJUSTER-CHAIN,OUTSIDE

33040-1125

$7.54

42036

SLEEVE,14.1X22X220

42036-1212

$68.02

55020

GUARD,CHAIN

55020-1218

$51.90

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,8MM

92015-1364

$3.92

92015B

NUT,14MM

92015-1407

$9.91

92022

WASHER,17.5X34X2.0

92022-1916

$4.69

92046

BEARING-NEEDLE,TA2230Z

92046-1174

$36.90

92049

SEAL-OIL,MHA22X29X5.7F

92049-1289

$8.86
