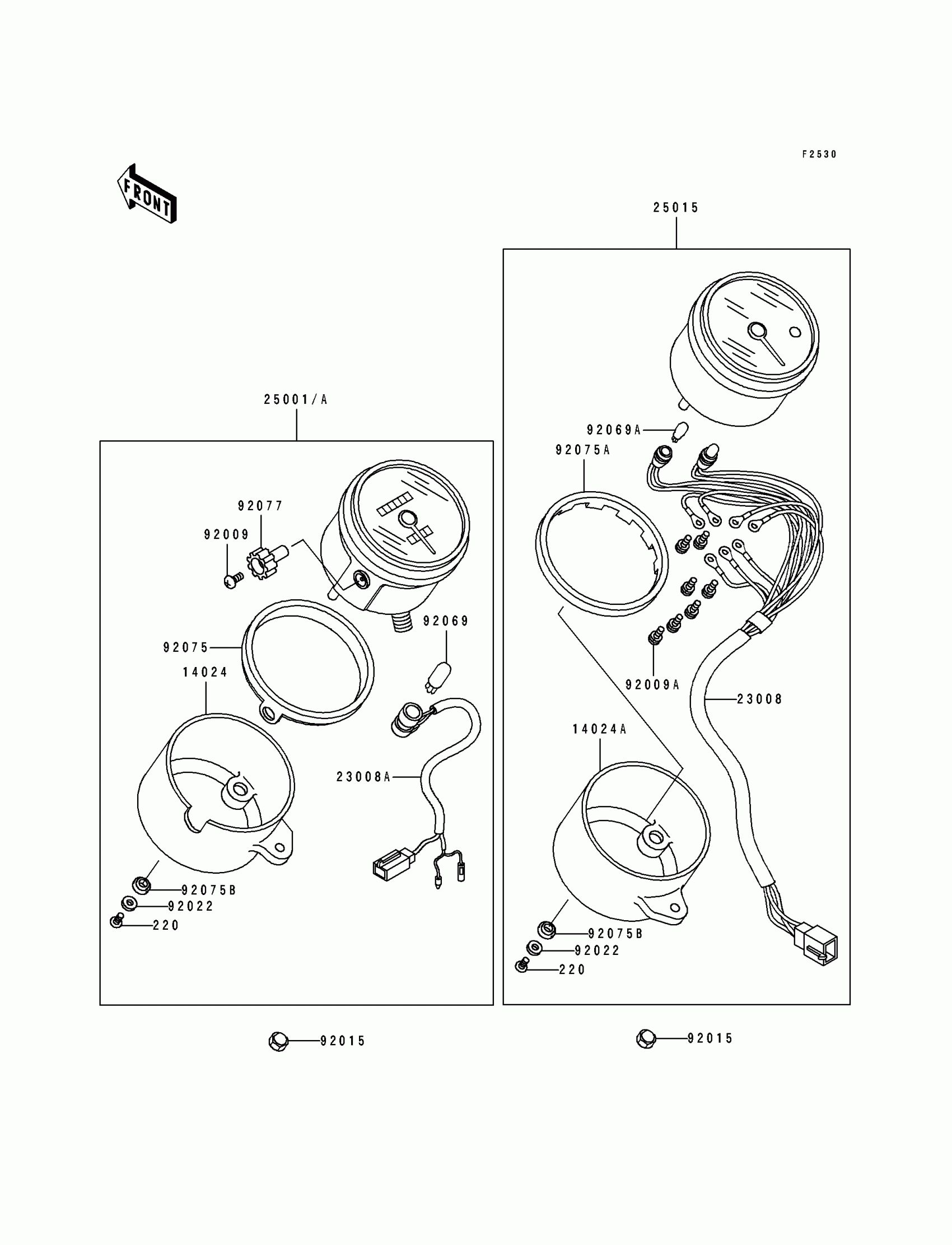

Kawasaki Eliminator 250 Meter(s) Diagram

Description

Price

14024

COVER,SPEEDOMETER

14024-1096

Unavailable

14024A

COVER,TACHOMETER

14024-1097

Unavailable

23008

SOCKET-ASSY,TACHOMETER

23008-1280

$51.55

23008A

SOCKET-ASSY,SPEEDOMETER

23008-1356

$21.55

25001A

METER-ASSY,SPEED,KPH

25001-1731

Unavailable

25015

TACHOMETER,X1000R/MIN

25015-1273

Unavailable

92009

SCREW,2X6,BLACK

92009-1172

$2.61

92009A

SCREW,3X12

92009-1406

Unavailable

92015

NUT,CAP,6MM

92015-1385

$4.31

92022

WASHER,4.5X10X0.8

92022-1822

$4.80

92069

BULB,12V 3.4W,T10

92069-1007

$5.00

92069A

BULB,12V 3W,T7

92069-1020

$6.52

92075

DAMPER,SHOCK,METER

92075-1751

$15.65

92075A

DAMPER,SHOCK,METER

92075-1752

Unavailable

92075B

DAMPER,METER FITTING

92075-1753

$5.96

92077

KNOB,METER

92077-1059

$7.46

220

SCREW-PAN-CROS,4X8

220E0408

$3.30
