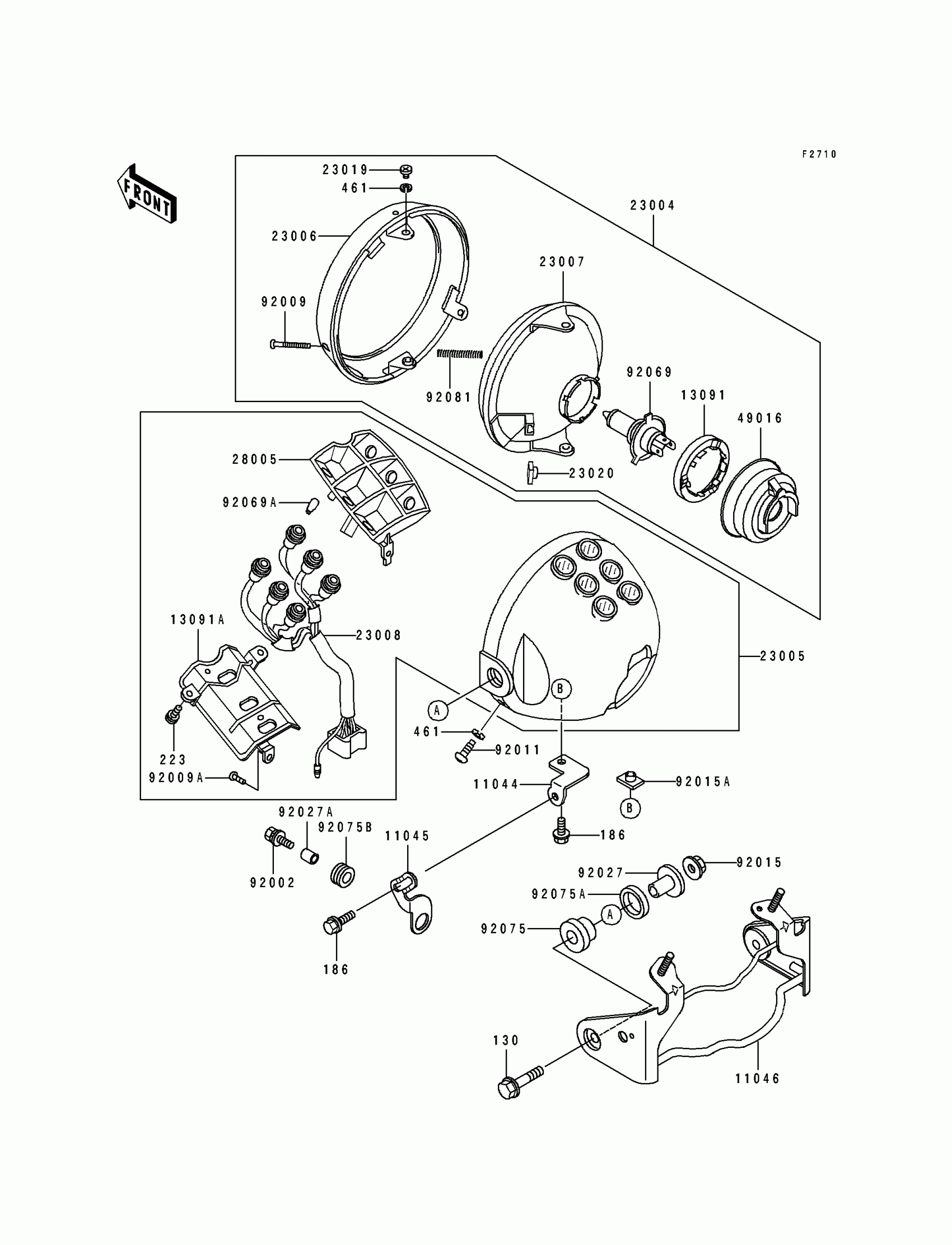

Kawasaki Eliminator 250 Headlight(s) Diagram

#

Description
Price

11044

BRACKET,HEAD LAMP,LWR

11044-1915

Unavailable

11045

BRACKET,HEAD LAMP,LWR

11045-1789

Unavailable

11046

BRACKET,HEAD LAMP STAY

11046-1761

Unavailable

13091

HOLDER,HEAD LAMP SOCKET

13091-1386

Unavailable

13091A

HOLDER,HEAD LAMP

13091-1387

Unavailable

23004

LAMP-HEAD

23004-1188

$246.43

23005

BODY-COMP-HEAD LAMP,EBONY

23005-1076-H8

$228.98

23006

RIM-LAMP

23006-1057

$58.71

23007

LENS-COMP,HEAD LAMP

23007-1136

Unavailable

23008

SOCKET-ASSY,HEAD LAMP

23008-1316

$75.70

23019

SCREW,LENS FITTING

23019-031

Unavailable

23020

NUT,ADJUSTING

23020-012

$3.91

28005

BODY-LAMP,INDICATOR

28005-1053

$25.92

49016

COVER-SEAL,HEAD LAMP SOCKET

49016-1110

Unavailable

92002

BOLT,6X25

92002-1137

$4.39

92009

SCREW,FOCUS ADJUST

92009-1394

Unavailable

92009A

SCREW,TAPPING,4X12

92009-1395

$4.65

92011

SCREW,5MM

92011-024

$2.58

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92015A

NUT,6MM,HEAD LAMP

92015-1231

Unavailable

92027

COLLAR,L=20

92027-1131

$8.94

92027A

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92069A

BULB,12V 3W,T7

92069-1020

$6.52

92075

DAMPER,HEAD LAMP FITTING

92075-1109

$6.22

92075A

DAMPER,HEAD LAMP FITTING

92075-1110

$5.00

92075B

DAMPER RUBBER,RR FENR

92075-209

$4.69

92081

SPRING,FOCUS ADJUST

92081-1892

Unavailable

130

BOLT-FLANGED,8X40

130C0840

$2.93

186

BOLT-UPSET-WP,6X14

186C0614

Unavailable

223

SCREW-PAN-WS-CROS,4X10

223D0410

Unavailable

461

WASHER SPRING 5MM

461F0500

$0.69
