1991 Kawasaki Eliminator 250 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1991 Kawasaki Eliminator 250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

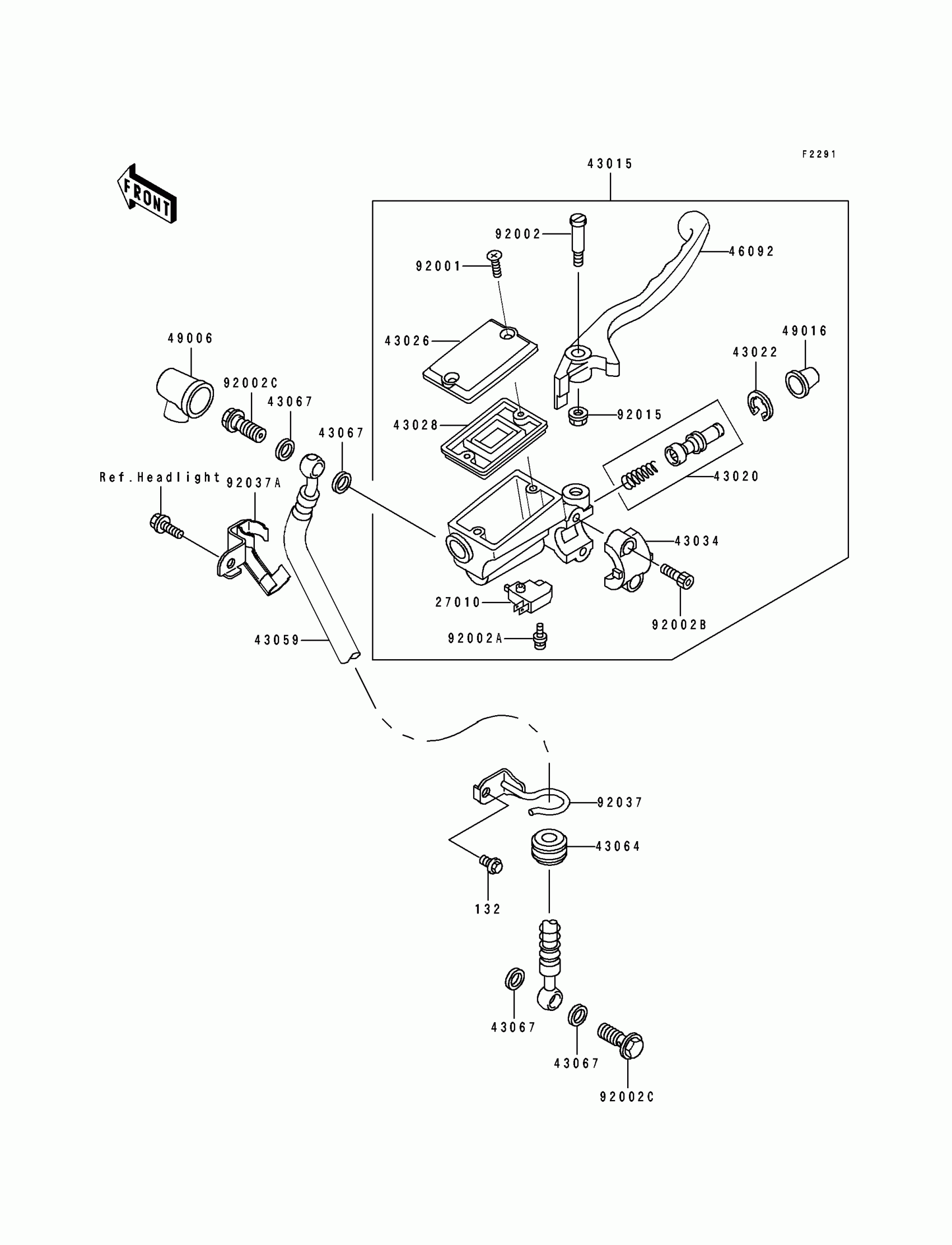

1991 Kawasaki Eliminator 250 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27010

SWITCH,BRAKE

27010-1170

1

$33.39

In stock

43015

1

$171.26

In stock

43020

PISTON-COMP-BRAKE

43020-1031

1

$52.23

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE,FR

43026-1055

1

$51.13

In stock

43028

1

$21.24

In stock

43034

1

$36.55

In stock

43059

HOSE-BRAKE,FR

43059-1423

1

$61.22

In stock

43064

GROMMET,HOSE CLAMP

43064-007

1

$4.37

In stock

43067

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

46092

1

$24.29

In stock

49006

BOOT,DUST

49006-1040

1

$9.11

In stock

49016

1

$6.90

In stock

92001

SCREW,5MM,BLACK

92001-1727

1

$3.27

In stock

92002

1

$9.29

In stock

92002A

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92002B

1

$7.54

In stock

92002C

BOLT,OIL,L=23

92002-1888

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92037

CLAMP,BRAKE HOSE

92037-1218

1

$21.22

In stock

92037A

CLAMP,HOSE

92037-1923

1

$12.27

In stock

132

1

$3.72

In stock
