1994 Kawasaki Eliminator 250 Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 1994 Kawasaki Eliminator 250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

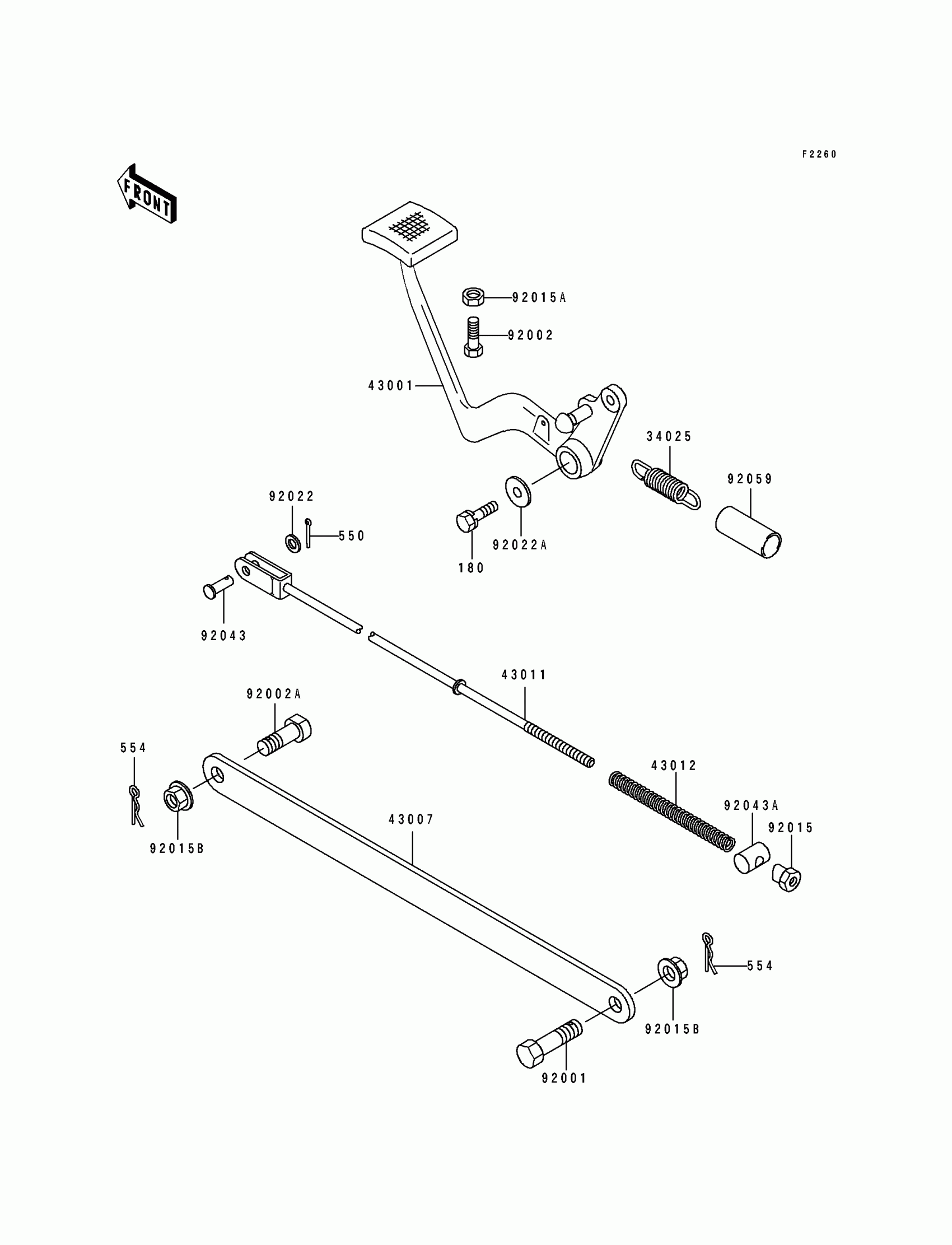

1994 Kawasaki Eliminator 250 Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34025

SPRING,SIDE STAND

34025-009

1
Out of stock

43001

LEVER-BRAKE,PEDAL

43001-1234

1
Out of stock

43007

ROD-TORQUE,RR

43007-1026

1
Out of stock

43011

ROD-BRAKE

43011-1141

1

$16.49

In stock

43012

SPRING,BRAKE ROD

43012-001

1

$3.69

In stock

92001

BOLT,10X37

92001-1519

1

$7.49

In stock

92002

BOLT,6X20

92002-1373

1

$3.92

In stock

92002A

BOLT,ROD,10X27

92002-1992

1
Out of stock

92015

NUT,BRAKE ROD

92015-042

1
Out of stock

92015A

NUT,6MM

92015-1391

1

$2.05

In stock

92015B

NUT,FLANGED,10MM

92015-1428

1

$3.97

In stock

92022

WASHER,6.5X11.5X0.8

92022-1556

1

$1.19

In stock

92022A

WASHER,6.5X20X1.6

92022-1557

1

$1.25

In stock

92043

PIN,6X17

92043-064

1

$3.72

In stock

92043A

PIN,BRAKE ROD

92043-065

1

$4.42

In stock

92059

TUBE,14X17X40

92059-1983

1

$4.02

In stock

180

BOLT-UPSET-WS,6X16

180D0616

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

554

PIN-SNAP,8MM

554A0800

1
Out of stock
