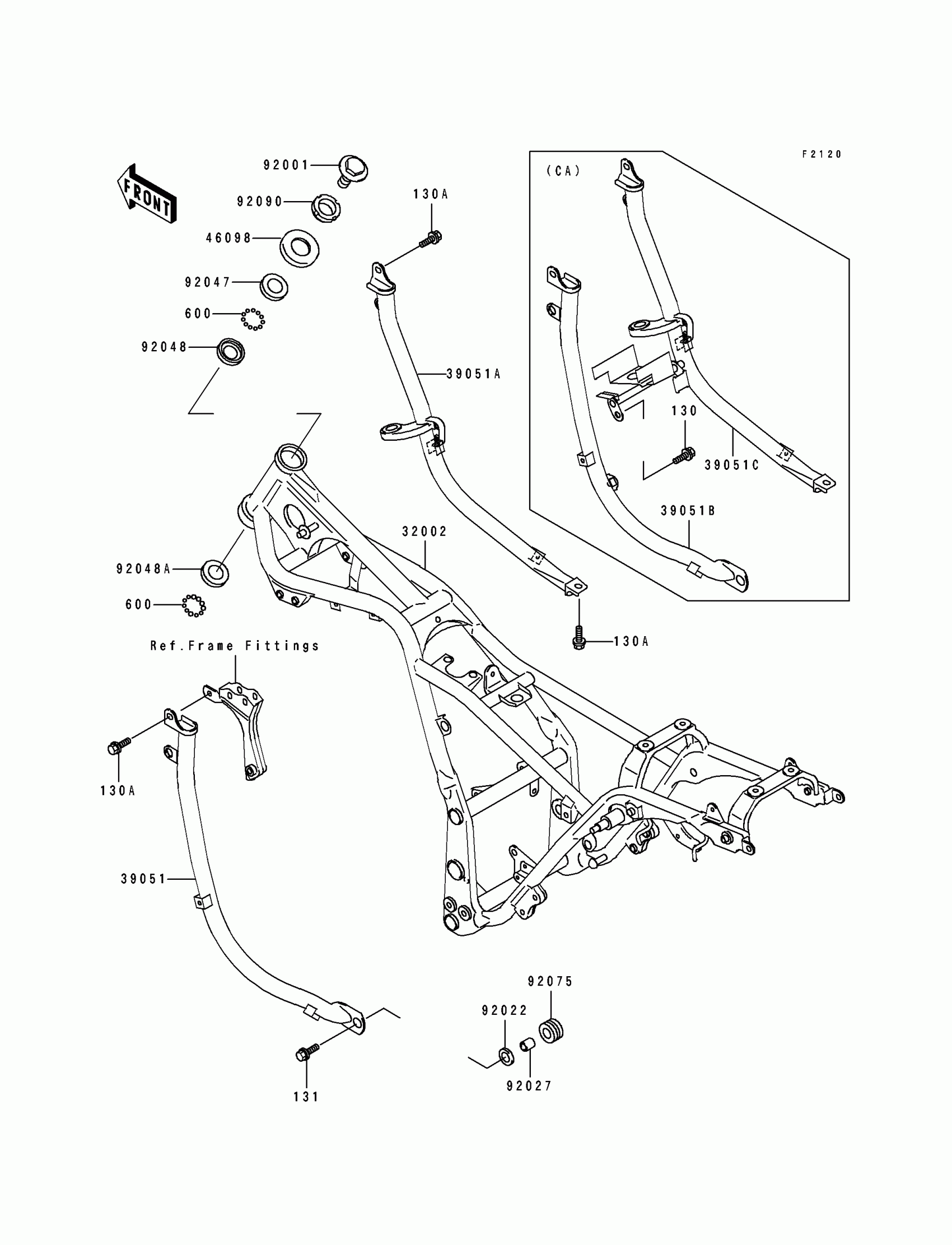

Kawasaki Eliminator 250 Frame Diagram

Description

Price

32002

FRAME-COMP

32002-1951

Unavailable

39051

FRAME-COMP-SIDE,LH

39051-1062

$86.00

39051A

FRAME-COMP-SIDE,RH

39051-1063

$102.02

46098

CAP,STEERING STEM

46098-016

$6.51

92001

BOLT,FLANGED,16X22

92001-1488

$22.30

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92027

COLLAR

92027-102

$1.08

92047

RACE,STEERING STEM BEARING

92047-011

$14.60

92048

RACE,STEERING STEM BEARING

92048-006

$11.61

92048A

RACE,STEERING STEM BEARING

92048-008

$16.02

92075

DAMPER

92075-1898

$4.69

92090

NUT,30MM

92090-007

$11.71

130A

BOLT-FLANGED,8X16,BLACK

130C0816

Unavailable

131

BOLT-FLANGED,8X25,BLACK

131J0825

Unavailable

600

BALL-STEEL,1/4

600A0800

$0.62
